ML3120, (AV3) VOGUE Auto Lock, Right Hand, 55mm Back Set, 20mm Face Plate, Square End, Size 1, Silver Finish

SKU: ML3120S-RH-55-1-SV

Available to Order




  • Vogue premium multipoint automatic door lock from Winkhaus.
  • Provides a contemporary look with the cylinder and central gearbox located approx halfway up the door.
  • Often used with a pull handle and thumbturn cylinder to create a contemporary 'slam shut' style door.
  • Innovative magnet only activates the anti 'push back' hook bolts once the door is closed, automatically locking the door and preventing damage to the door frame.
  • Dual hook bolts provide extra security and enhanced weathersealing.
  • Daylatch switch enables temporary release of the locking system for convenient access without a key - e.g. when carrying shopping in from the car.
  • Tested to PAS24 and Secured by Design Approved.

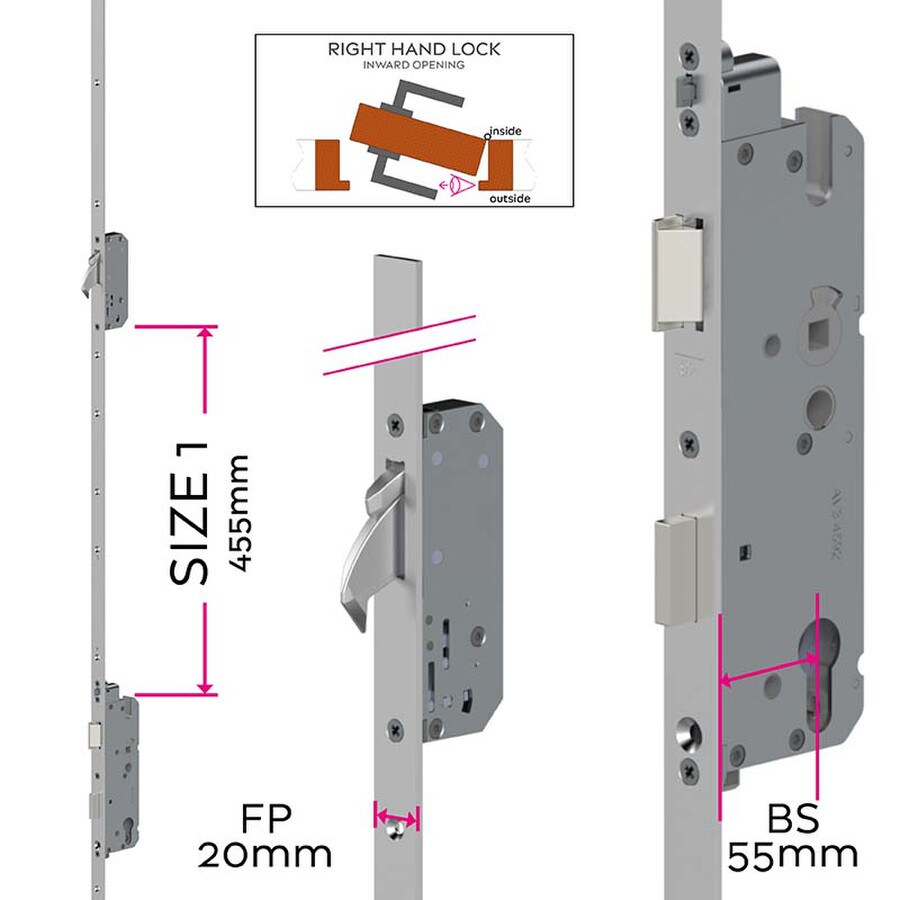

  • Handing:Right Hand
  • Backset:55mm
  • Length:2105mm
  • Faceplate:20mm Square End
  • Top Box Height:Size 1 (455mm)
