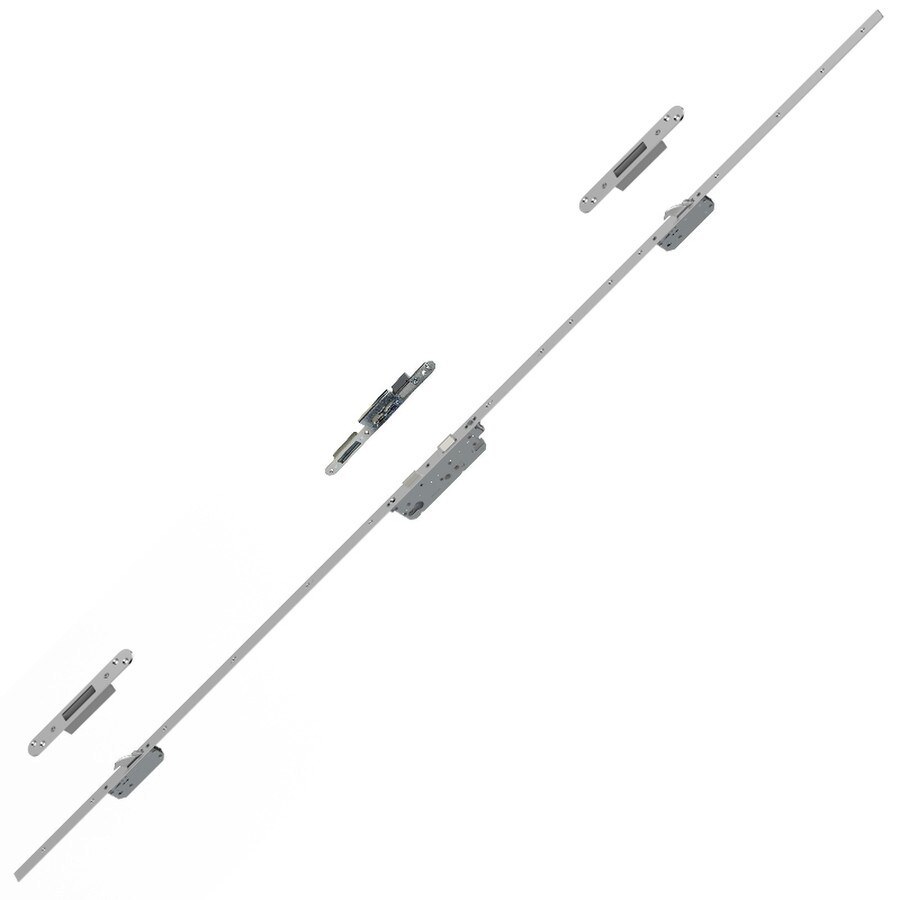

ML3120S (AV3) Kit, Left Hand, Vogue Premium Auto Lock, 55mm Back Set, 20mm Face Plate with 33mm Centre Line Individual Keeps , Size 1

SKU: ML3120S-KIT-55-1-LH

Description

  • Vogue premium multipoint automatic door lock from Winkhaus.
  • Provides a contemporary look with the cylinder and central gearbox located approx halfway up the door.
  • Often used with a pull handle and thumbturn cylinder to create a contemporary 'slam shut' style door.
  • Innovative magnet only activates the anti 'push back' hook bolts once the door is closed, automatically locking the door and preventing damage to the door frame.
  • Dual hook bolts provide extra security and enhanced weathersealing.
  • Daylatch switch enables temporary release of the locking system for convenient access without a key - e.g. when carrying shopping in from the car.
  • Tested to PAS24 and Secured by Design Approved.
  • Left Hand Auto lock premium system, fires latches when the door closes, 55mm backset, 20mm face plate, Size 1 (455mm top box height), overall length of 2105mm supplied with 33mm left hand centre line keep incorporating the day switch & magnet latch feature and individual flush adjustable keeps.

Videos

Specifications

  • Guarantee:10 Years
