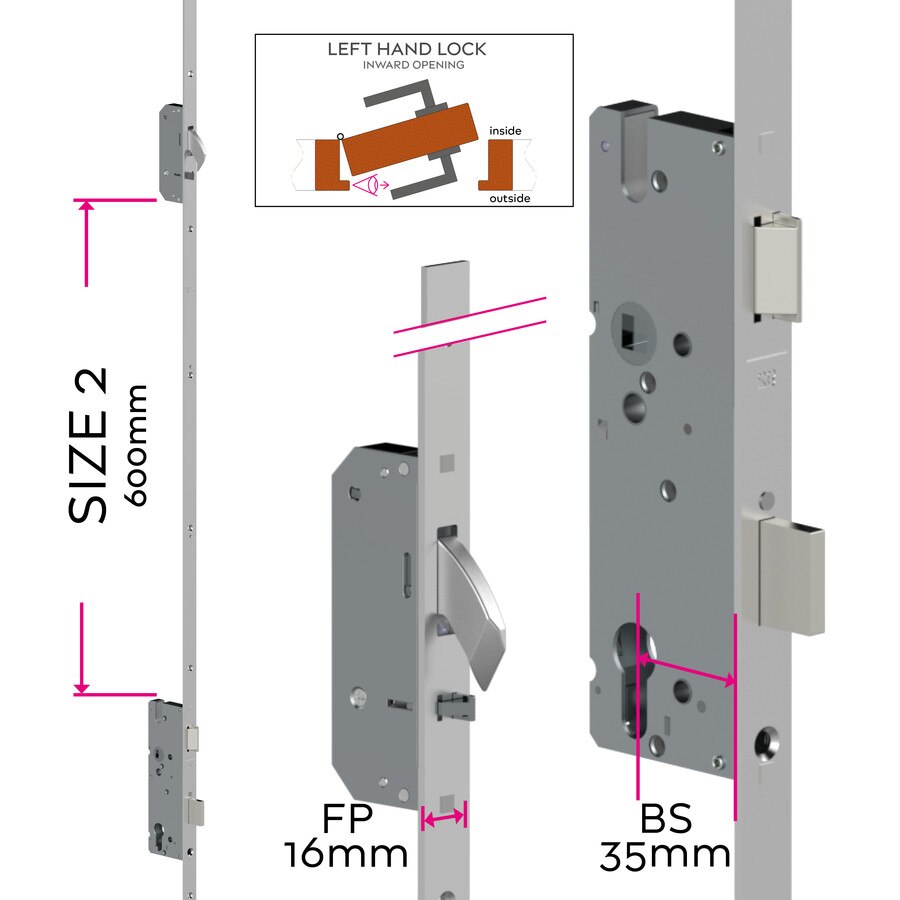

Auto Multipoint Door Lock (AV2)
Left Hand
35mm Backset
16mm Square End Faceplate
Size 2
ML126S
Silver

SKU: ML126S-LH-35-2-SV

Description

  • Winkhaus multipoint auto door lock with 35mm backset and 16mm faceplate.
  • Provides a contemporary look with the cylinder and central gearbox located approx halfway up the door.

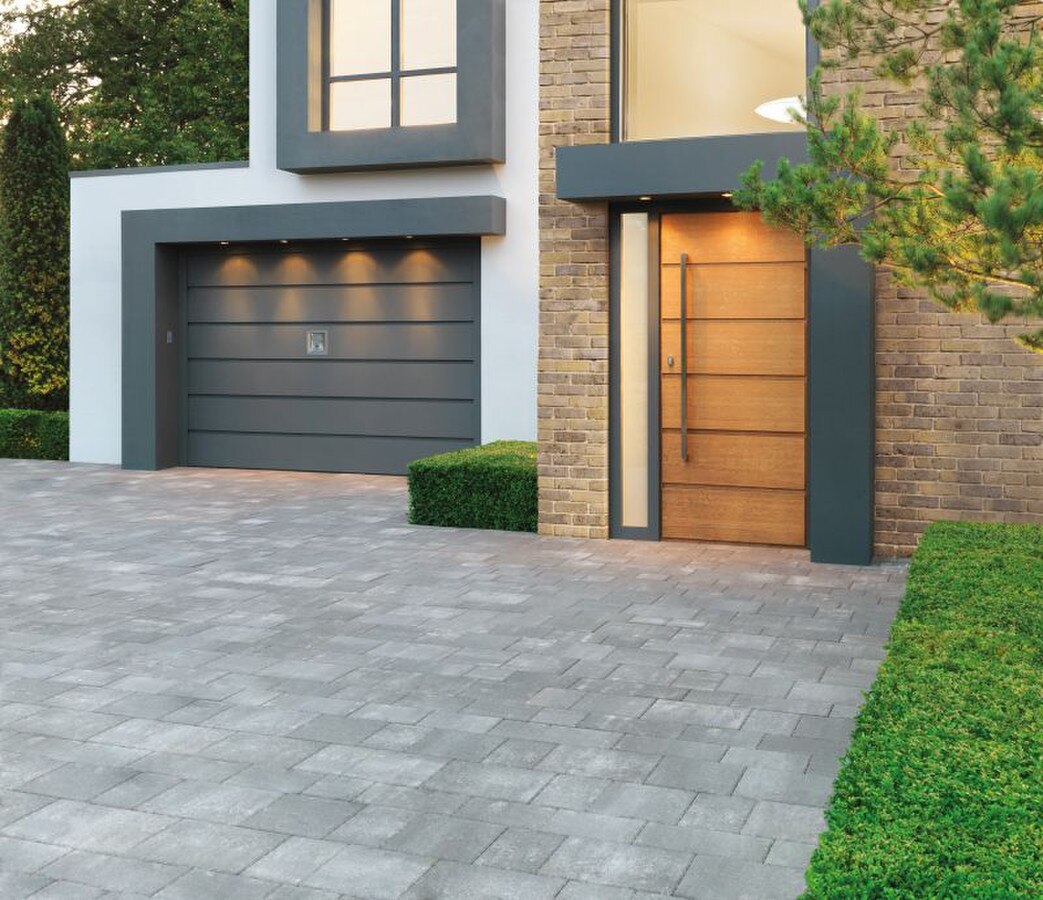

  • Often used with a pull handle and thumbturn cylinder to create a contemporary 'slam shut' style door.
  • Solid anti 'push back' hook bolts automatically trigger and lock upon shutting the door.
  • High performance, strengthened centre gearbox.
  • Tested to PAS24 and Secured by Design Approved.
  • The standard automatic door lock has a 16mm wide square ended faceplate for stability and ease of routing. Finished in a Silver Bichromate to BS EN 1670: 2007 Grade 4.
  • Police Secured by Design approved, and has been fully tested to PAS 23: 1999 and PAS 24: 2007. 10 Year guarantee.
  • Note that a split spindle will be required if this lock is used with lever handles.
