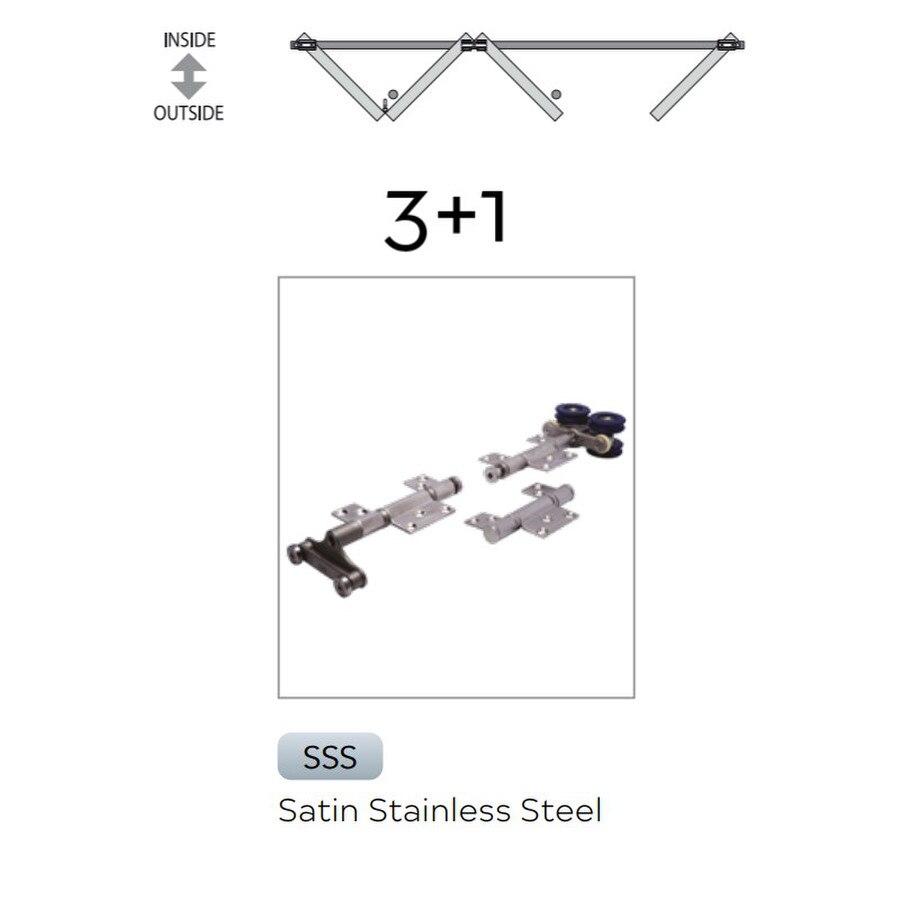

- 3+1 door open-out bi-folding system.
- This kit is the non-mortice version, if you require mortice then please contact the office.
- Kits are based on a maximum door width of 1000mm Wide and up to 2200mm High.
- Maximum door leaf weight of 100KG
- Kits work with door thicknesses of between 35mm - 68mm.
- Kits Include:
- 1 x 250 - 4000mm aluminium top track.
- 1 x PS13-6-BK Securefold 250 aluminium top track brush seal, 6 metres in black.
- 1 x T94P-4000-BK polypropylene top/bottom channel, 4000mm in black.
- 1 x T94SC-4000 aluminium top/bottom support channel, 4000mm in satin aluminium.
- 2 x SFWP1 Securefold non-mortice pivot kit, universal handing, 316 satin stainless steel.
- 1 x SF4 intermediate hanger/hinge/guide set, 316 satin stainless steel.
- 1 x SF7 outward opening offset hinge set with handle, 316 satin stainless steel.
- 2 x FB190 non-locking flush bolt, solid brass satin chrome finish.
- 2 x FB190L locking flush bolt, solid brass satin chrome finish.
- Flushbolts have been added to the Kit, twin point locking is available upon request.
- Weatherseal choice of three colours available (Not included in this Kit, please purchase separately).
- The locking system is not included in this Kit, please purchase this separately. If you are unsure of what you need please contact the office.
- This Kit is the hardware only, and does not include the doors.
Other configurations are available, please get in touch with the sales team for further information.
