Double Doors Twin Handle (Klone) Kit
Right Hand
Double Rebate
Shooting Slave Only
Suits Door Height 2611-3060mm

SKU: ML24S-KIT-45-12-C-4-RH

Description

  • High security Winkhaus multipoint door lock for French or double doors.
  • Enables much slimmer meeting stiles as no dummy mullion is required.
  • Lever handle on both master and slave doors.
  • Lever handle on slave door fires the shootbolts into the head and cill.
  • Lever handle on master door fires locking bolts into slave door.
  • For double rebate doors.
  • Tested to PAS24 and Secured by Design Approved.

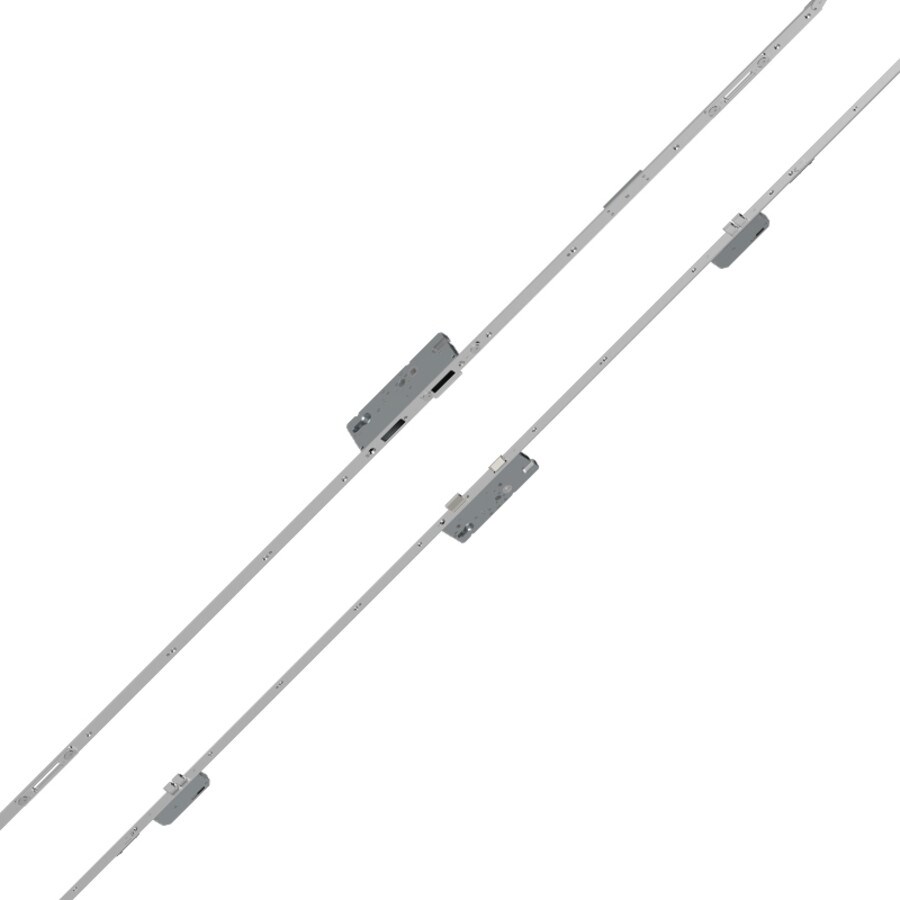

  • Kit includes 1 x ML60S master lock, 1 x ML26S right hand slave lock, 2 x MK6S lock extensions, 1 x MS175 & 1 x MS372 shootbolts and 2 x MS24 keeps for doors from 2611 - 3060mm high.
