  • ML120S (AV2) Kit B, Right Hand, Vogue Auto Lock, 55mm Back Set, 20mm Face Plate with 33mm Centre Line Full Length Keeps

ML120S (AV2) Kit B, Right Hand, Vogue Auto Lock, 55mm Back Set, 20mm Face Plate with 33mm Centre Line Full Length Keeps

SKU: ML120S-KIT-55-33-B-RH

Description

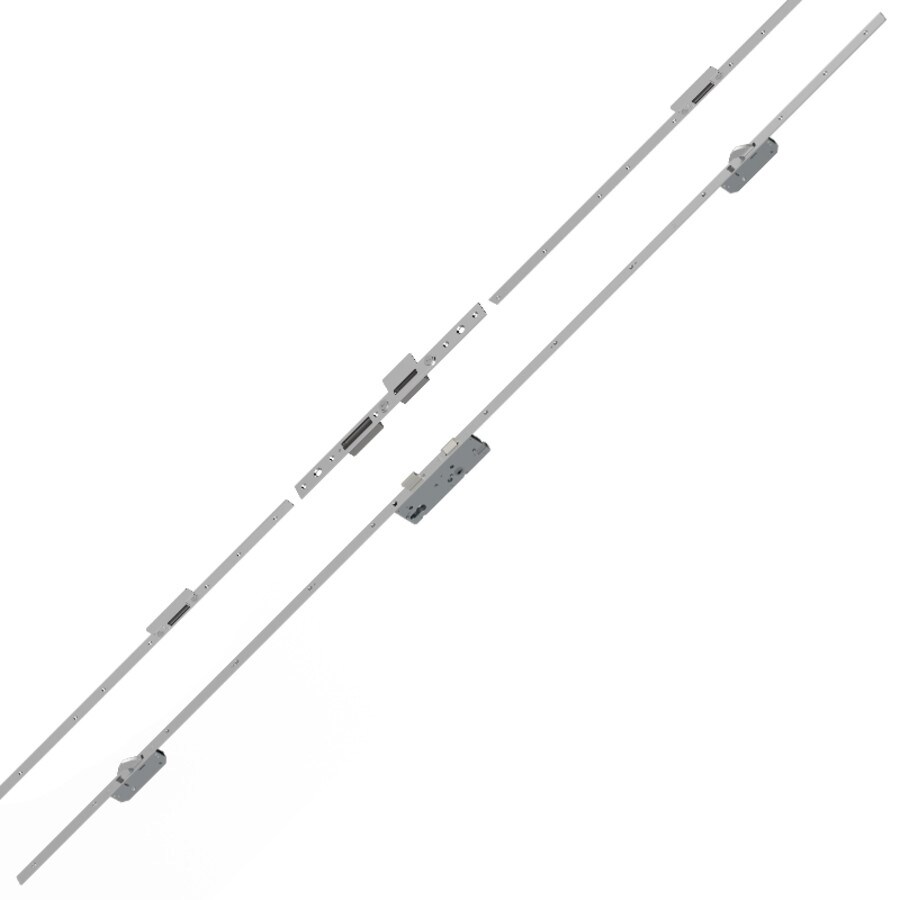

  • Vogue standard multipoint auto door lock from Winkhaus.
  • Provides a contemporary look with the cylinder and central gearbox located approx halfway up the door.
  • Often used with a pull handle and thumbturn cylinder to create a contemporary 'slam shut' style door.
  • Solid anti 'push back' hook bolts automatically trigger and lock upon shutting the door.
  • High performance, strengthened centre gearbox.
  • Tested to PAS24 and Secured by Design Approved.
  • Right Hand Auto lock system, fires latches when the door closes, 55mm backset, 20mm face plate, Size 2 (600mm to box height), overall length of 2105mm supplied with 33mm right hand centre line full length keep.

Specifications

  • Guarantee:10 Years

Documentation
