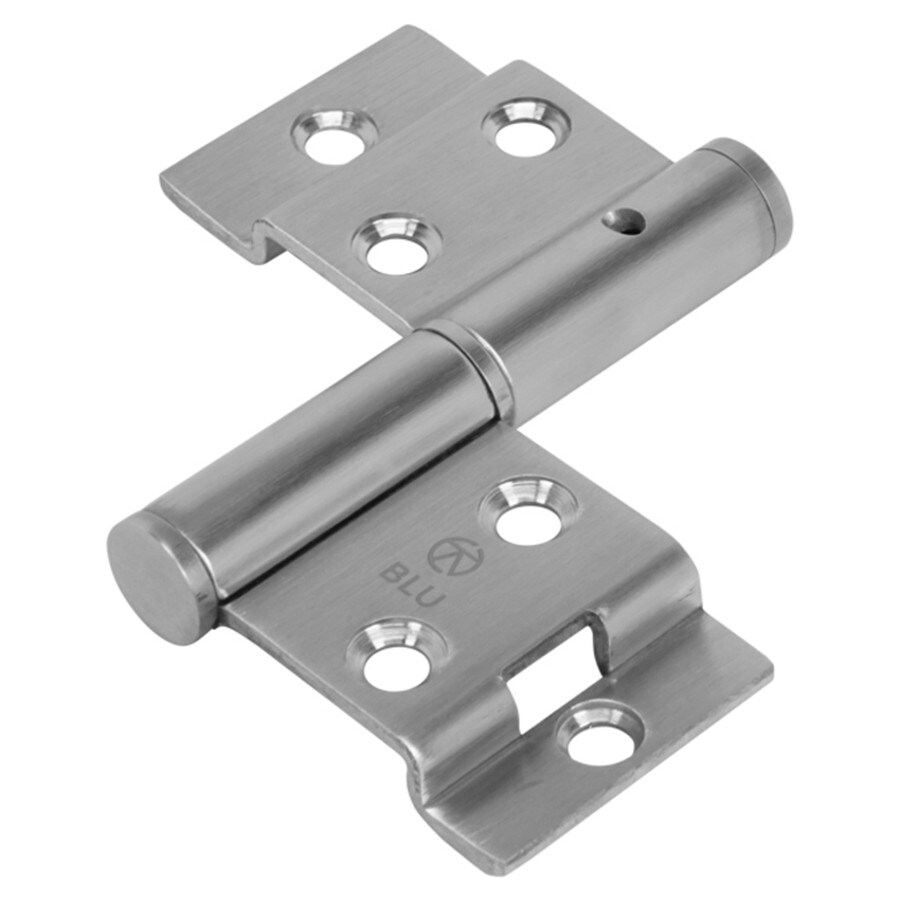

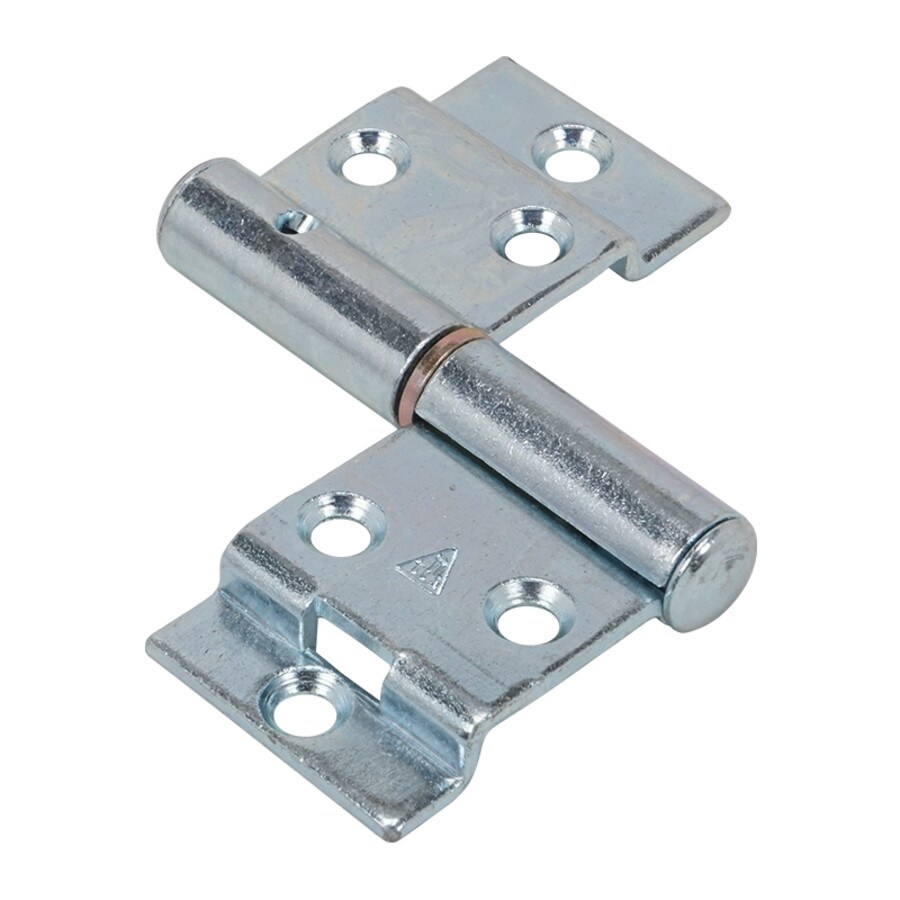

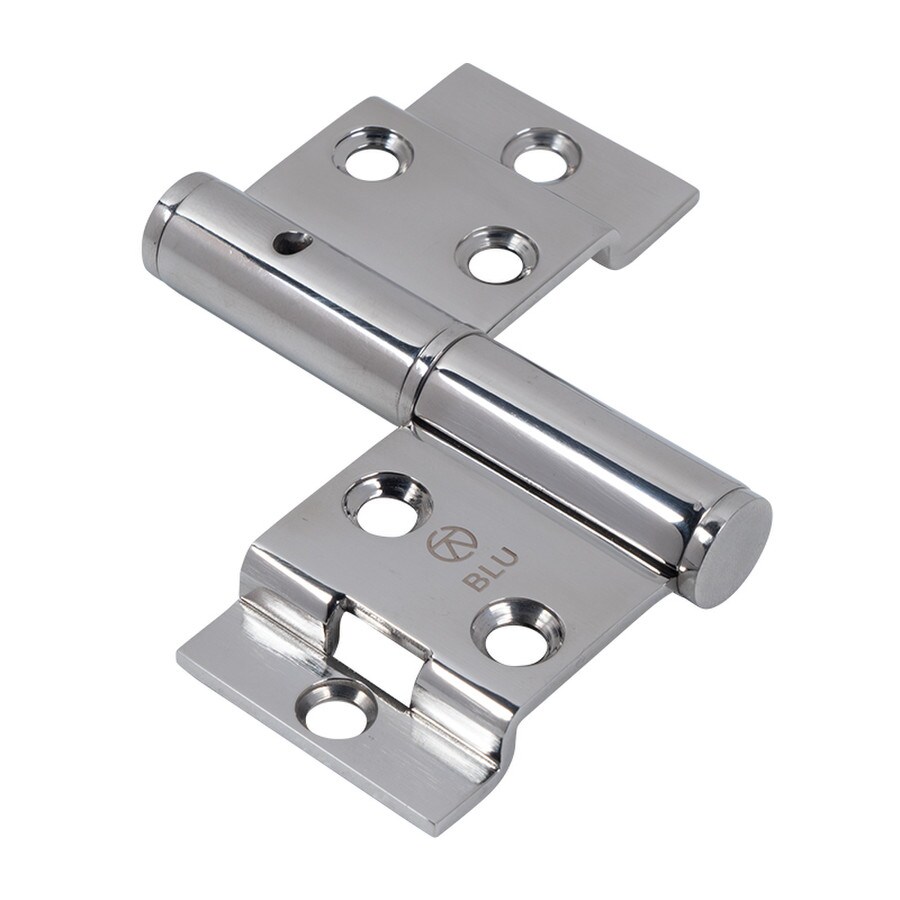

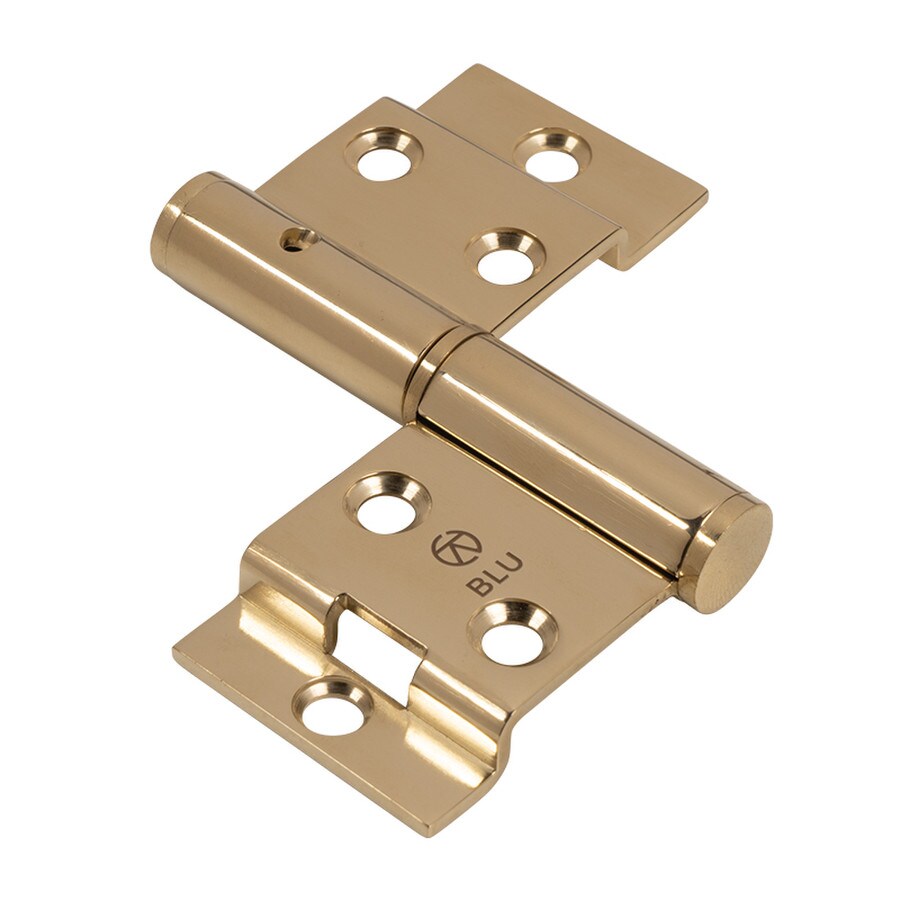

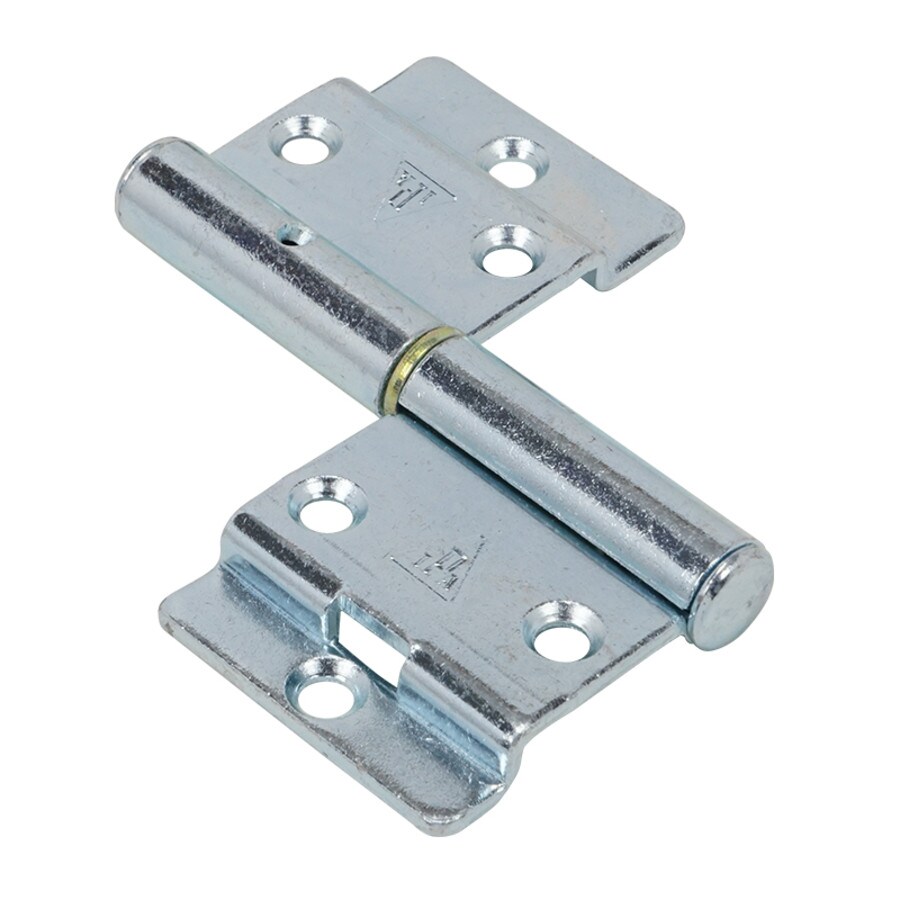

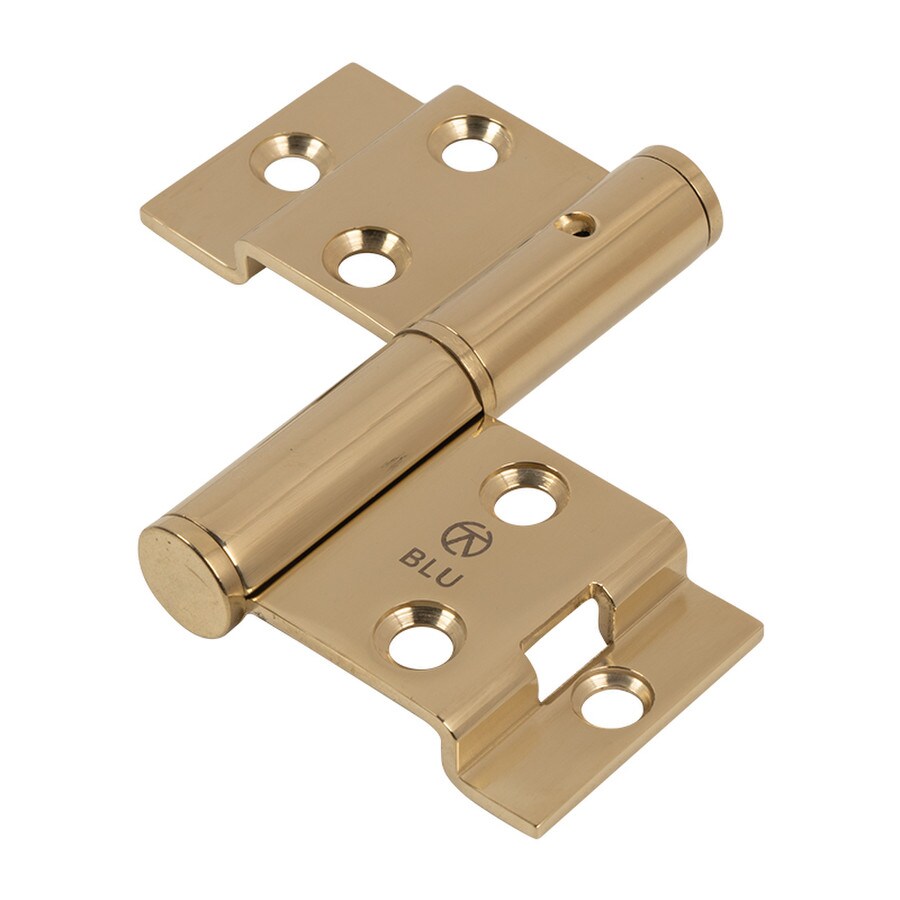

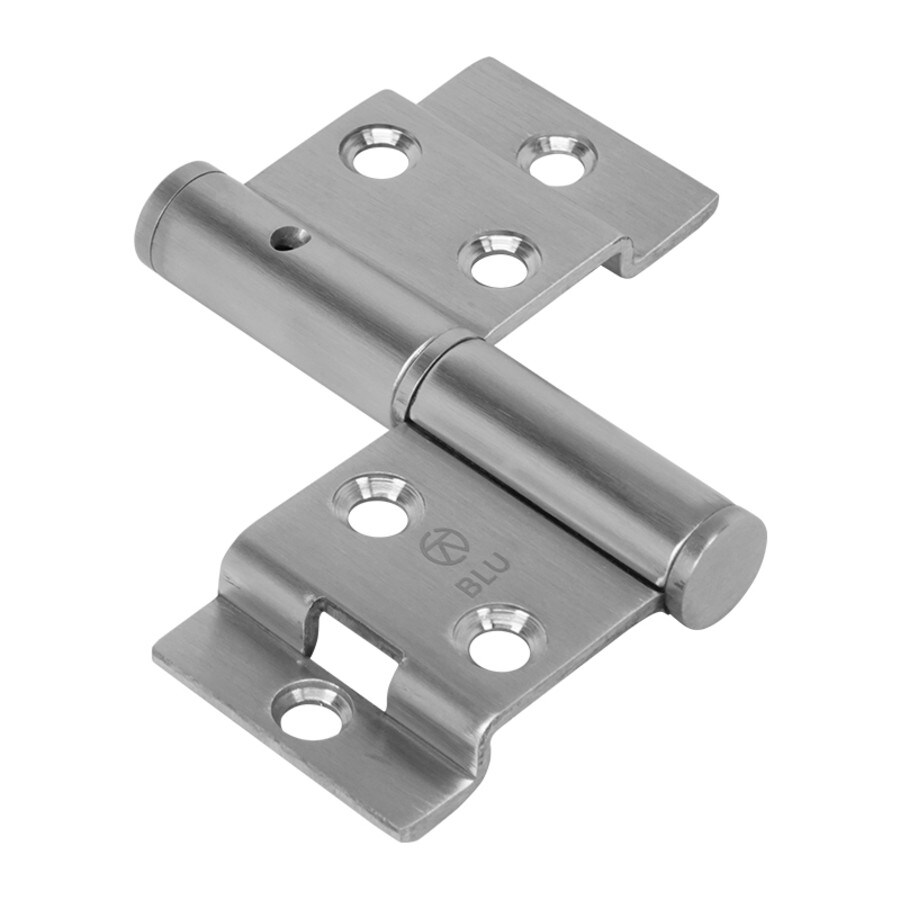

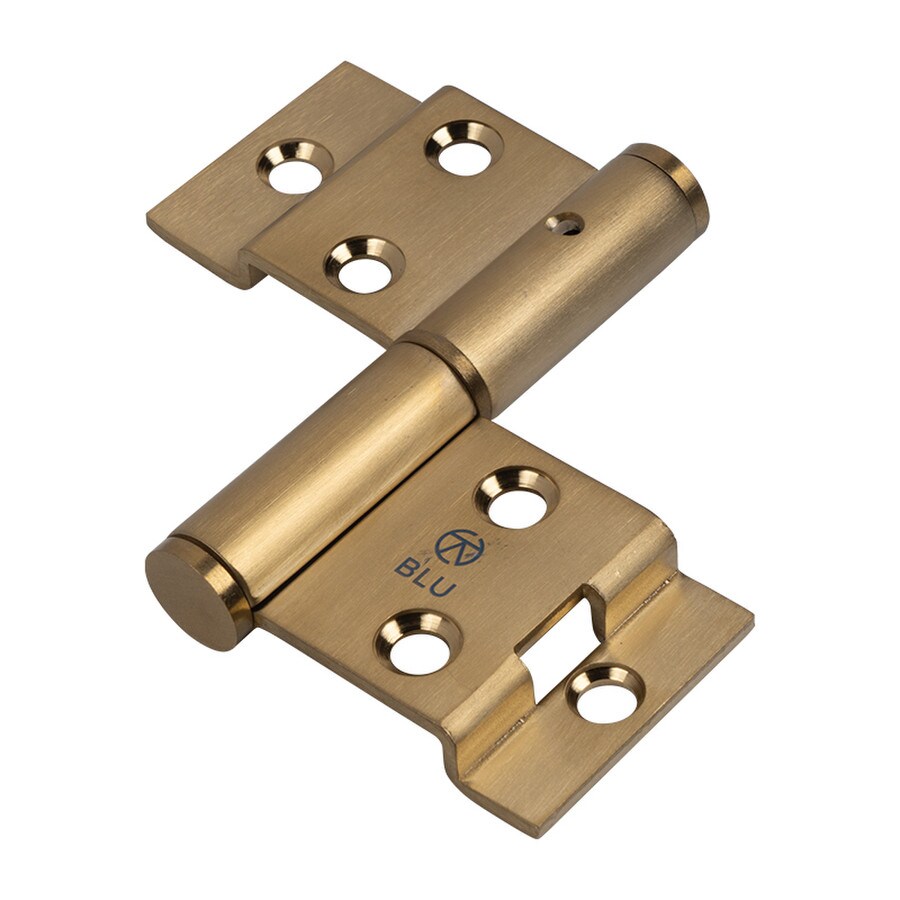

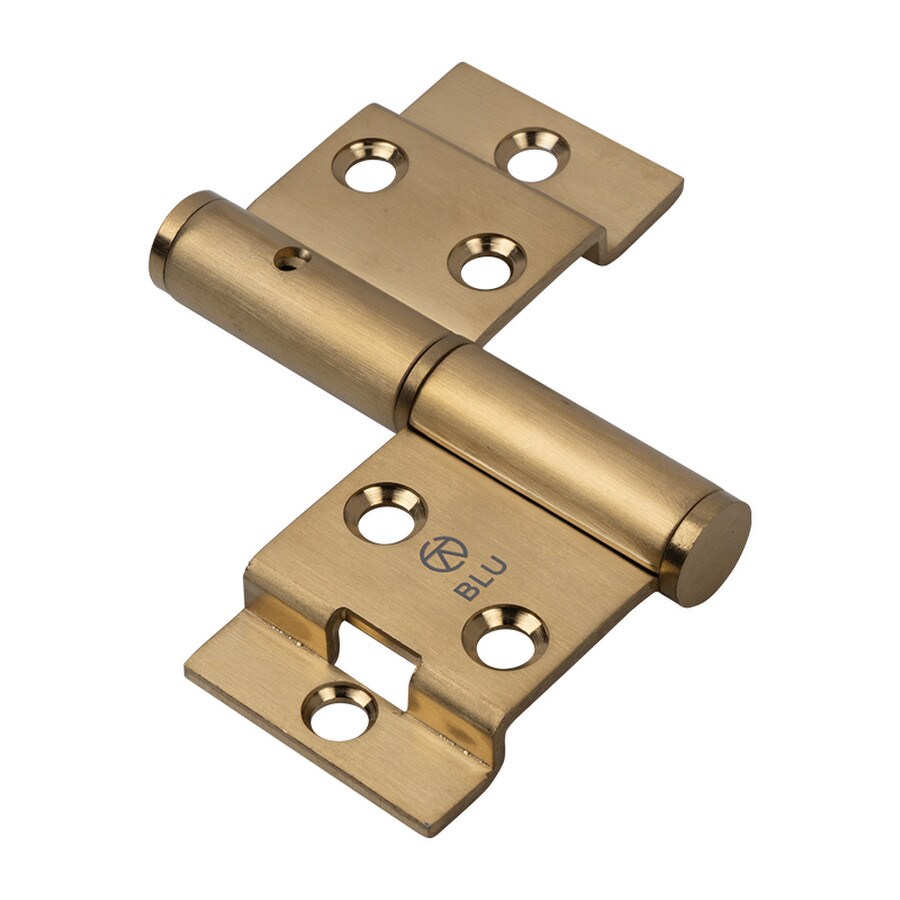

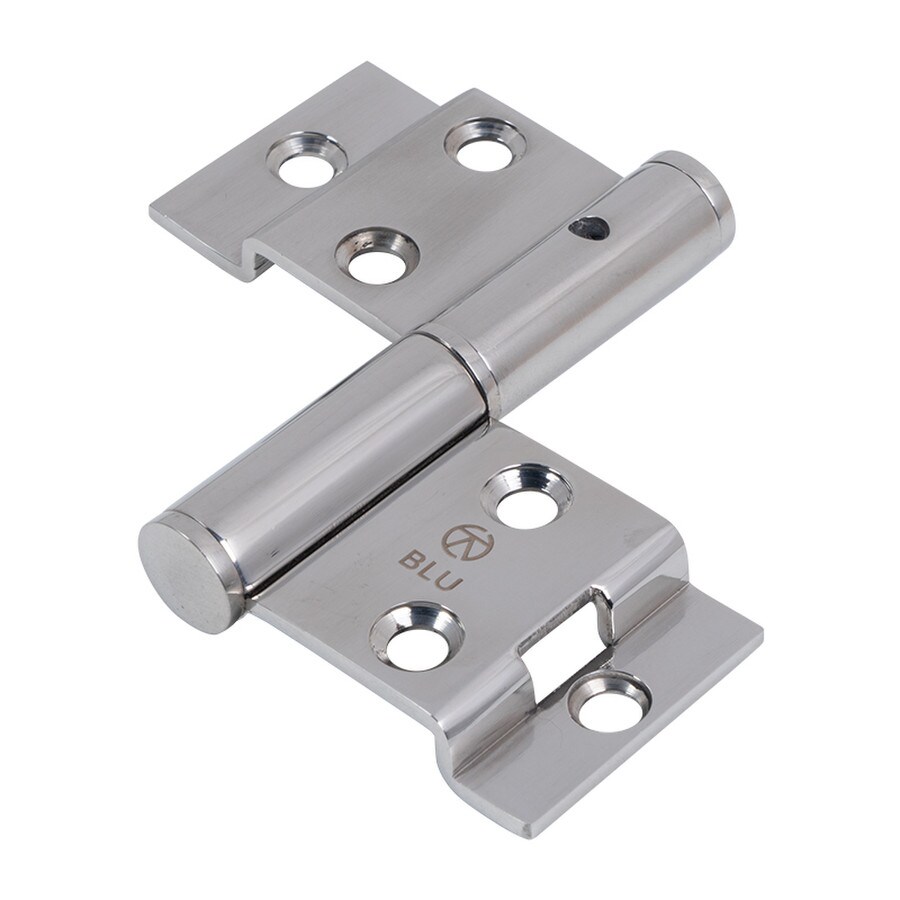

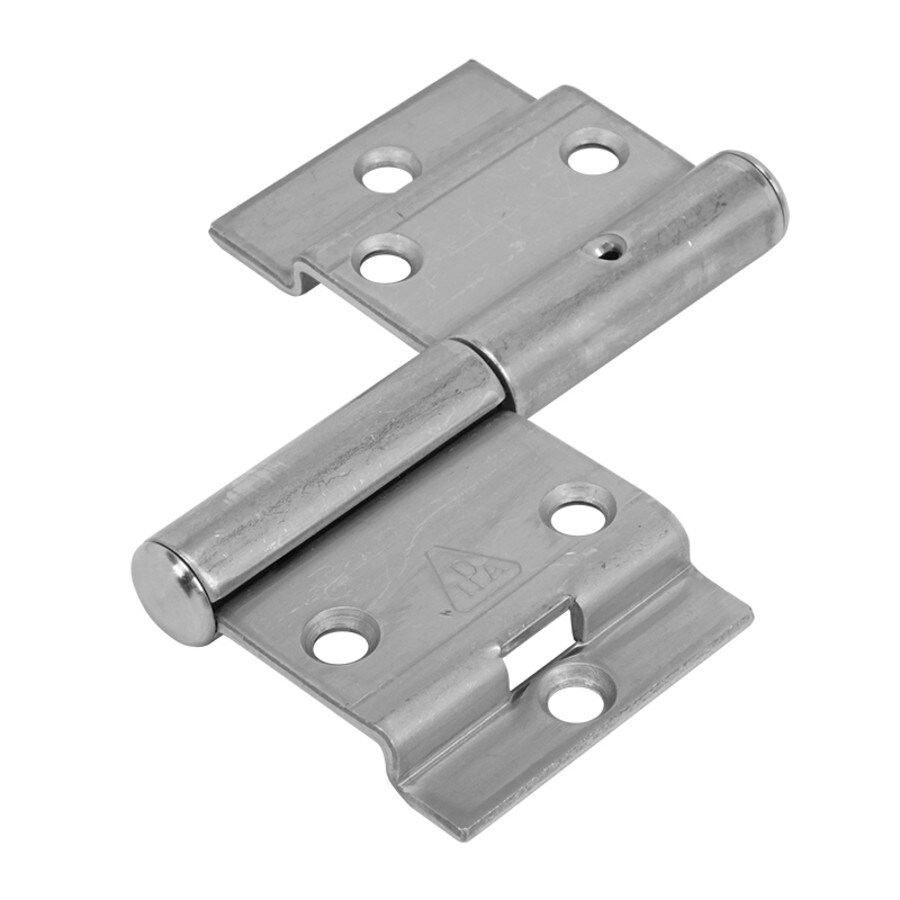

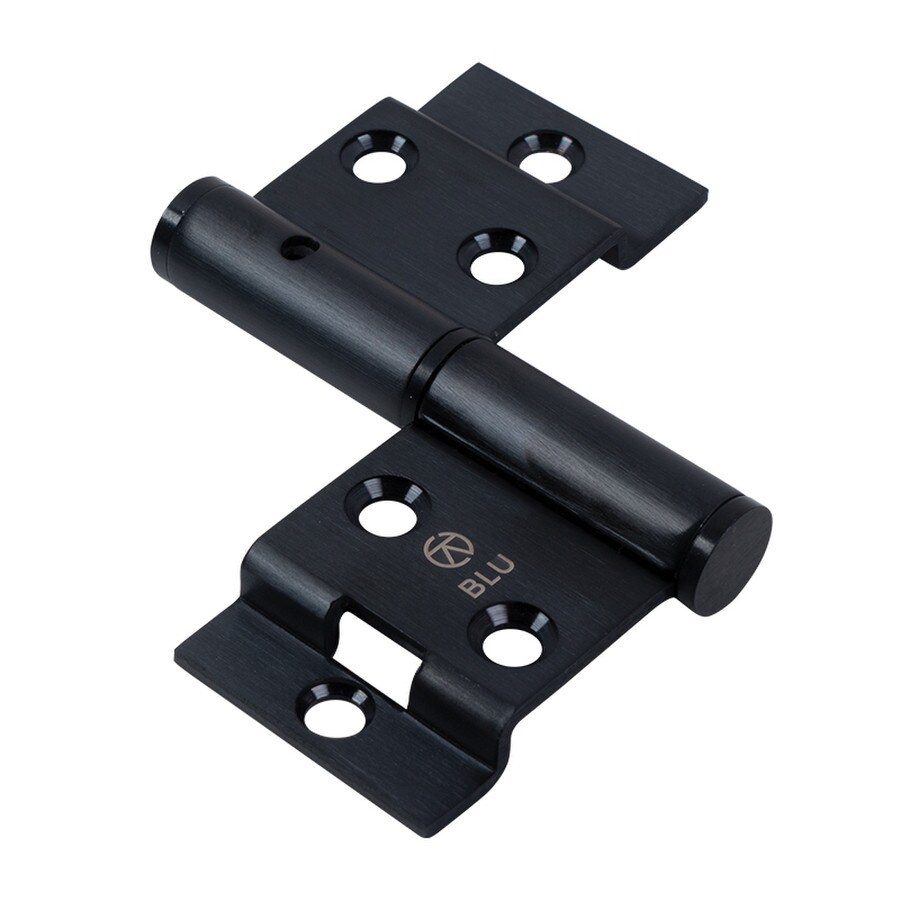

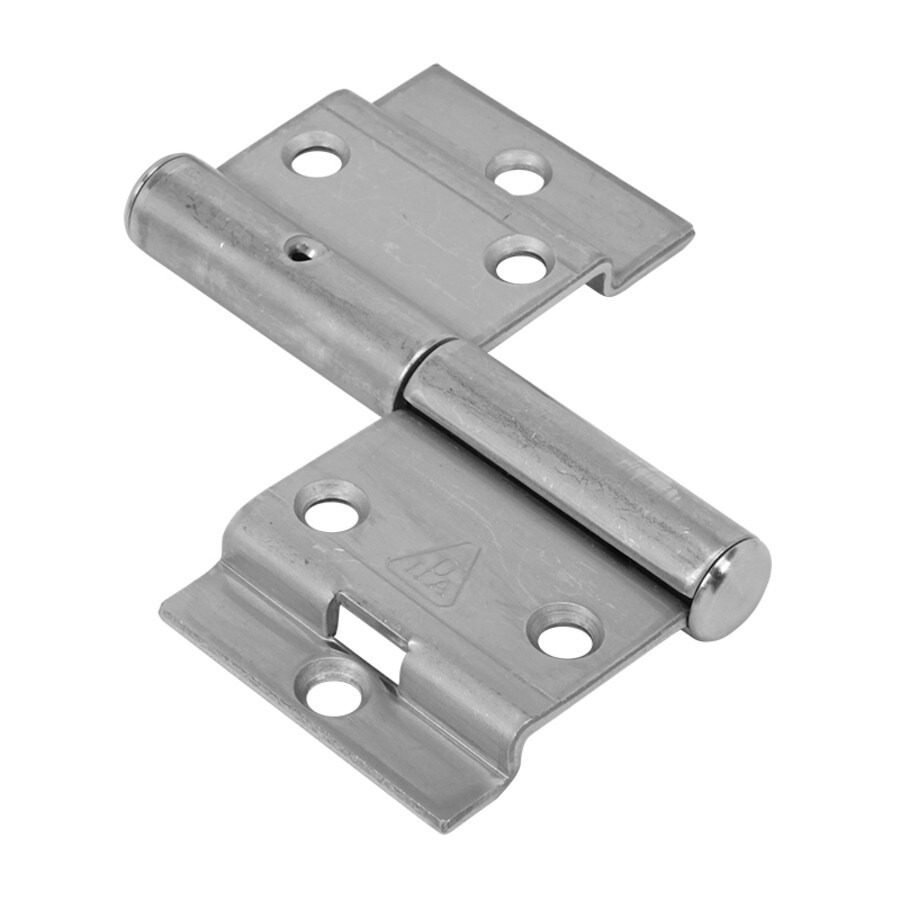

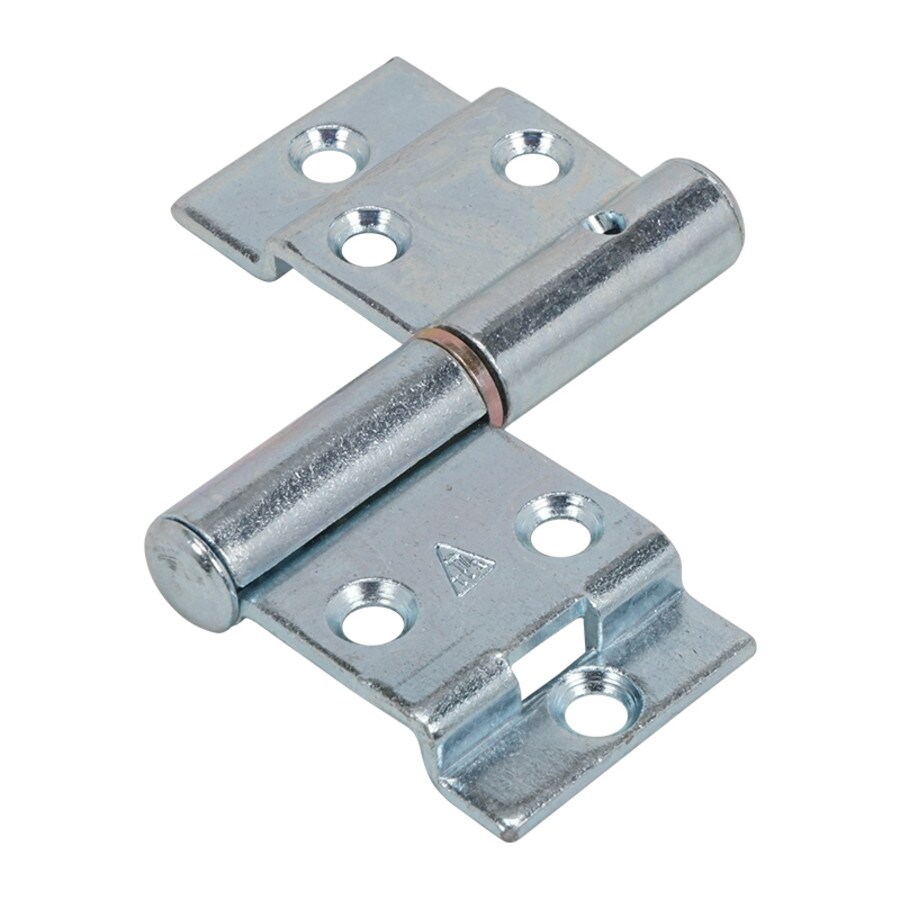

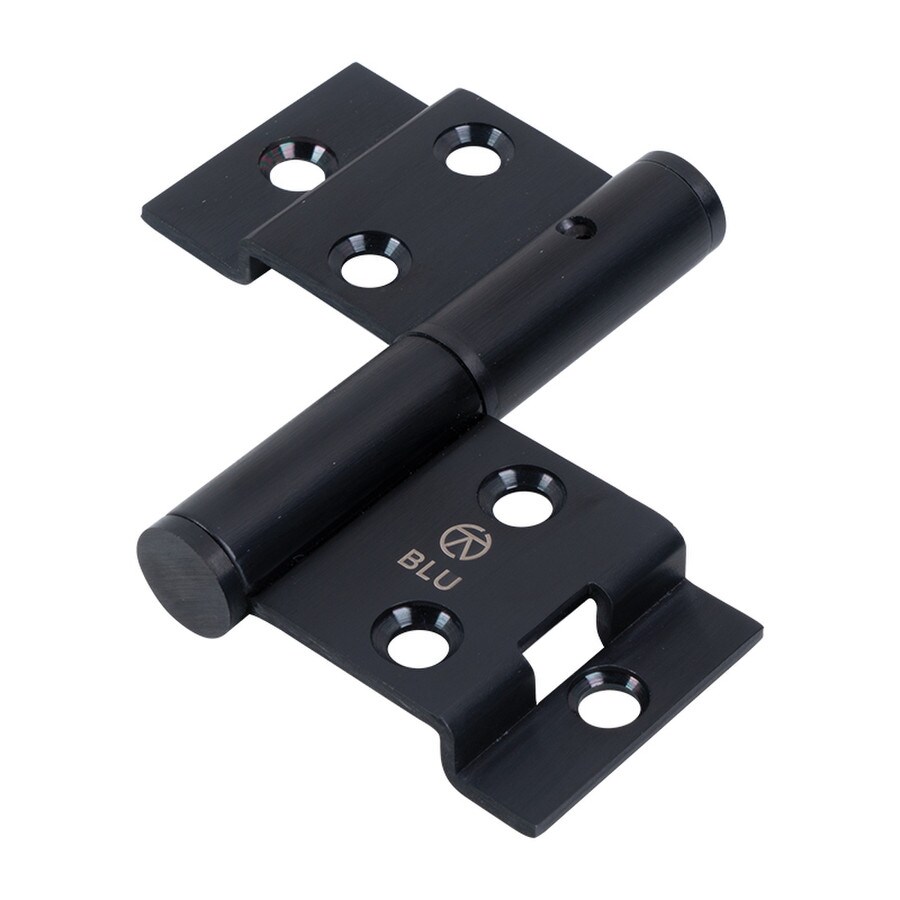

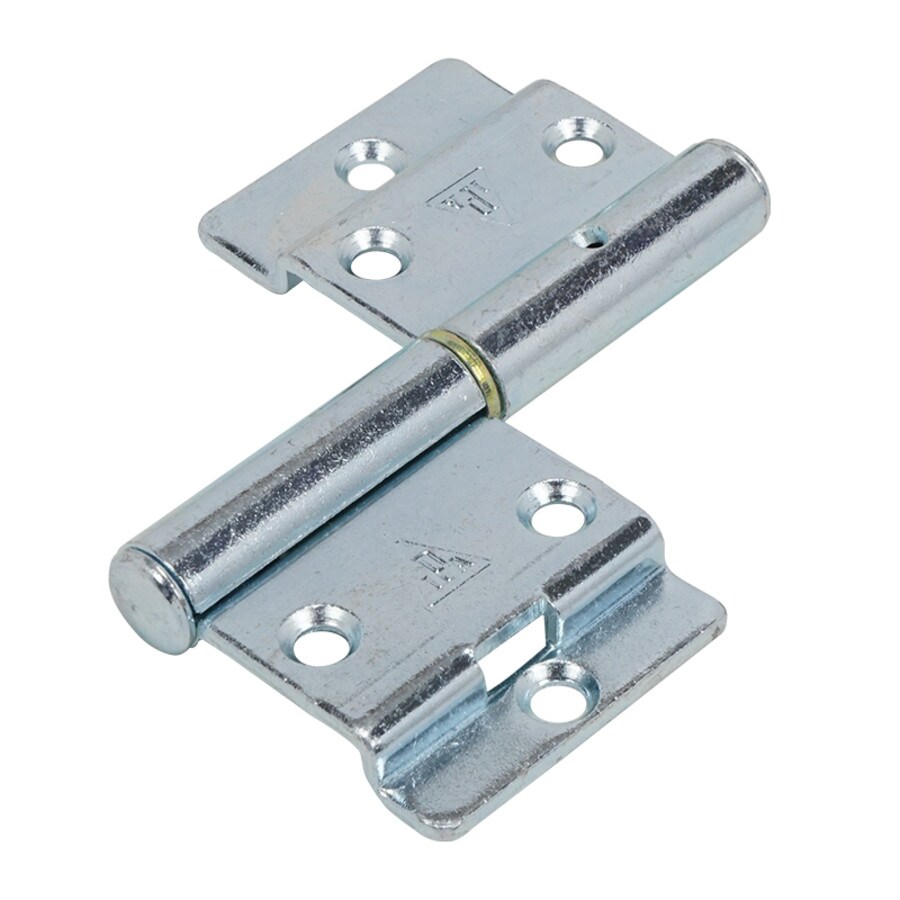

FH70 / FH80 TRITUS (IPA) 316 Stainless Steel Lift Off Butt Hinge SKU: TRITUS Lift Off Butt Hinge In Stock 3757 Available Pinit Download Image Please select from the options below: Handing : Left Hand Right Hand Size : 77 x 88mm 93 x 88mm Finish : Polished Stainless Steel (PSS) PVD Polished Brass (PPB) PVD Satin Black (PBK) PVD Satin Brass (PSB) Satin Stainless Steel (SSS) Silver Passivated (SV) White (WH) Design : Square Corners Each Quantity discounts available QuantityPrice Quantity -+ £4.92 to £28.36(EX.VAT) Add to Basket Login to your account DescriptionHigh-quality IPA lift-off butt hinges with pressed flanges to fit into the Tritus Flush Casement Window grooves.12mm frame groove positions for extremely quick installation.The lift-off feature means the sashes can be sent to the site after frame installation and can easily be lifted off for repainting or renovation.Hinges meet the requirements of BS DS EN 1935: 2002 Grade 9: 25,000 cycles / FH70 - 60kg / FH80 - 120kgAvailable in a wide range of finishes including satin stainless steel, satin black, satin brass, polished brass, polished stainless steel and silver passivatedThe FH70 in SSS, PSS, PBK, & PPB finishes are made from 316 Marine Grade Stainless Steel for longevity and protection against corrosion, ideal for marine environments or acidic timber.FH70 PBK finishes do not come with fixing screws, these are available using code FX-CF4030-SS-MSB.FH80 hinges do not come with fixing screws.Successfully used in our Part Q Test.Note these hinges are handed looking from the outside of the building.Available in left and right handed versions.Use one of each hand for top-hung casements.Videos1234SpecificationsGuarantee:Lifetime for FH70 in SSS, PSS & PPB finishes. 15 Years for ORB finish. Other FH70 finishes and all FH80 finishes are 3 Years.Salt Spray:ASTM B117:2019 - 1000 hours (PBK finish)Cycle Test:BS DS EN 1935:2002, Grade 9 - 25,000 cycle / FH70 60kg - FH80 120kgDocumentationFH70 Technical DWG Drawing: DownloadFH70 Technical PDF Drawing: DownloadFH80 Technical PDF Drawing: DownloadHinge Handing Diagram PDF: DownloadHinge Position Suggestions PDF: DownloadSide Hung Butt Technical PDF Drawing: DownloadFH70 Data Card: DownloadFH80 Data Card: Download
