Window System

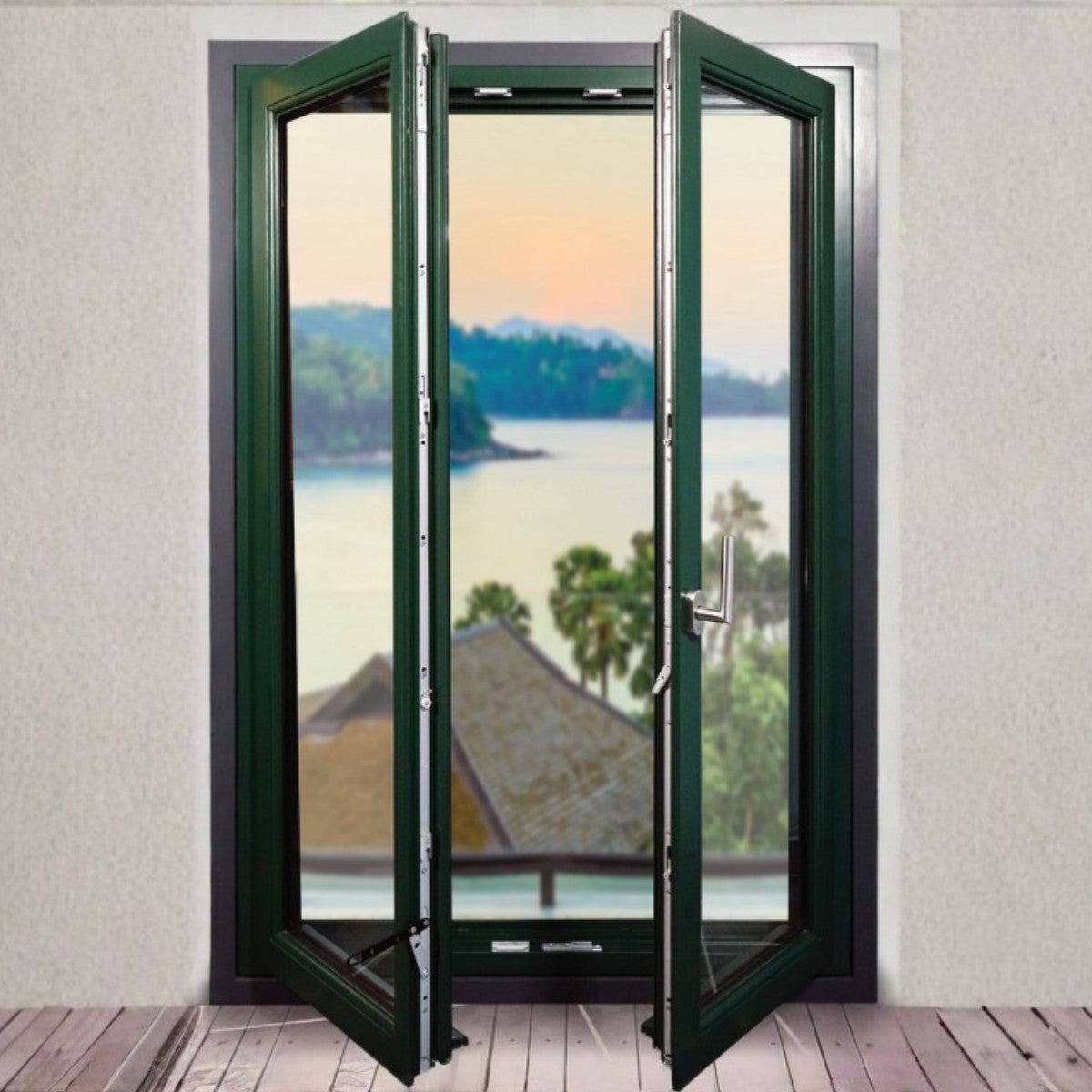

Maco Tricoat EVO Tilt & Turn
Built around the trusted MACO tilt & turn platform and finished in advanced TRICOAT EVO protection, this system delivers dependable day-to-day performance even in demanding environments such as coastal locations, exposed sites and projects using acidic timbers.
Whether you're manufacturing single or double sash windows, the MACO TRICOAT EVO system gives you a complete, engineered hardware package that combines reliable function with a cleaner fabrication process.

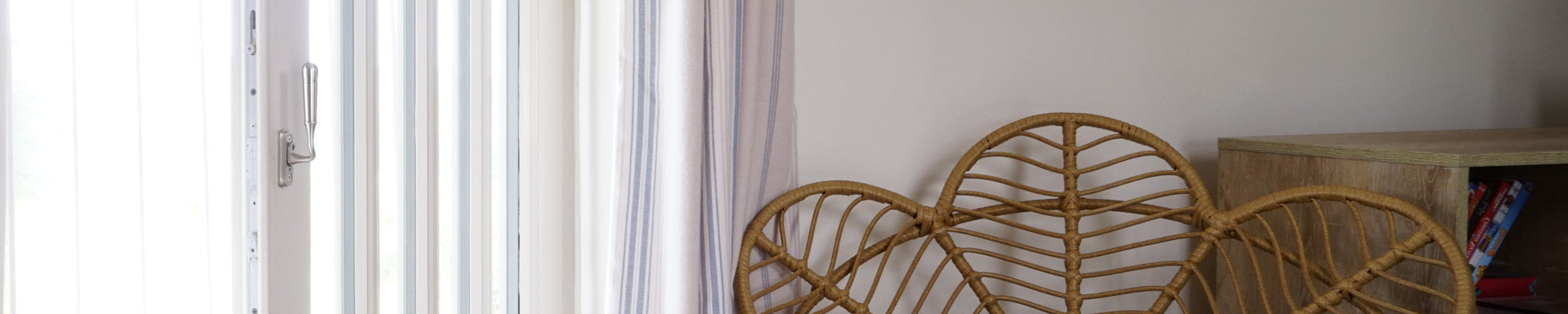

Tilt & Turn System
Why choose Maco Tricoat EVO?
Built for Harsh Environments
Finished in MACO’s highly durable TRICOAT EVO coating, this system offers exceptional resistance against corrosion, abrasion and surface wear. It's ideal for coastal installations, polluted urban areas, swimming pool environments and acidic timbers.
Modular, Fabricator-Friendly Design
With minimal components and a logical hardware build, the system is straightforward to assemble and helps streamline manufacturing.
Smooth Tilt & Turn Functionality
Provides controlled inward opening for full ventilation, alongside a secure tilt position for everyday airflow. End users benefit from effortless operation, while fabricators benefit from a proven and dependable gearing platform.
Enhanced Security as Standard
Multi-point locking around the sash helps deliver compression, weather performance and security in one complete hardware solution.

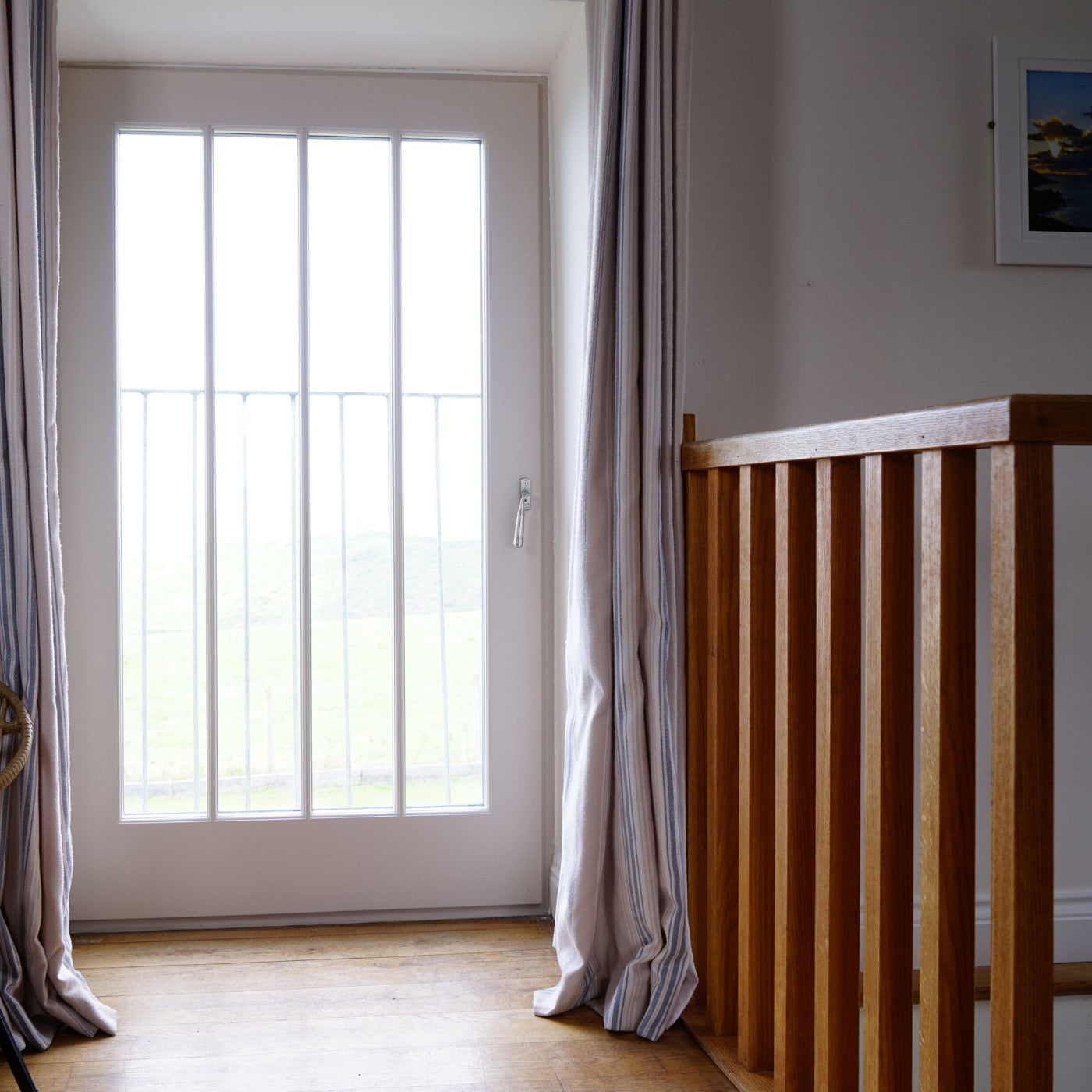

Maco Tricoat EVO Tilt & Turn System
Suitable Applications
The MACO TRICOAT EVO Tilt & Turn Window System is ideal for:
- Premium timber tilt & turn windows
- Coastal and marine locations
- High exposure sites
- Swimming pool and humid environments
- Accoya®, oak and other acidic timbers
- Residential and commercial developments
Maco Tricoat EVO Tilt & Turn System
System Sizes & Capacities
Single Sash Tilt & Turn
Minimum rebate size:
370mm w x 800mm h
Maximum rebate size:
1400mm w x 2250mm h
Maximum sash weight: 150kg
Double Sash Tilt & Turn
Master sash min rebate size:
490mm w x 800mm h
Slave sash min rebate size:
490mm w x 800mm h
Master/slave max rebate size:
1400mm w x 2250mm h
Maximum sash weight: 150kg
Master sash operates tilt & turn. Slave sash operates turn only.
Maco Tricoat EVO Tilt & Turn System
Complete Technical Information Available
For full machining details, component lists, application guidance and ordering information, download the MACO TRICOAT EVO brochure on the link below.
Or need help specifying your Tilt & Turn Hardware?
Whether you're setting up a new timber window range, pricing a project or need help with sash handing and component selection, our technical team can help. Click below to submit an enquiry and we'll get back to you.
