Auto Multipoint Door Lock (AV4)
Universal Handing
55mm Backset
20mm Square End Faceplate
Size 2
ML4120S
Silver

SKU: ML4120S-55-2-SV

Description

  • Winkhaus multipoint auto door lock (AV4) is an automatic locking system, locking automatically when you pull the door closed, without the need to lift a handle or use a key.

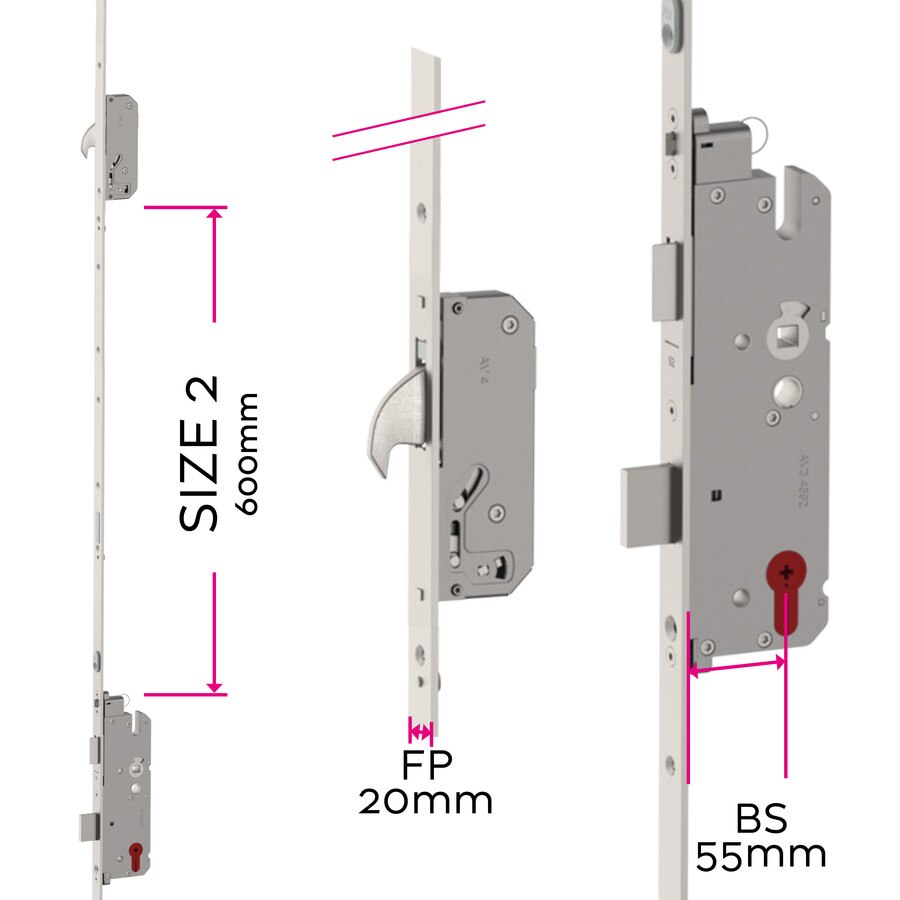

  • Universal handing, 55mm backset, 20mm faceplate and 2105mm length.
  • Non-handed, with 50% parts reduction, simplifying your ordering and inventory management
  • Magnet doesn’t activate hookbolts until door is fully closed, reducing risk of damage to door frame.
  • Optimised hook design provides the widest operational tolerances, reducing the need to adjust the lock throughout the life of the door.
  • 40% lower operating forces than the AV2, making it easy to operate.
  • Testing to and compliant with the requirement of PAS24:2022 and Secured by Design.
  • Suitable for composite, timber, aluminium and UPVC doors.
