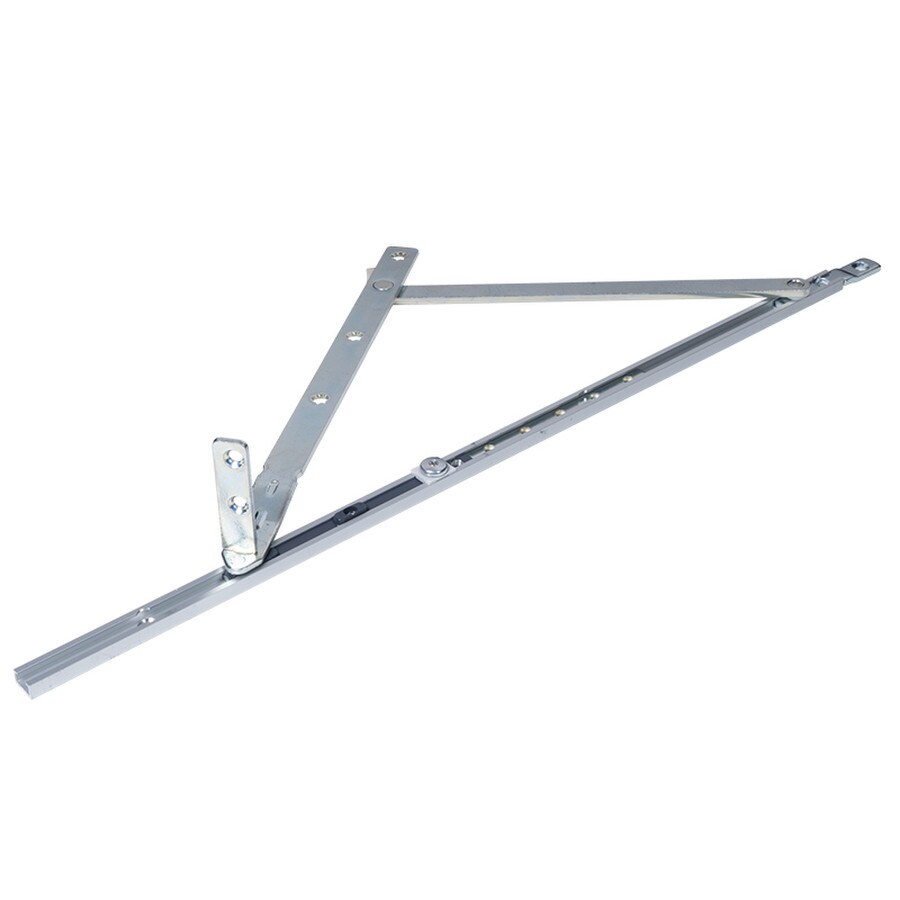

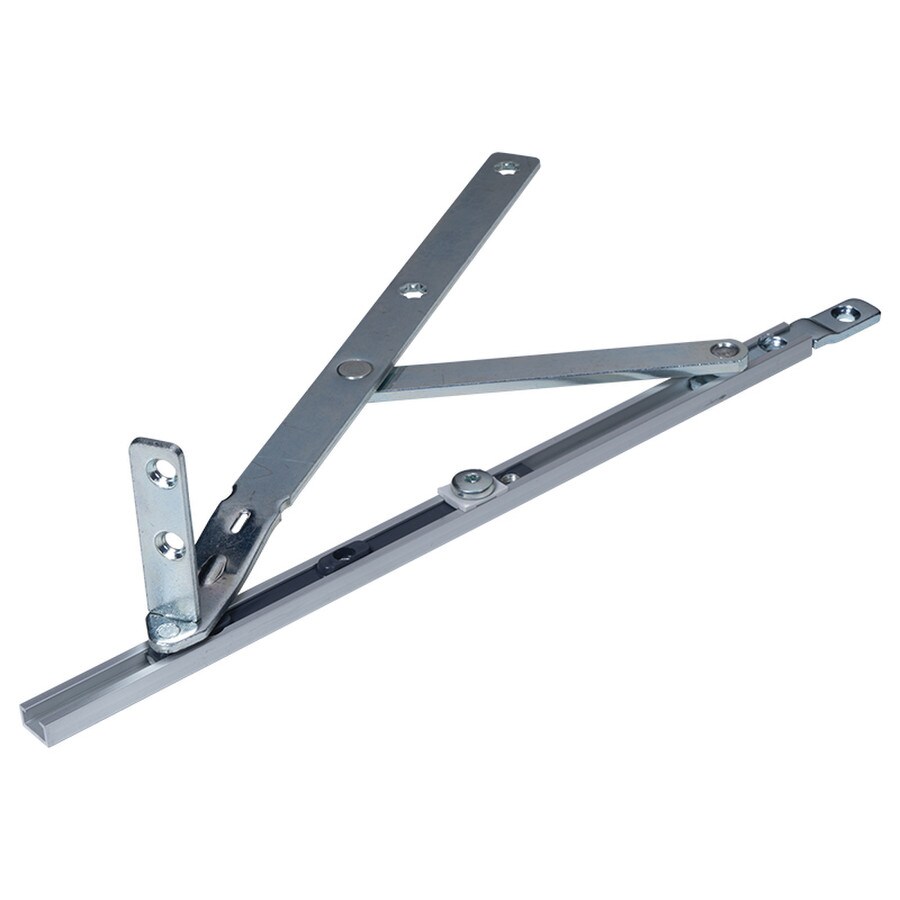

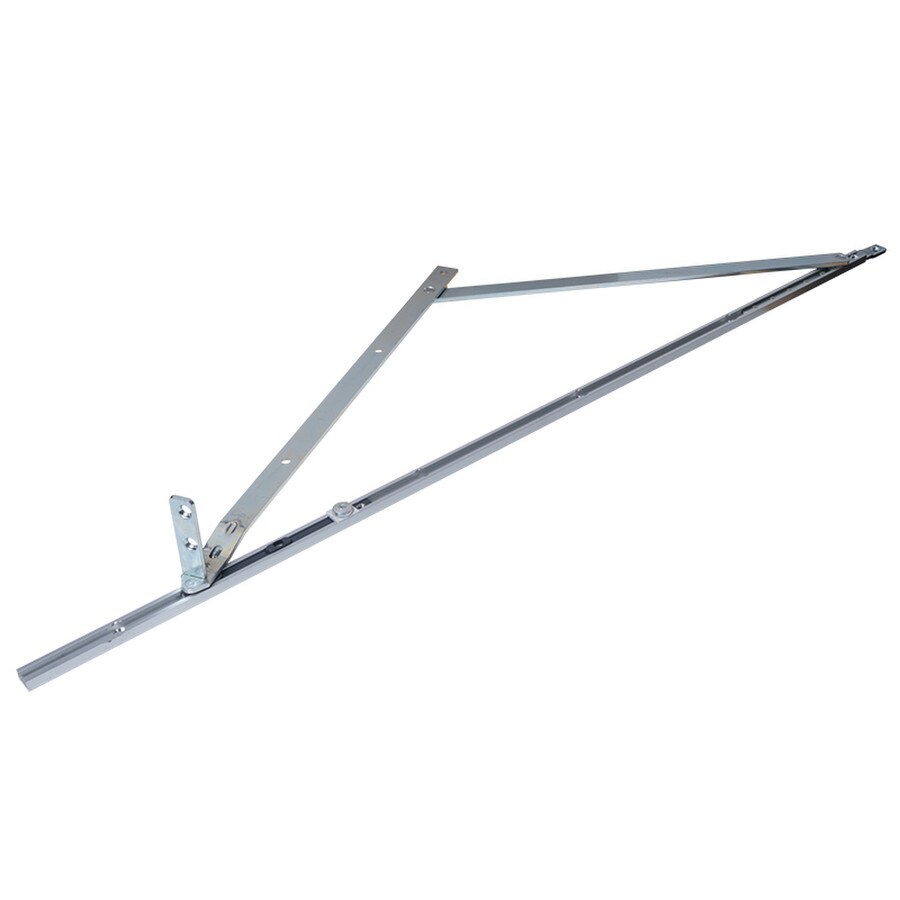

Tritus™ (IPA) Flush Top Hung Restricted Friction Hinge SKU: Tritus Flush Casement Top Hung Restricted Friction Hinge In Stock 88 Available Pinit Download Image Please select from the options below: Length : 263mm 453mm 711mm Inside Frame Height : 1344mm 1544mm 844mm Handing : Universal Finish : SV - Silver Passivated Pair Quantity discounts available QuantityPrice Quantity -+ £21.86 to £35.18(EX.VAT) Add to Basket Login to your account DescriptionTritus (IPA) top hung restricted friction hinge for canopy stay flush casement windows.As the sash opens out it slides down also providing ventilation at the top of the window.Fits into the Tritus groove system for fast production.Fittings are concealed for enhanced aesthetics.Easy to fit and operate and features adjustable friction in all positions.Generally used with the Tritus FM Mushroom Espagnolette Bolts and the FCK500 sash lead-in sill part if the sash is over 1000mm wide.Videos1SpecificationsWeight Capacity:FTS263 (263mm): 40kg, FTS453 (453mm): 50kg, FTS711 (711mm): 70kgDocumentationFTS263 Technical DWG Drawing: DownloadFTS263 Technical PDF Drawing: DownloadFTS453 Technical DWG Drawing: DownloadFTS453 Technical PDF Drawing: DownloadFTS711 Technical DWG Drawing: DownloadFTS711 Technical PDF Drawing: Download
