Introducing
Securefold Pro Bottom Rolling
Securefold Pro Bottom Rolling system is a versatile bifold solution designed for projects where overhead structural support is limited.
By carrying the weight of the doors through the floor, it enables installation in spaces where top-hung systems aren’t suitable, without compromising on performance or durability.

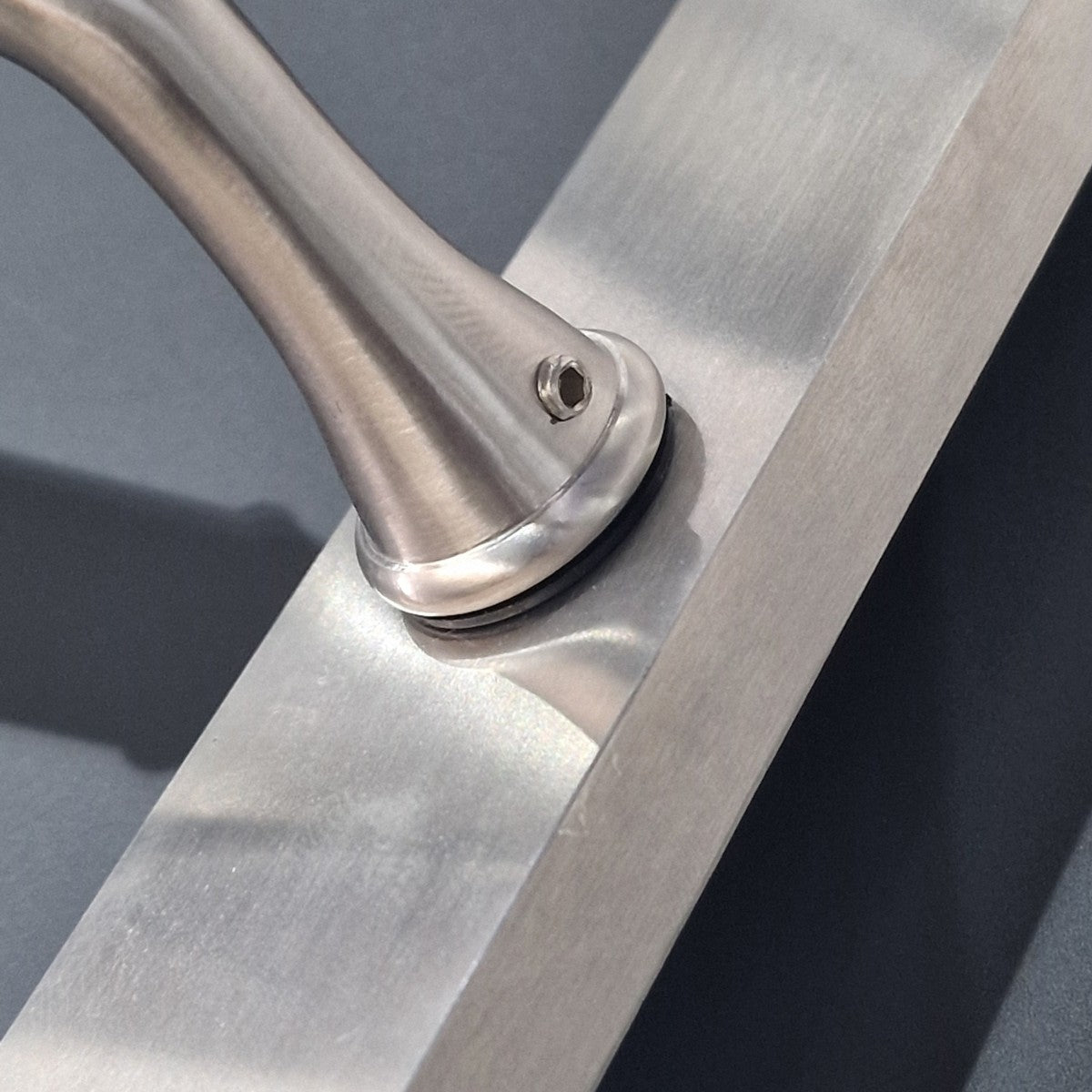

Premium hardware
Manufactured from 316 marine-grade stainless steel and corrosion-resistant materials for long-term performance.

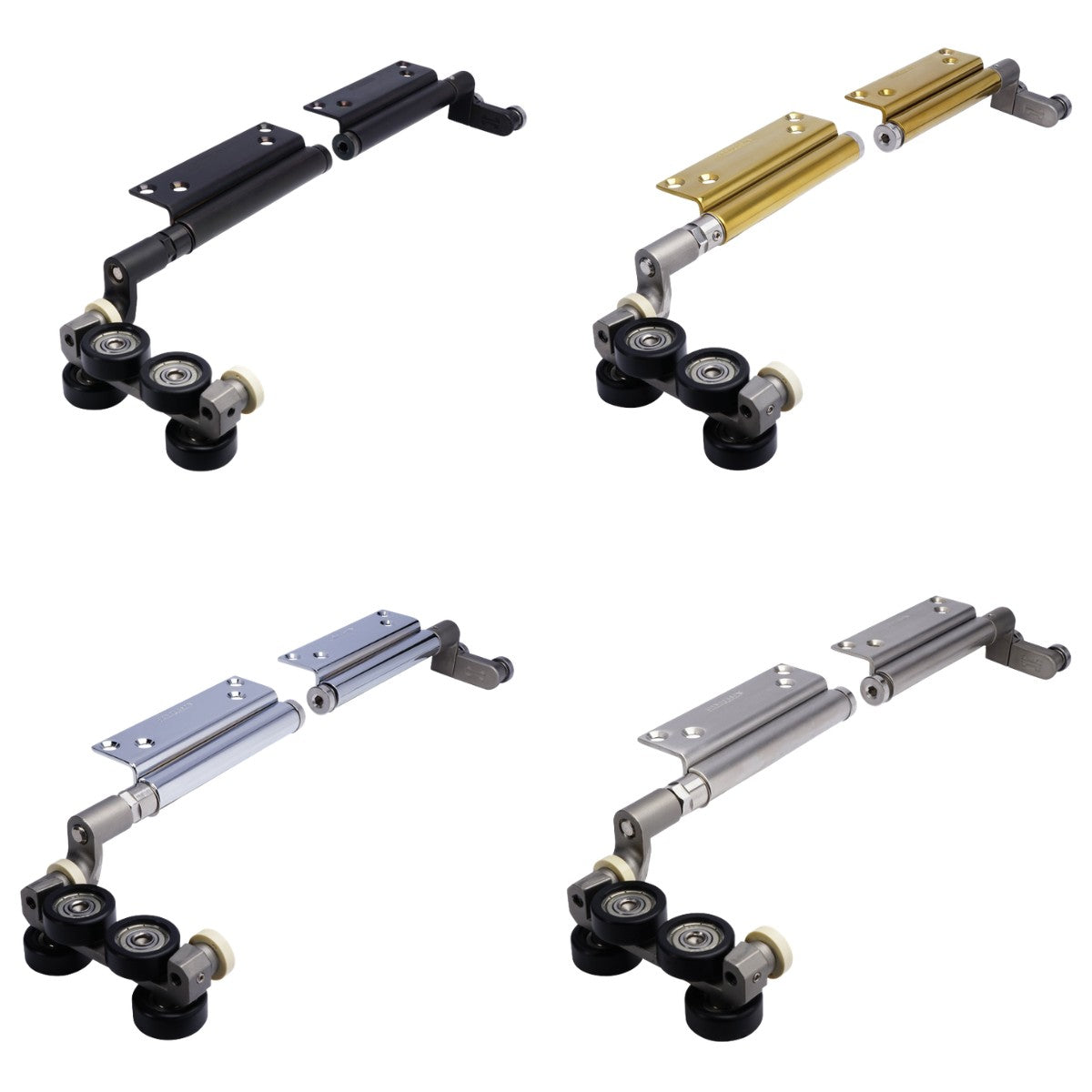

Four finishes
Available in Satin Stainless Steel, Polished Stainless Steel, PVD Stainless Polished Brass and PVD Stainless Satin Black.
Securefold Pro Bottom Rolling
Technical Performance
- Max leaf weight: 80kg
- Max leaf height: up to 3000mm
- Max leaf width: up to 1000mm
- Door thickness: 56–68mm
- Joinery type: Non-mortice
- Opening: Outward
- System type: Bottom rolling bifold
- Application: Internal and external use
downloads
Brochure
Download the Securefold bottom rolling folding door system brochure for a complete overview of the system, including:
- key features
- configurations
- and performance benefits
All presented in a clear, easy-to-reference format.
Download the latest fitting instructions and drawings for the Securefold Pro range.
Pricing Example
Finishes: SSS, PSS & PPB
Prices may vary but the table below gives an idea of prices for an outward opening Securefold Pro bottom rolling bifold door featuring hardware in one of three finishes (satin stainless steel, polished stainless steel, PVD polished brass), including all hanging components, tracks, weatherseal and bolts.
| Door Configuration | Height of Opening (mm) | ||
|---|---|---|---|
| Less than 2200 | 2201-2650 | 2651-3000 | |
| 2 + 0 | £649 | £685 | £705 |
| 3 + 0 | £725 | £759 | £779 |
| 4 + 0 | £1029 | £1069 | £1105 |
| 5 + 0 | £1295 | £1325 | £1385 |
| 6 + 0 | £1565 | £1619 | £1669 |
| 4 + 4 | £2569 | £2649 | £2719 |
| 5 + 5 | £2535 | £2655 | £2739 |
| 6 + 6 | £3509 | £3629 | £3735 |
Prices shown here are intended as a guide only and are subject to change without notice. Price excludes multipoint locks, handles and Euro cylinders. To get a full and accurate quote, simply click here to request a quote.
Finishes Explained:
SSS = Satin Stainless Steel PSS = Polished Stainless Steel PPB = PVD Polished Brass BK = Black
Pricing Example
Finishes: Black
Prices may vary but the table below gives an idea of prices for an outward opening Securefold Pro bottom rolling bifold door featuring hardware in a black finish, including all hanging components, tracks, weatherseal and bolts.
| Door Configuration | Height of Opening (mm) | ||
|---|---|---|---|
| Less than 2200 | 2201-2650 | 2651-3000 | |
| 2 + 0 | £699 | £765 | £769 |
| 3 + 0 | £785 | £850 | £855 |
| 4 + 0 | £1125 | £1225 | £1229 |
| 5 + 0 | £1405 | £1485 | £1519 |
| 6 + 0 | £1705 | £1845 | £1855 |
| 4 + 4 | £2759 | £2955 | £2965 |
| 5 + 5 | £2755 | £3009 | £3025 |
| 6 + 6 | £3795 | £4075 | £4085 |
Prices shown here are intended as a guide only and are subject to change without notice. Price excludes multipoint locks, handles and Euro cylinders. To get a full and accurate quote, simply click here to request a quote.
