Introducing

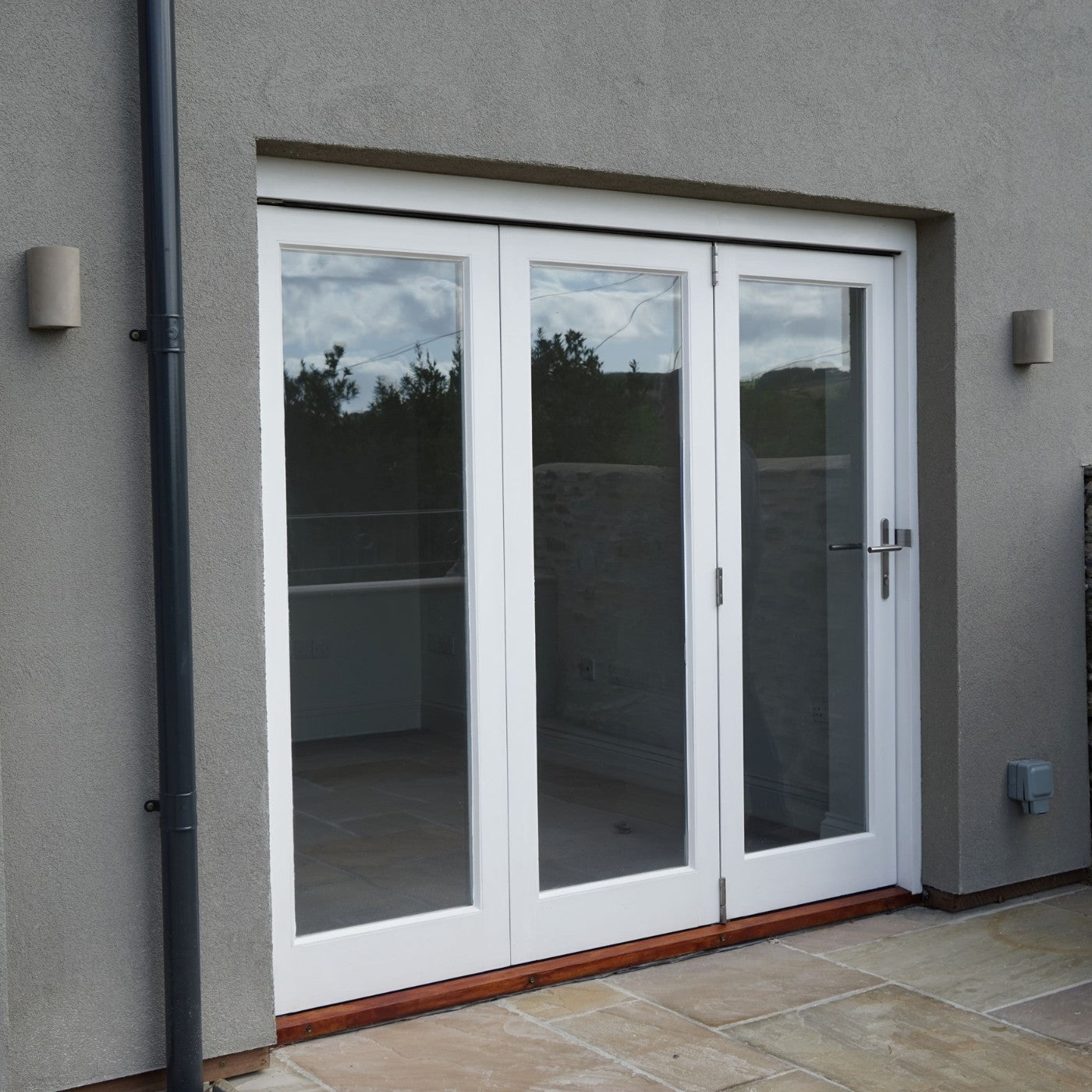

Securefold Pro Top Hung
The Securefold Pro is a robust top-hung bifold door system designed for straightforward fabrication and dependable performance.
Built with installers and joiners in mind, it combines practical design with durable materials, making it a reliable solution for both internal and external folding door applications.

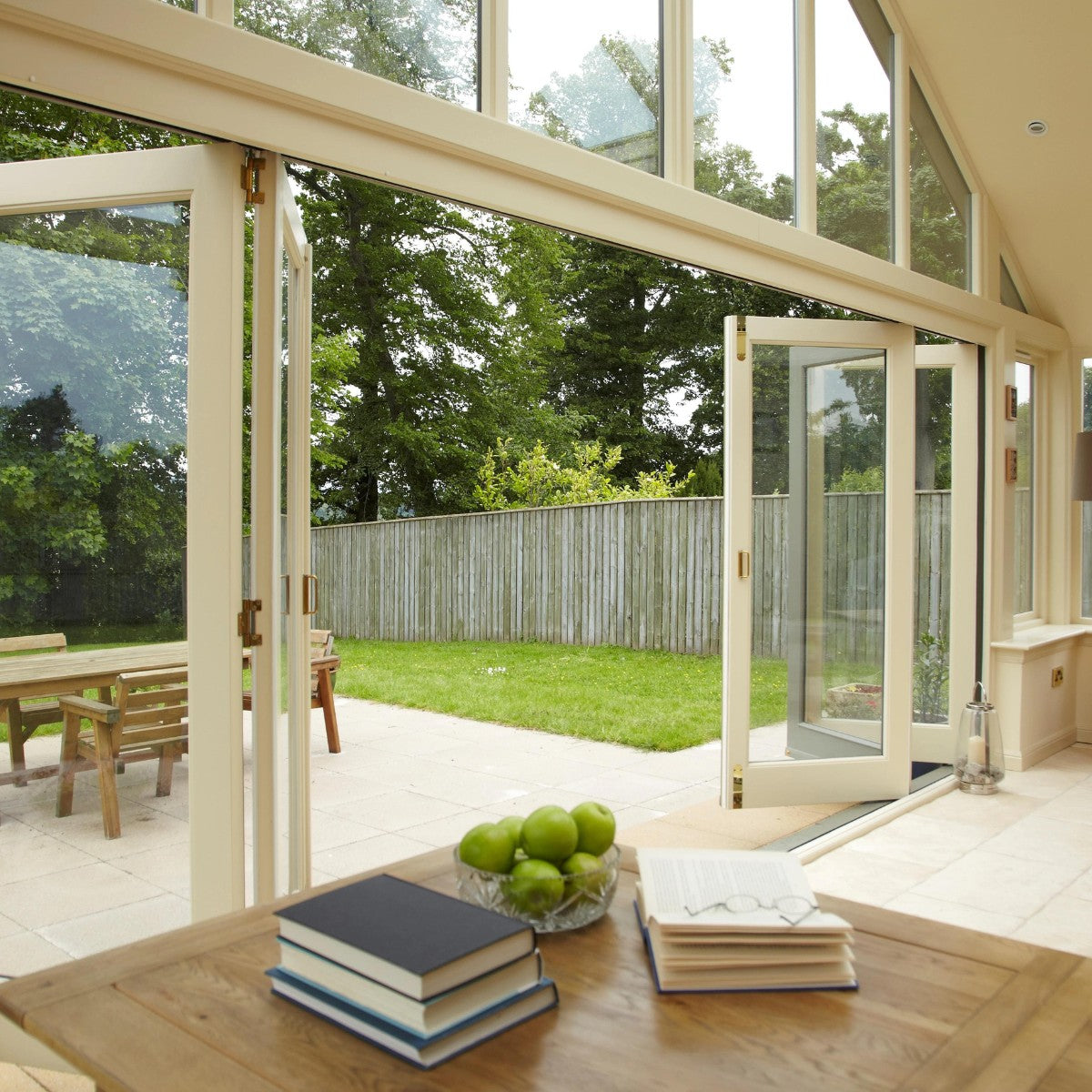

PAS24
Independently tested to resist wind, rain and air infiltration, delivering dependable performance in demanding environments.

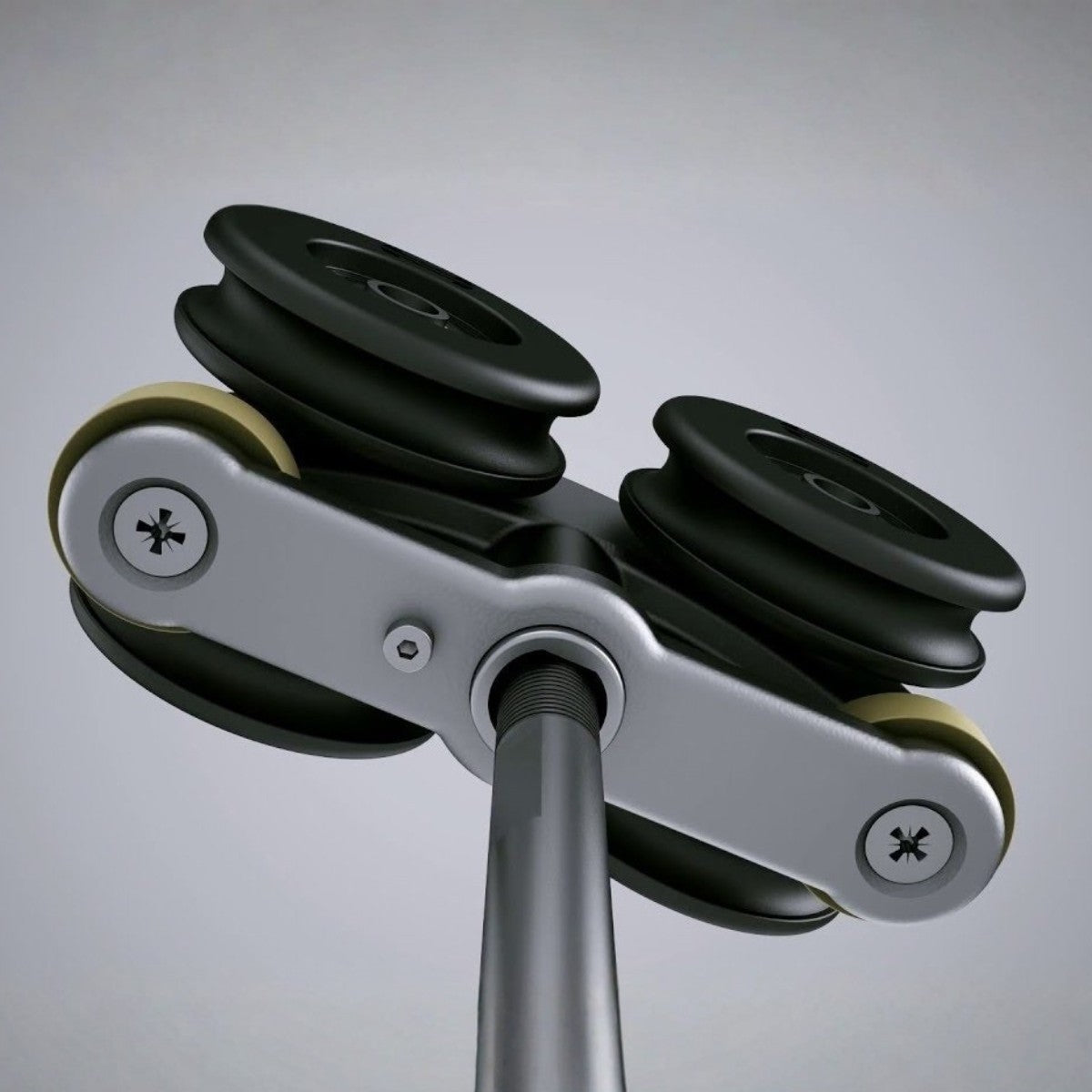

R-Loc
R-Loc ratchet system for fast, accurate height adjustment, without locking the hanger in place with a grub screw.

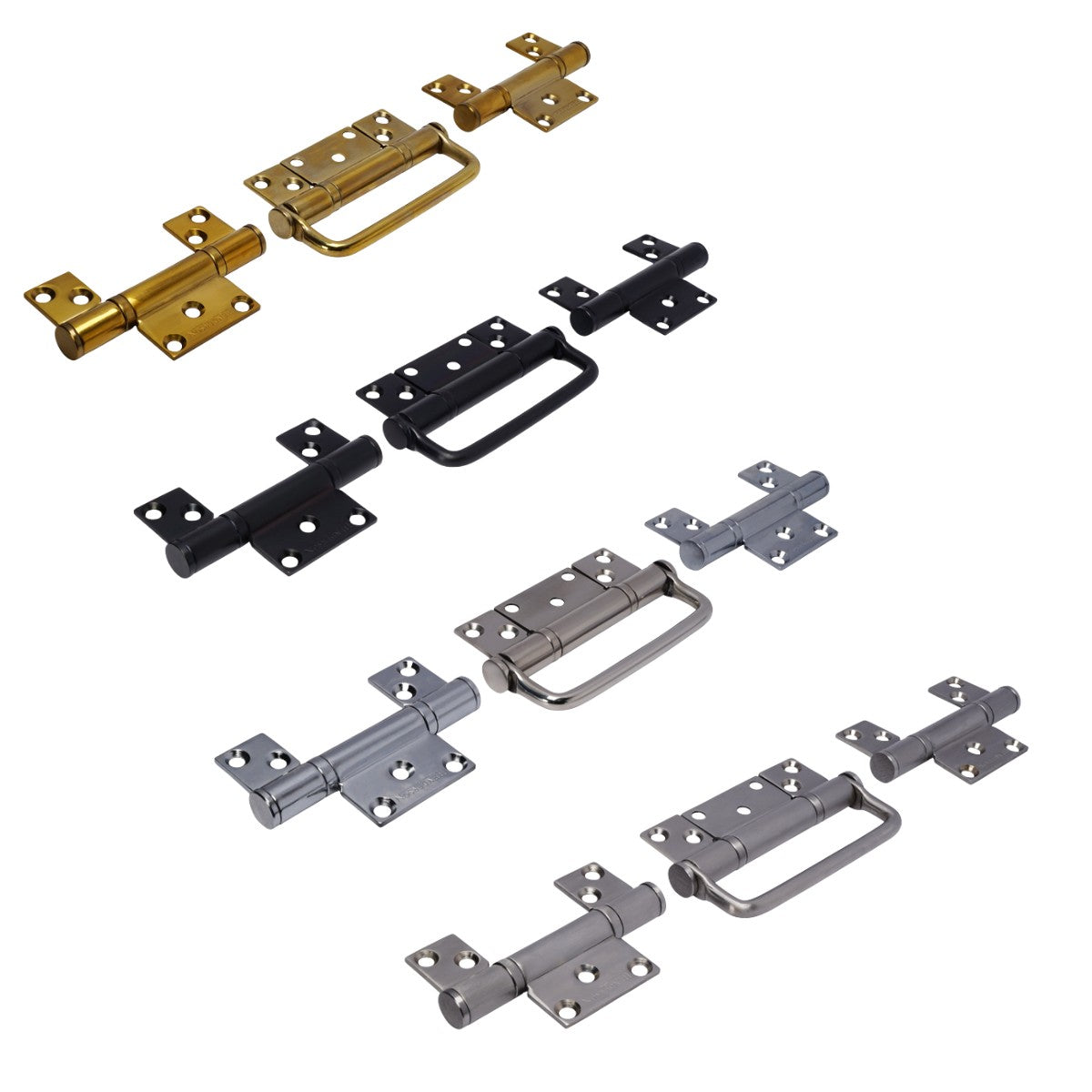

Four finishes
Available in Satin Stainless Steel, Polished Stainless Steel, PVD Stainless Polished Brass and PVD Stainless Satin Black.
Securefold Pro Top Hung
Technical Performance
- Max panel weight: 100kg
- Max panel height: up to 3300mm
- Max panel width: up to 1000mm
- Door thickness: 35–68mm
- System type: Top-hung bifold
- Application: Internal and external use
downloads
Brochure
Download the Securefold Pro brochure for a complete overview of the system, including:
- key features
- configurations
- and performance benefits
All presented in a clear, easy-to-reference format.
Download the latest fitting instructions and drawings for the Securefold Pro range.
Pricing Example
Finishes: SSS, PSS & PPB
Prices may vary but the table below gives an idea of prices for an outward opening Securefold Pro bifold door featuring hardware in one of three finishes (satin stainless steel, polished stainless steel, PVD polished brass), including all hanging components, tracks, weatherseal and bolts.
| Door Configuration | Height of Opening (mm) | ||
|---|---|---|---|
| Less than 2200 | 2201-2500 | 2501-3300 | |
| 2 + 0 | £495 | £545 | £559 |
| 3 + 0 | £559 | £605 | £625 |
| 4 + 0 | £839 | £899 | £935 |
| 5 + 0 | £959 | £1015 | £1075 |
| 6 + 0 | £1235 | £1325 | £1375 |
| 4 + 4 | £1705 | £1819 | £1889 |
| 5 + 5 | £2075 | £2209 | £2295 |
| 6 + 6 | £2455 | £2605 | £2709 |
Finishes Explained:
SSS = Satin Stainless Steel PSS = Polished Stainless Steel PPB = PVD Polished Brass BK = Black
Pricing Example
Finishes: Black
Prices may vary but the table below gives an idea of prices for an outward opening Securefold Pro bifold door featuring hardware in a black finish, including all hanging components, tracks, weatherseal and bolts.
| Door Configuration | Height of Opening (mm) | ||
|---|---|---|---|
| Less than 2200 | 2201-2500 | 2501-3300 | |
| 2 + 0 | £545 | £615 | £635 |
| 3 + 0 | £625 | £695 | £715 |
| 4 + 0 | £945 | £1039 | £1079 |
| 5 + 0 | £1075 | £1169 | £1229 |
| 6 + 0 | £1389 | £1535 | £1595 |
| 4 + 4 | £1985 | £2175 | £2255 |
| 5 + 5 | £2305 | £2545 | £2645 |
| 6 + 6 | £2755 | £3019 | £3145 |
