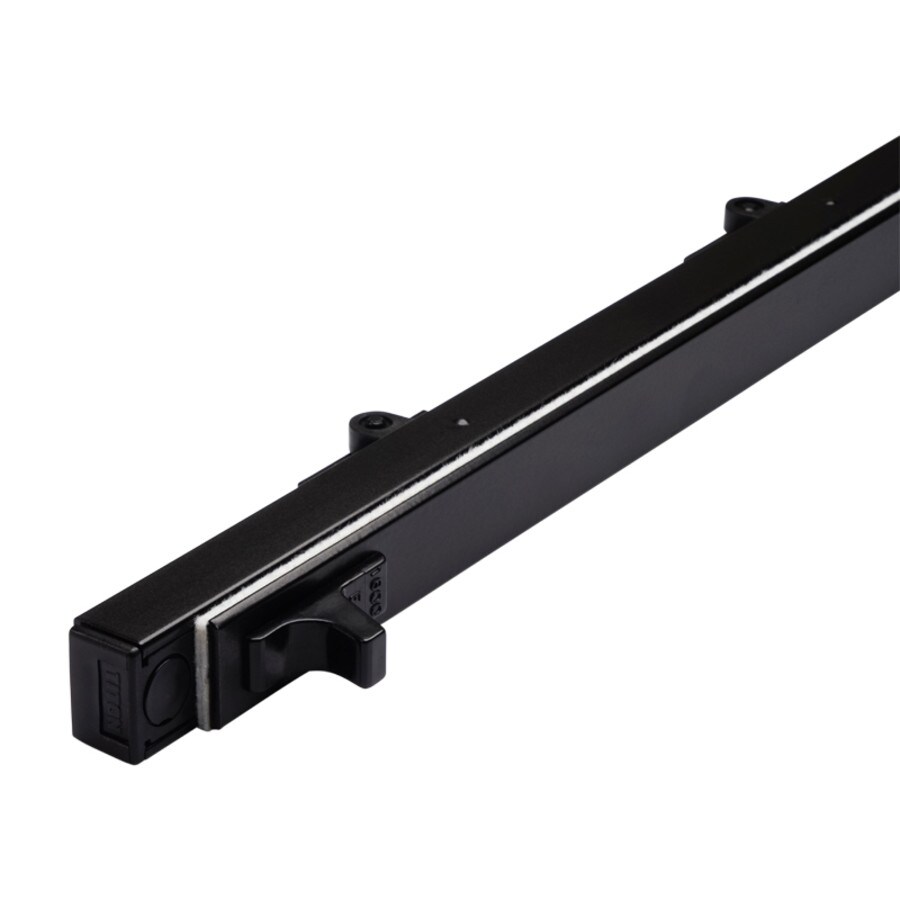

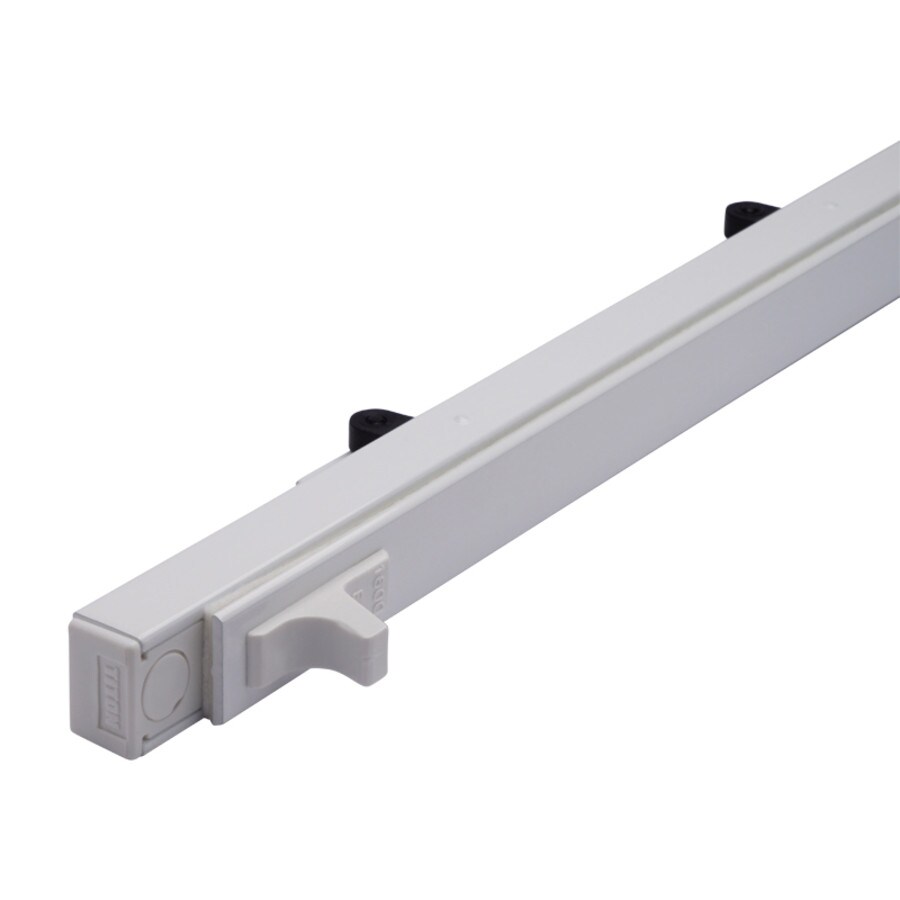

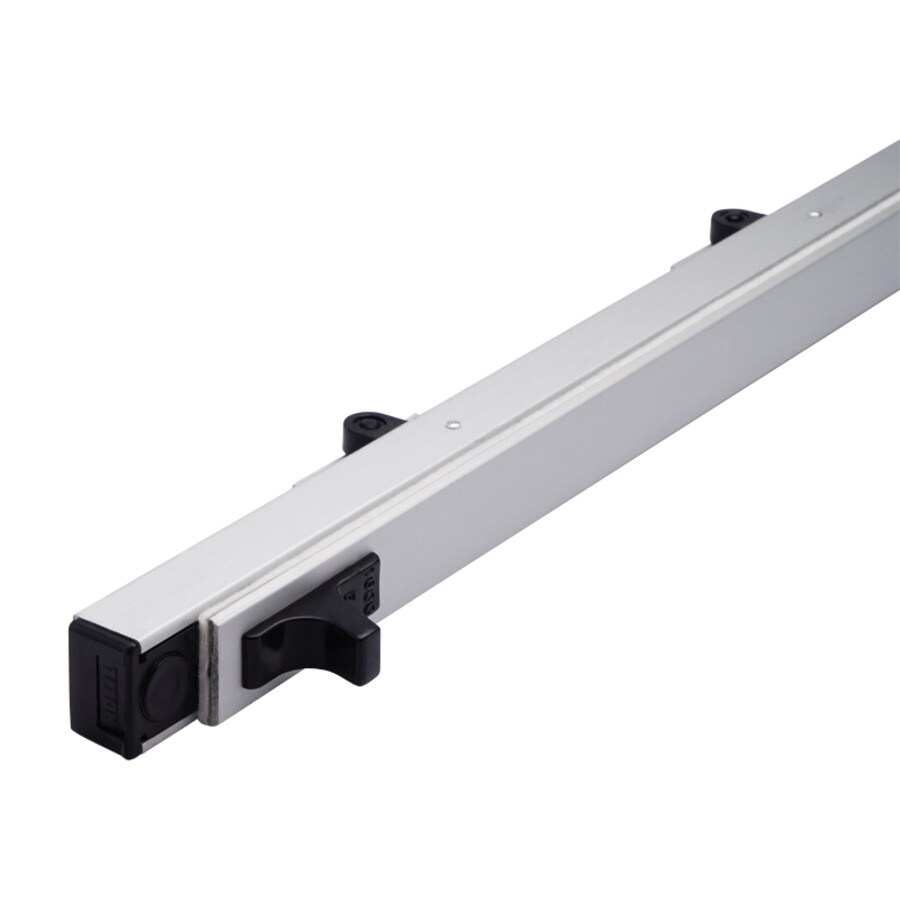

TVS Aluminium Surface Fix Trickle Vent SKU: TVS Aluminium Surface Fix Trickle Vent In Stock 382 Available Pinit Download Image Please select from the options below: Projection Closed-Open : 16.5-22.5mm 16.5-22.5mm Finish : AAL - Anodized Satin Aluminium BK - Black BR - Brown WH - White Length : 255mm 400mm Width : 17mm Equivalent Area : 1600EA mm2 2600EA mm2 Free Area : 2305mm2 4066mm2 Each Quantity discounts available QuantityPrice Quantity -+ £7.98 to £9.56(EX.VAT) Add to Basket Login to your account DescriptionTVS surface fix aluminium trickle vent.Developed for revisions to Part F of the Building Regulations, Ventilation (England & Wales).Felted gasket for increased performance.Controllable T-bar deflects air up or down.Unique linkages ensure constant friction and smooth action.Should be fitted with the TVS Canopy to achieve the EA Air Flow figures.Installed on the inside of the window.SpecificationsProjection Closed-Open:16.5-22.5mmEA Air Flow:TVS200 - 1600mm2, TVS400 - 2600mm2DocumentationTVS200 Technical DWG Drawing: DownloadTVS200 Technical PDF Drawing: DownloadTVS400 Technical DWG Drawing: DownloadTVS400 Technical PDF Drawing: DownloadTVS200V Data Card: Download
