  • ML3120, (AV3) VOGUE Auto Lock, Left Hand, 55mm Back Set, 20mm Face Plate, Square End, Size 1, Silver Finish

ML3120, (AV3) VOGUE Auto Lock, Left Hand, 55mm Back Set, 20mm Face Plate, Square End, Size 1, Silver Finish

SKU: ML3120S-LH-55-1-SV

Description

  • Vogue premium multipoint automatic door lock from Winkhaus.
  • Provides a contemporary look with the cylinder and central gearbox located approx halfway up the door.
  • Often used with a pull handle and thumbturn cylinder to create a contemporary 'slam shut' style door.
  • Innovative magnet only activates the anti 'push back' hook bolts once the door is closed, automatically locking the door and preventing damage to the door frame.
  • Dual hook bolts provide extra security and enhanced weathersealing.
  • Daylatch switch enables temporary release of the locking system for convenient access without a key - e.g. when carrying shopping in from the car.
  • Tested to PAS24 and Secured by Design Approved.

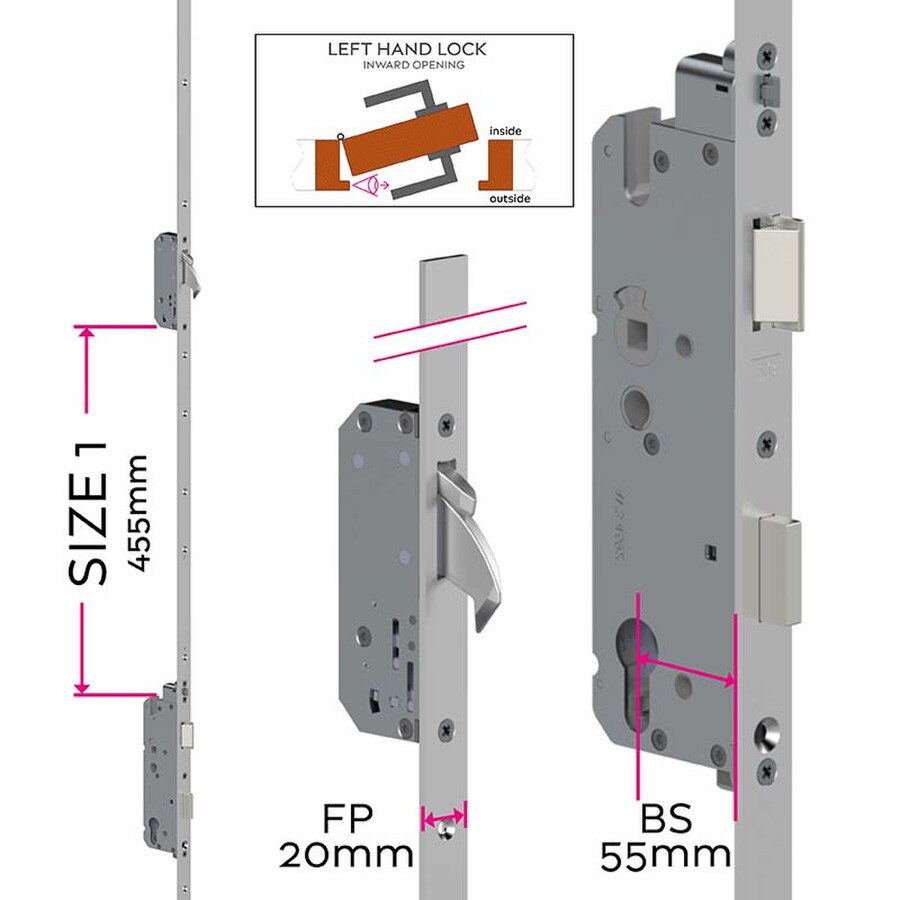

Specifications

  • Handing:Left Hand
  • Backset:55mm
  • Length:2105mm
  • Faceplate:20mm Square End
  • Top Box Height:Size 1 (455mm)
