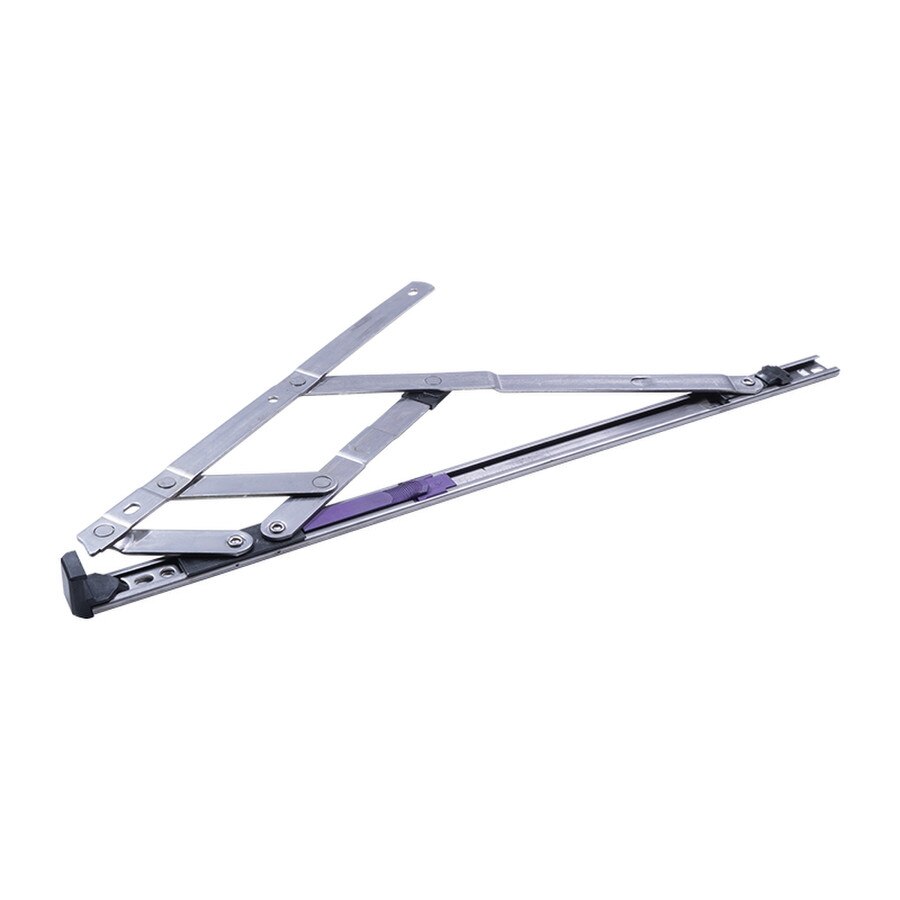

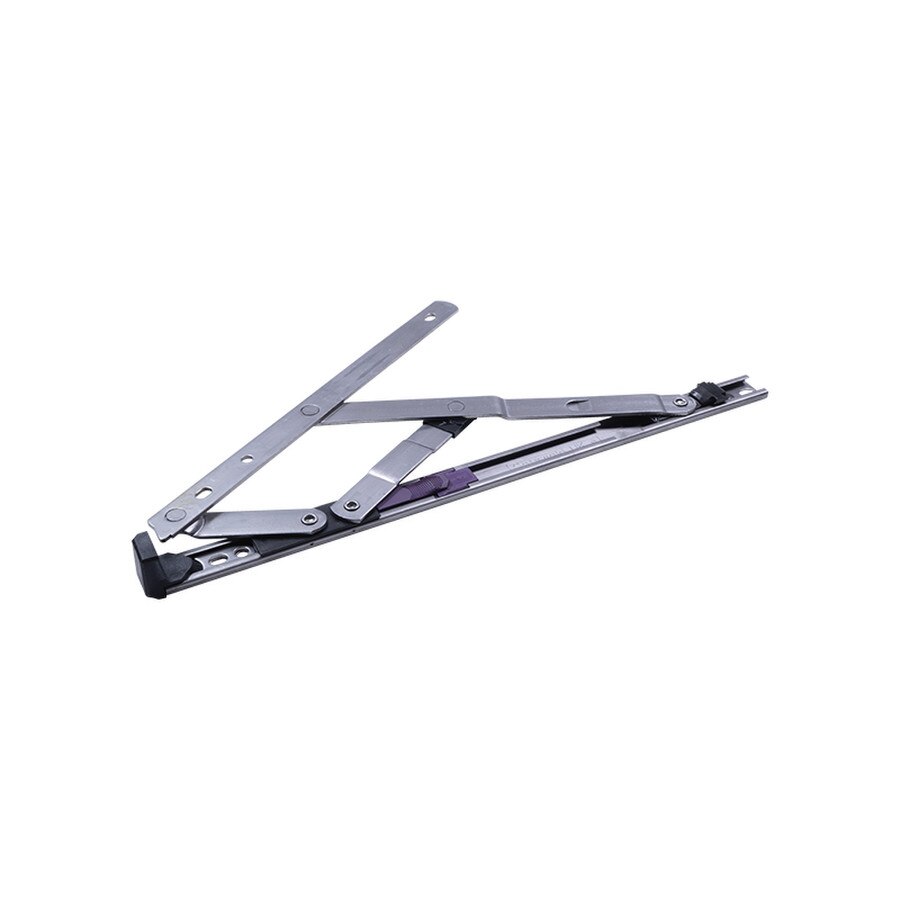

Cotswold 'EZ Easi Clean EGRESS' Hinges - Side Hung SKU: Cotswold EZ Easi Clean Egress Hinges In Stock 332 Available Pinit Download Image Please select from the options below: Size : 311mm 413mm Capacity : 18kg 21kg Type : Side Hung - Egress Easy Clean Material : Ferritic SS (111) Stack Height : 13mm Angle of Opening : 85° 89° Per Pair Quantity discounts available QuantityPrice Quantity -+ £9.78 to £12.63RRP (EX.VAT) Add to Basket Description Cotswold EZ Easi Clean EGRESS Friction Hinges for Side Hung Windows. Allows full opening of window to 90 degrees providing clear egress in excess of 500mm on a 600mm wide sash. Easy to operate thumb catches allow the sash to slide to the easy clean position giving between 100 and 250mm clear opening. Automatically resets to egress position when window is closed. Conforms to BS6375 Parts 1 and 2. You may also need the Phillips Pan Head 4.3mm x 25mm, A2 Stainless Steel Friction Hinge Screws. Use Code: FX-UKF4325-USS.DocumentationOperating Instructions: DownloadFire Escape Certificate: DownloadCT312EZ Technical DWG Drawing: DownloadCT312EZ Technical PDF Drawing: DownloadCT316EZ Technical DWG Drawing: DownloadCT316EZ Technical PDF Drawing: DownloadFire Escape Information: DownloadData Card: Download
