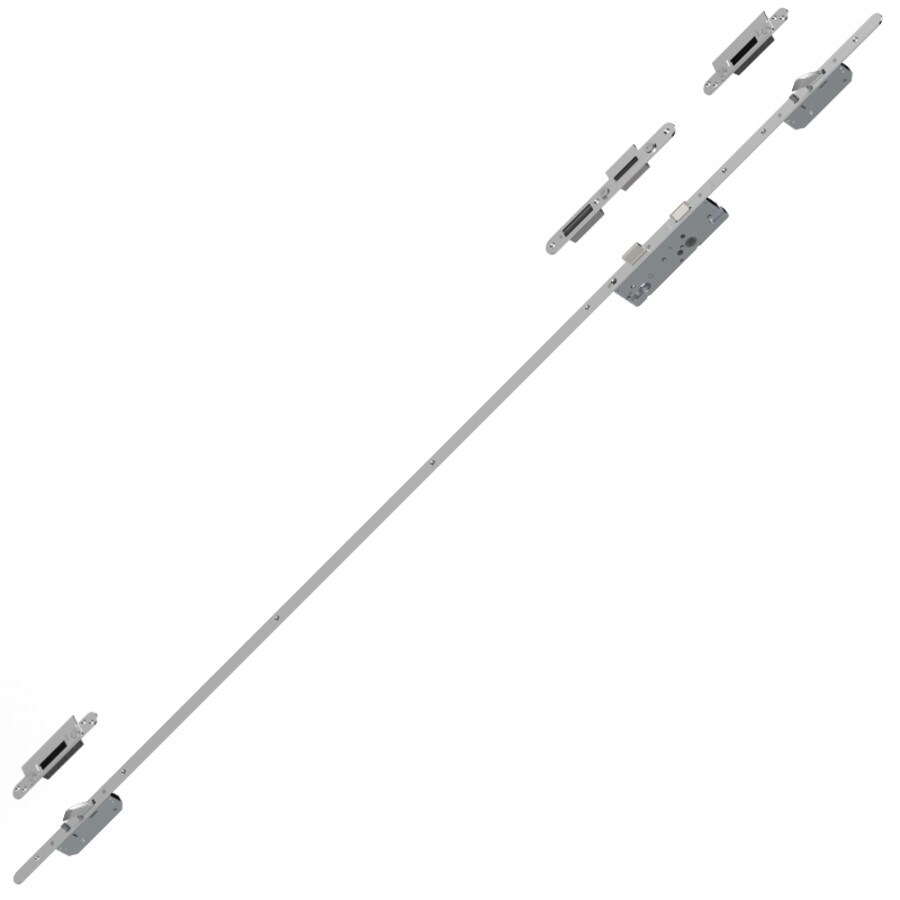

ML80R (AV2) Kits, Right Hand, Heritage Auto Lock, 45mm Back Set, 20mm Radius End Face Plate with 33mm Centre Line Individual Keeps

SKU: ML80R-KIT-45-33-RH

In Stock



Kit Components


  • Heritage standard multipoint automatic 'slam shut' door lock from Winkhaus.
  • Provides a traditional heritage look with the cylinder located approx at shoulder height on the door.
  • Can be used with either a cylinder pull or a pull handle and thumbturn cylinder.
  • Solid anti 'push back' hook bolts automatically trigger and lock upon shutting the door.
  • High performance, strengthened gearbox.
  • Tested to PAS24 and Secured by Design Approved.
  • Right Hand Heritage auto lock system, fires latches when the door closes, the gearbox is located 2/3rds up the door, 45mm backset, 20mm radius end face plate, overall length of 1774mm supplied with 33mm right hand centre line centre dust pocket keep and individual surface adjustable keeps.


  • Guarantee:10 Years
