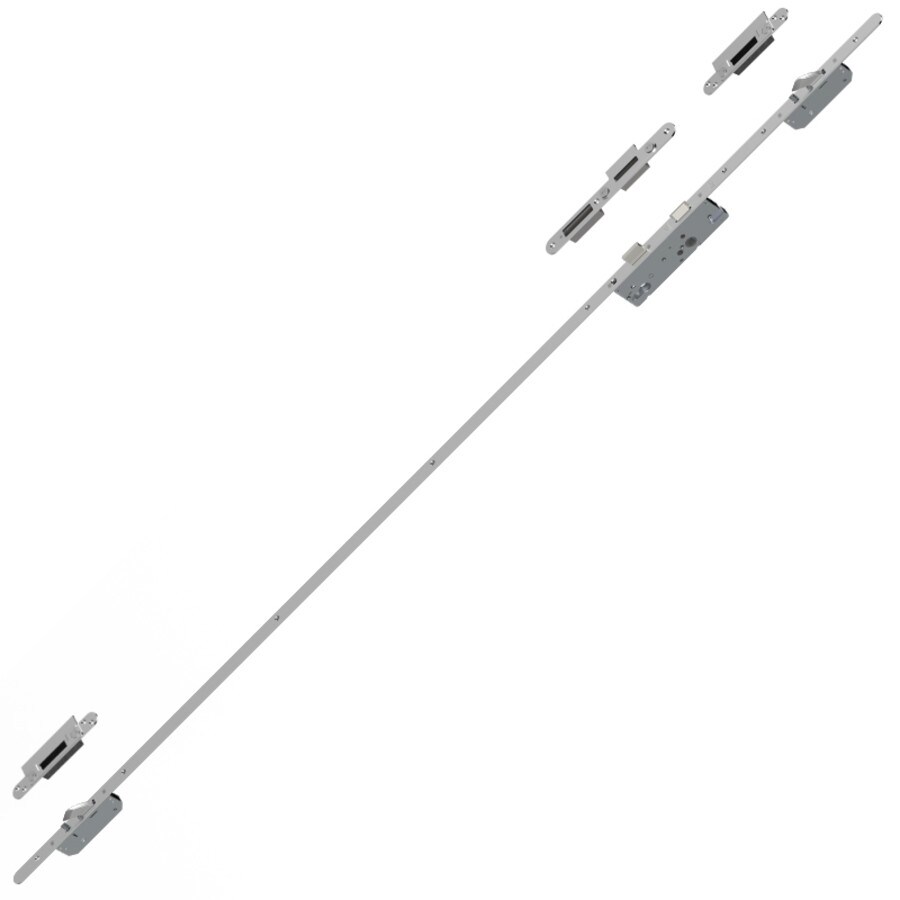

Slam Shut Heritage Door Lock Kit (AV2)
Right Hand
1 x ML80R Lock, 55mm Back Set, 20mm Face Plate Radius End,
1 x MK9 Keep, 33mm Centre Line
2 x MK7-TAB Keeps
Silver

SKU: ML80R-KIT-55-33-RH

Description

  • Heritage standard multipoint automatic 'slam shut' AV2 door lock kit from Winkhaus.
  • Provides a traditional heritage look with the cylinder located approx at shoulder height on the door.
  • Can be used with either a cylinder pull or a pull handle and thumbturn cylinder.
  • Solid anti 'push back' hook bolts automatically trigger and lock upon shutting the door.
  • High performance, strengthened gearbox.
  • Tested to PAS24 and Secured by Design Approved.
  • Right Hand Heritage auto lock system, fires latches when the door closes, the gearbox is located 2/3rds up the door, 55mm backset, 20mm radius end face plate, overall length of 1774mm supplied with 33mm right hand centre line centre dust pocket keep and individual surface adjustable keeps.
