Standard Single Door Lock
Right Hand
1 x ML60R Lock, 45mm Backset, 20mm Faceplate Radius End, Size 2
1 x MK9 Keep, 33mm Centre Line
2 x MK7-FLU Keeps
Silver

SKU: ML60R-KIT-45-33-2-RH

Description

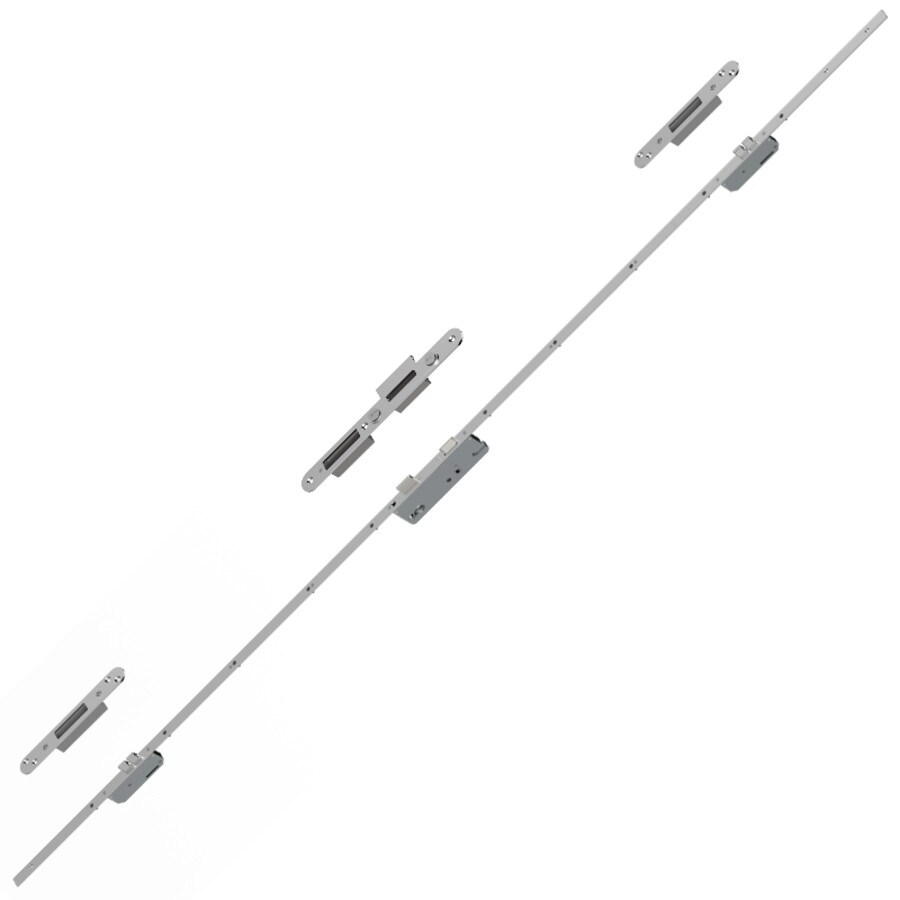

  • Winkhaus multipoint door lock kit for single doors.
  • Twin tapered deadbolts provide low operating force making door easy to lock whilst providing excellent weathersealing.
  • High performance, strengthened centre gearbox.
  • Successfully tested on our Part Q Scheme.
  • Tested to PAS24 and Secured by Design Approved.
  • This kit comprises a ML60 radius end lock measuring 1770mm Size 2 (600mm top box) with a backset of 45mm, and comes with a 33mm right hand centre dust pocket keep and individual flush adjustable keeps.

Documentation
