Winkhaus Multipoint Lock Problems & Troubleshooting Guide

Published on June 30, 2023 at 3:10:18 PM PDT June 30, 2023 at 3:10:18 PM PDTth, June 30, 2023 at 3:10:18 PM PDT

As a vital component in securing a property, it’s essential that multipoint locking systems are installed to function correctly.

There are a number of potential issues with multipoint locking systems that may occur from time to time, ranging from misalignment to broken gearboxes.

As a primary UK Distributor of Winkhaus Locks, Coastal have compiled a handy troubleshooting guide for the AV2, AV3 and Thunderbolt locks, helping you to identify and resolve any problems that may occur.


Winkhaus AV2

Available in contemporary (ML120) and heritage (ML80) designs, the Winkhaus AV2 autoLock is an automatic locking system that operates as soon as the door is closed.

Anti ‘push-back’ hookbolts throw automatically when the door is shut, ensuring claw engagement and security to prevent the lock being pushed back.

Some common issues and suggested remedies for the AV2 autolock are outlined below:

SYMPTOMS POSSIBLE CAUSE SUGGESTED REMEDY
Door closing difficulty
(appearing that the hooks are firing prematurely)
Dry contacting snibs Apply light lubricant to the latch and aperture, operating snibs and lock hook box apertures and keep contacting surface
Wide air gap to the lock side Adjust the hinges to give an optimum 4mm gap between keep and lock faceplate
As above with flush door Keep strikes moving due to excessive routing Pack beneath the strike plates
Stiff Key Operation Door not latch correctly
(This can be proven by temporarily holding the hooks back with a suitable tape)
Relieve pressure on the hooks by gently pulling on the door extenally or pushing internally to operate
Incorrect adjusted keeps
(The latch is the compression point, the hook sides should not contact the keeps)
Adjust keeps accordingly
Deadbolt fouling within the keep Adjust keeps accordingly
Slow key operation, allowing the hooks to contact the keeps Relieve pressure on the hooks by gently pulling on the door externally or pushing internally to operate
Unable to operate the locking system (blocked) Hooks fouling under the keeps
Door dropped or incorrectly position keeps
Attempt to lift the door leaf whilst operating the lock (see door fitting guide)
Excessive air gap to the lock side Adjust the door leaf closer to the lock side (see door fitting guide)
Hooks and latch not throwing Lock drive strip fouling on routing etc Locate and relieve cause

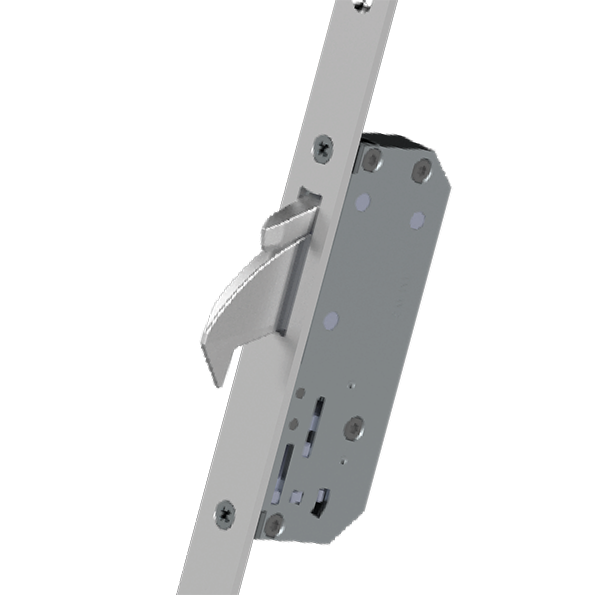

Winkhaus AV3

Available in contemporary (ML3120) and heritage (ML480) designs, the Winkhaus AV3 Slam Shut Autolock is an automatic multipoint locking system with independently acting hooks.

When the door is closed, duo hookbolts are triggered by a magnetic release in the centre keep to secure the door.

Some common issues and suggested remedies for the AV3 autoLock are outlined below:

SYMPTOMS POSSIBLE CAUSE SUGGESTED REMEDY
Door closing difficulty Dry latch Apply light lubricant (GLS200) to the latch, aperture and keep contacting surface
Stiff Key Operation Door not latch correctly
(This can be proven by temporarily holding the hooks back with a suitable tape)
Relieve pressure on the hooks by gently pulling on the door extenally or pushing internally to operate
Incorrect adjusted keeps
(The latch is the compression point, the hook sides should not contact the keeps)
Adjust centre keeps accordingly
Unable to operate the locking system (blocked) Hooks fouling under the keeps. Door dropped or incorrectly position keeps Attempt to lift the door leaf whilst operating the lock (see door fitting guide)
Excessive air gap to the lock side Adjust the door leaf closer to the lock side (see door fitting guide)
Door not latching (In secure mode) Lock drive strip fouling on routing etc Locate and relieve cause
Misaligned centre keep Check centre lines (see fitting guides)
Magnet stuck in Check operation
TAFA day switch engaged Disengaged
Door not releasing (In passive mode - Day switch engaged) Latch keep movement impeded Check and relieve
Air gap to tight (Triggering operating snib) Adjust air gap

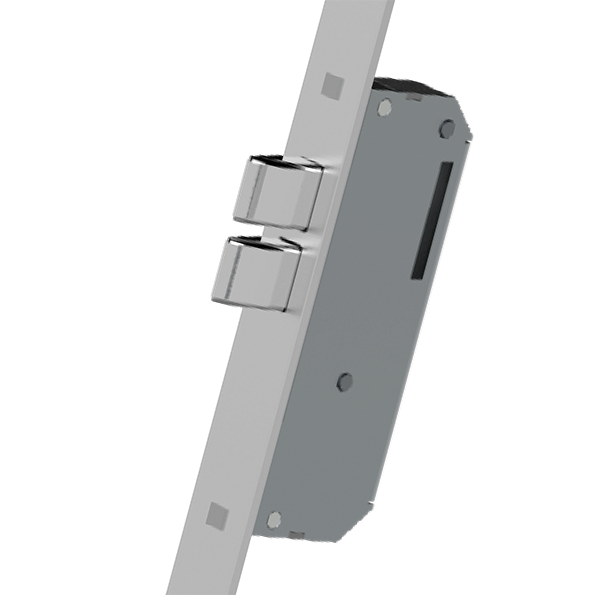

Winkhaus Thunderbolt

Available in a range of designs to meet your door style (ML60R, ML66S, ML60S and ML70S) the Winkhaus Thunderbolt Lock has 5 deadbolts as standard for maximum peace of mind.

High security nickel plated deadbolts fully engage the keep and prevent the sash and frame from being forced apart.

Some common issues and suggested remedies for the Winkhaus Thunderbolt are outlined below:

SYMPTOMS POSSIBLE CAUSE SUGGESTED REMEDY
Door closing difficulty Dry latch Apply light lubricantion to the latch, aperture and keep contacting surface
Stiff to lift handle Debris within the routing of the faceplate Remove lock and check
Incorrectly adjusted keeps
(Hooks, bolts or deadbolts could be hitting the frame)
Adjust keeps accordingly
Excessive air gap to the lock side Seek advide from qualified door fiiter
Handle is drooping or does not retract the lock The lock has suffered excessive load Source a replacement lock
Door not latching Lock drive strip fouling on routing etc. Locate and relieve cause
Misaligned centre keep Check centre lines (see door fitting guide)
Door has dropped on its hinges Adjust hinges accordingly
Door does not unlock Door has dropped on its hinges Adjust hinges accordingly

Winkhaus Multipoint Locks With Coastal Group

From ordering to installation – Coastal make multipoint locks easy.

Coastal can help you to unlock huge time saving benefits, achieving multiple door styles and sizes with just one mortice preparation detail using the ‘Family Of Locks Concept’.

Want to learn more about how we can speed up your multipoint lock machining process? Click here to view our blog.
