Defender Standard Friction Hinges | Side Hung
Defender Standard Friction Hinges | Side Hung
Defender Standard Friction Hinges | Side Hung

Non Coastal

Defender Standard Friction Hinges | Side Hung

£10.45
In stock
Price shown is exclusive of VAT
SKU: DS12-FC-FSS

High-performance friction hinge for side-hung windows. Improved weathersealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm to meet BS 6375-1:2009 performance of windows.

This item is sold as a pair

Size:305mm
Capacity:22kg - 60°
Quantity:

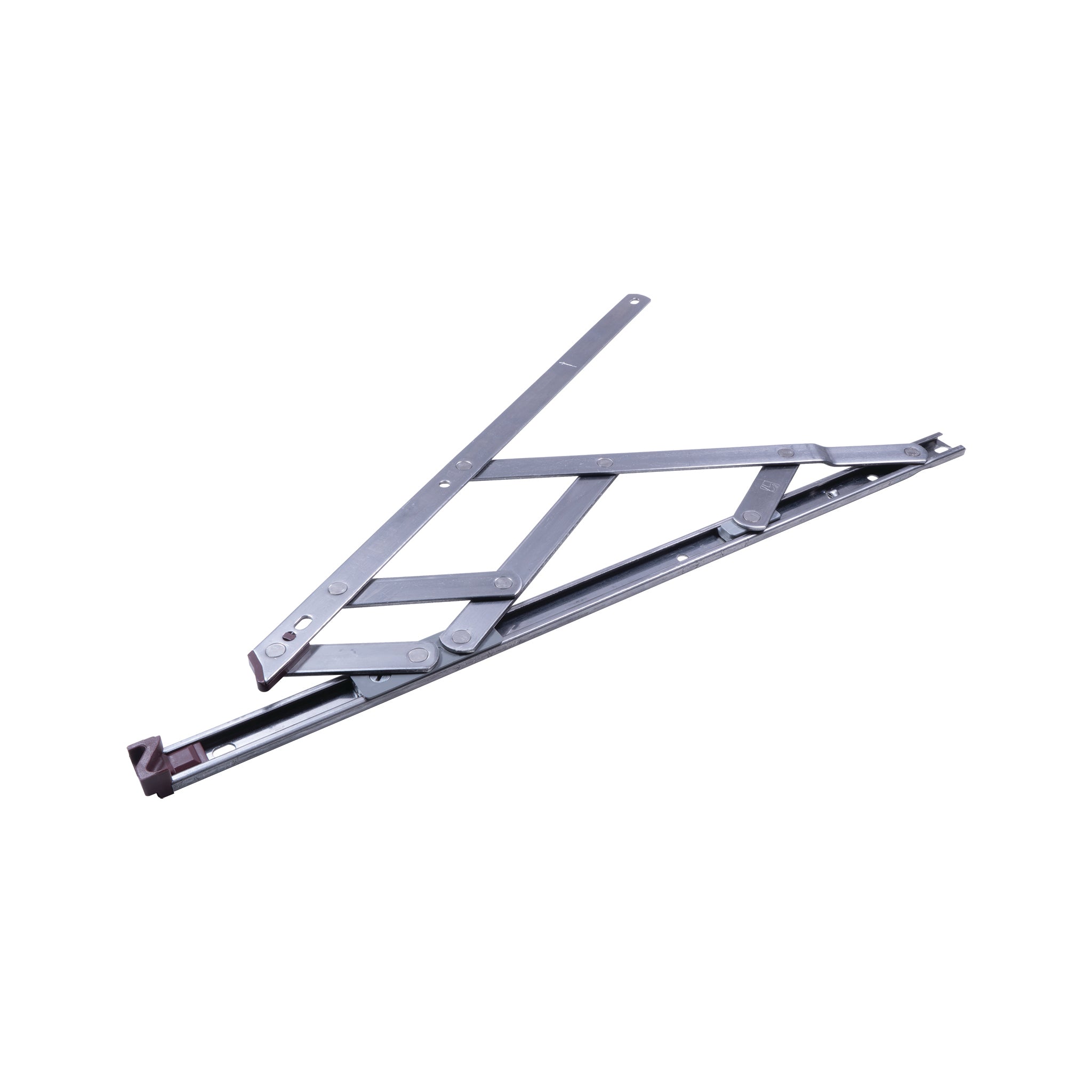

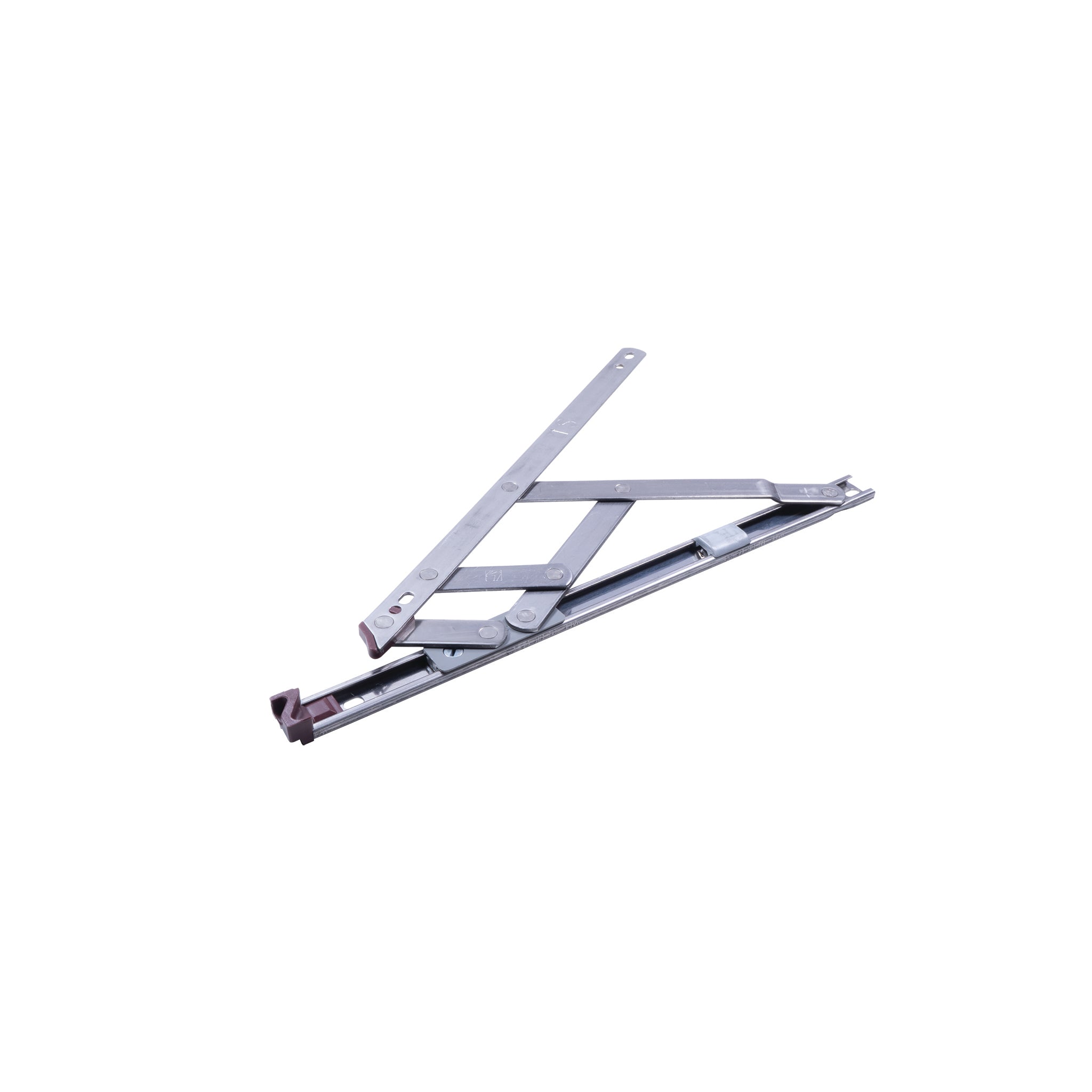

  • High-performance friction hinge for side-hung windows.
  • Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm to meet BS 6375-1:2009 performance of windows.
  • Lipped slider for enhanced smooth operation.
  • Easy friction adjustment without metal-to-metal contact.
  • Stack height on all 3 versions is 13mm with a 60° opening.
  • Unique robust cam friction device eliminates any risk of friction screw misuse.
  • Tested to 30,000 cycles

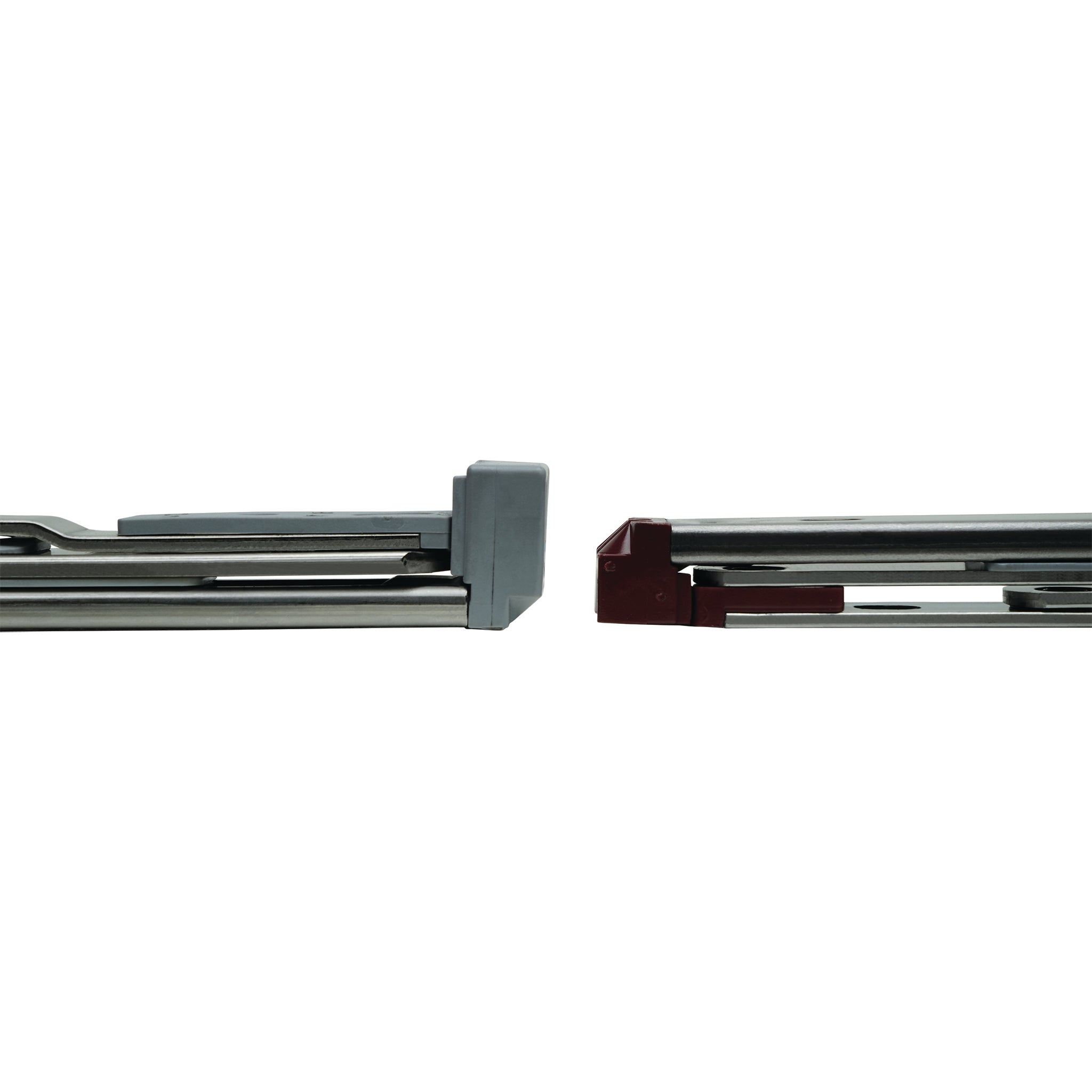

  • Flush cap hinges are designed for use on windows where only the hinge style is machined for friction hinges.
  • The projecting cap hinge can only be used on fully profiled windows such as Leitz, Oertli, Whitehill & Coastal High-Performance Flush and Stormproof Windows, where the euro grooves are machined all around the casement.
  • You may also need the Phillips Pan Head 4.3mm x 25mm, A2 Stainless Steel Friction Hinge Screws. Use Code: FX-UKF4325-USS.
