WINKHAUS

Handed Continuous Centre MPL Door Keeps | MK10

£10.12
Out of stock Works with MK12 & MK26
Price shown is exclusive of VAT
SKU: MK10-22-RH-SV

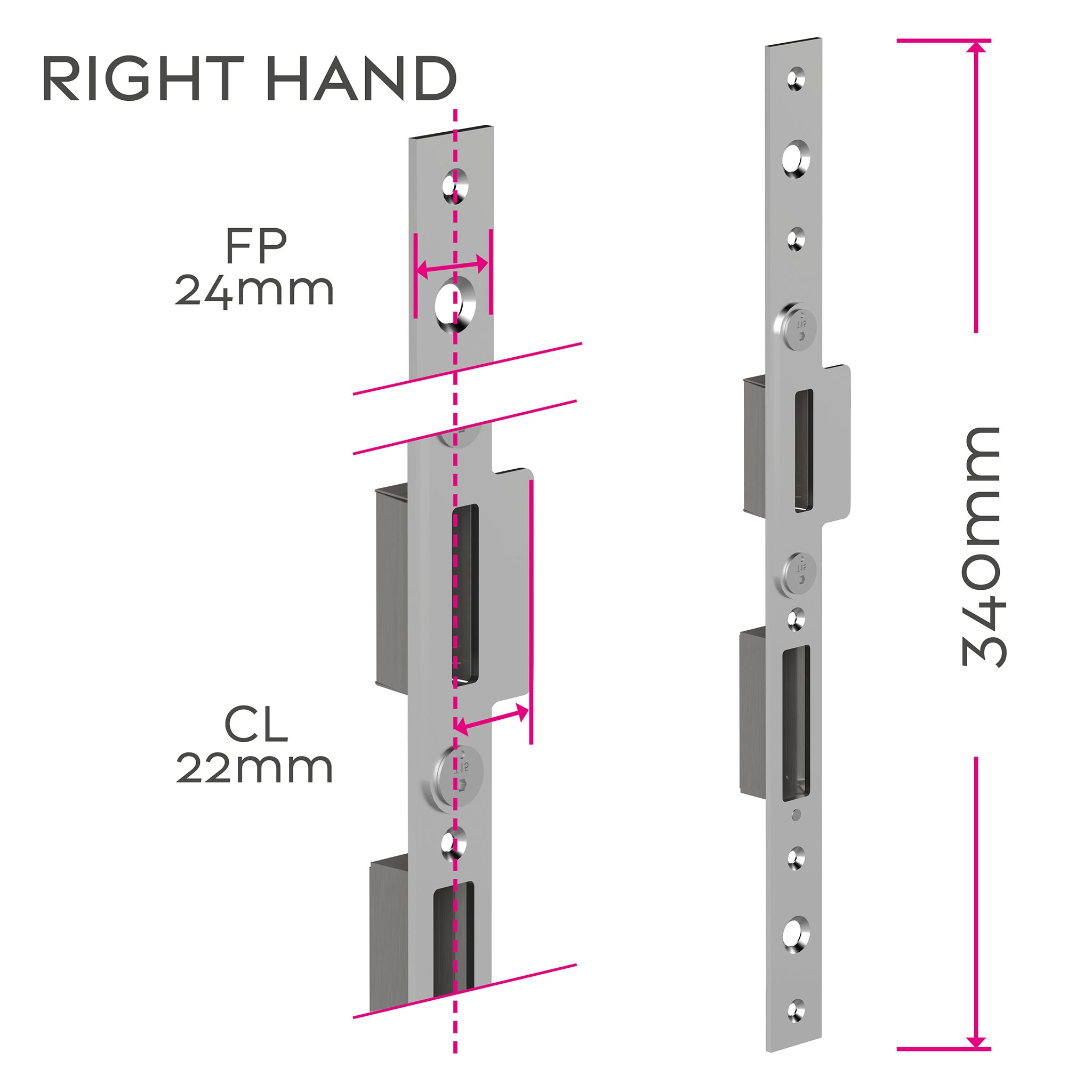

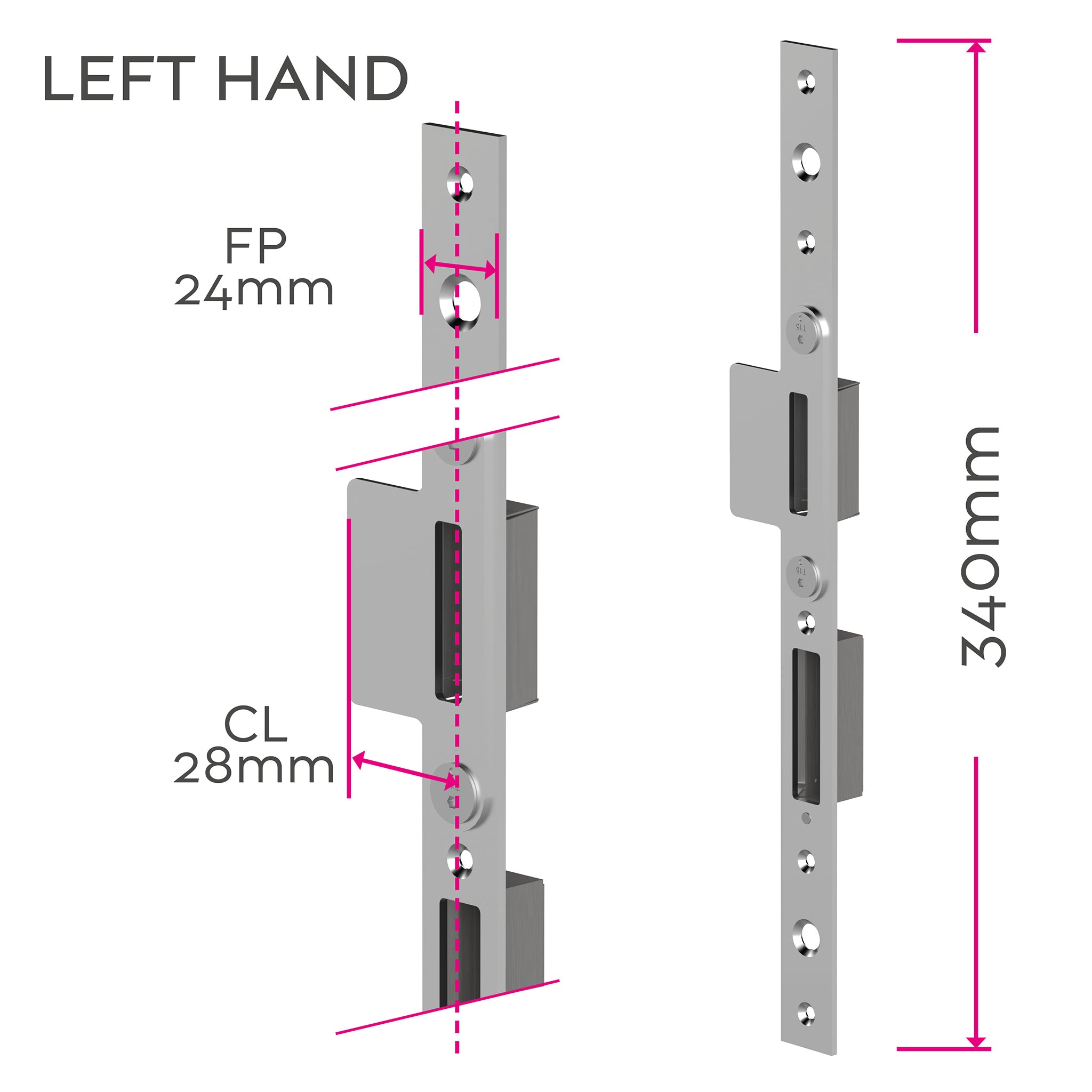

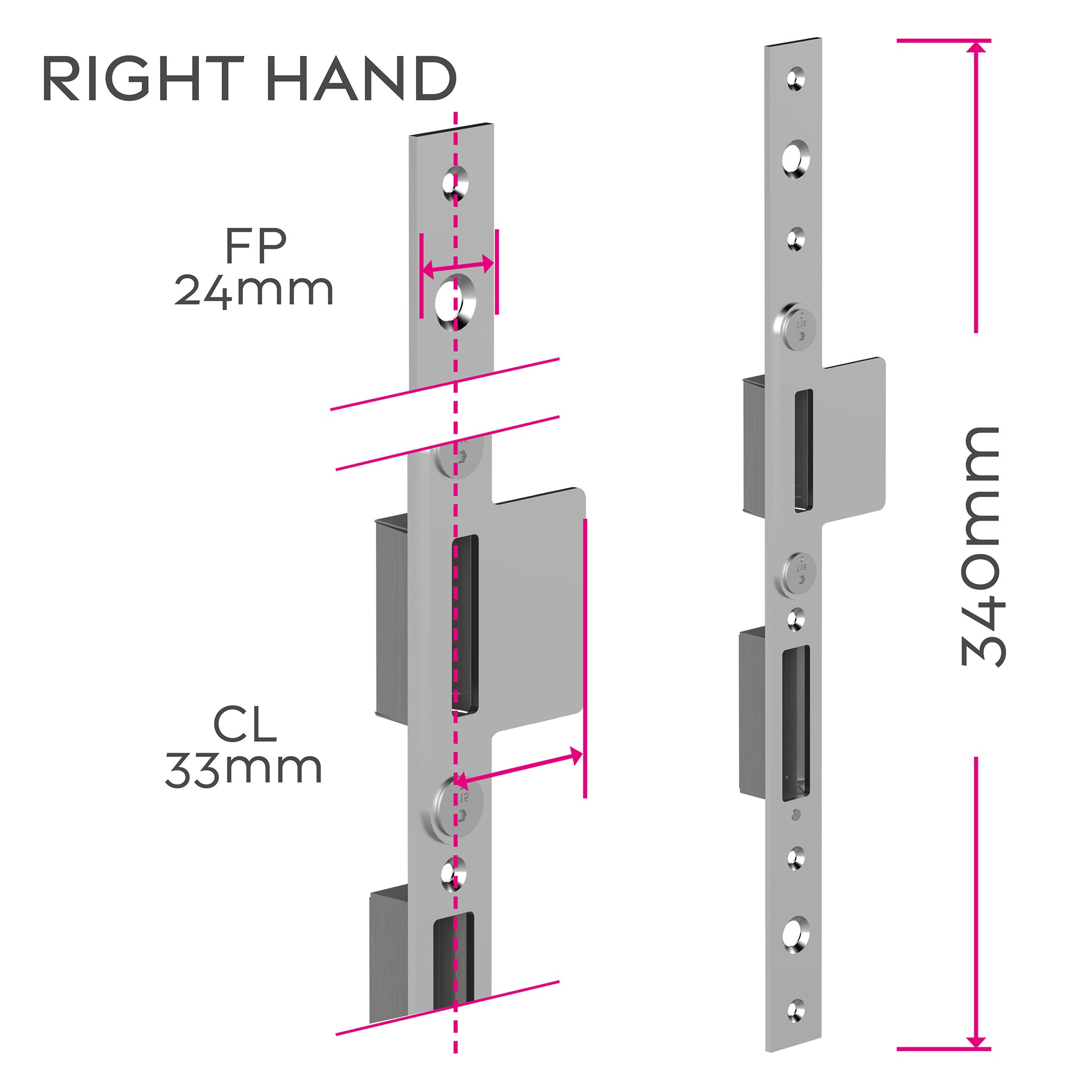

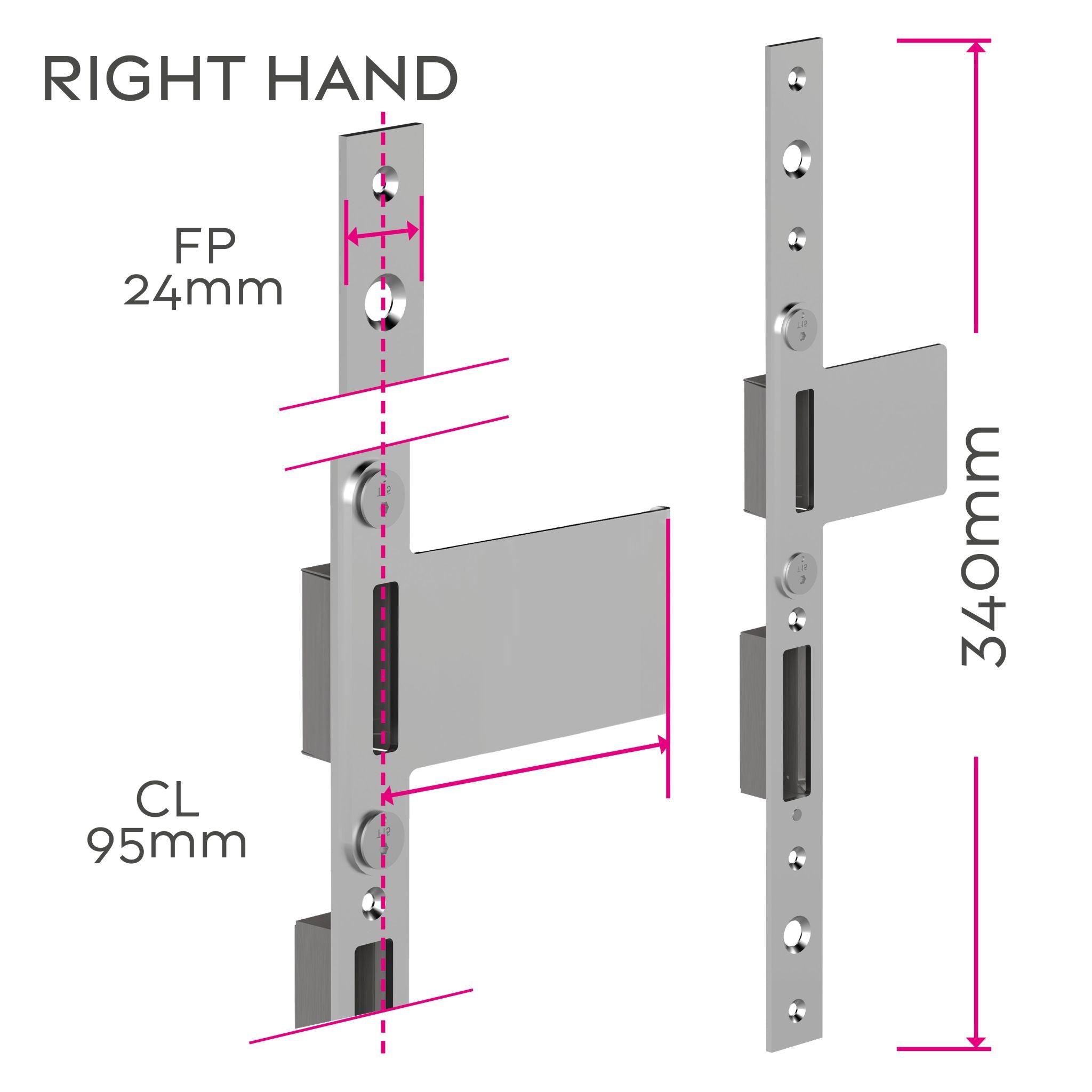

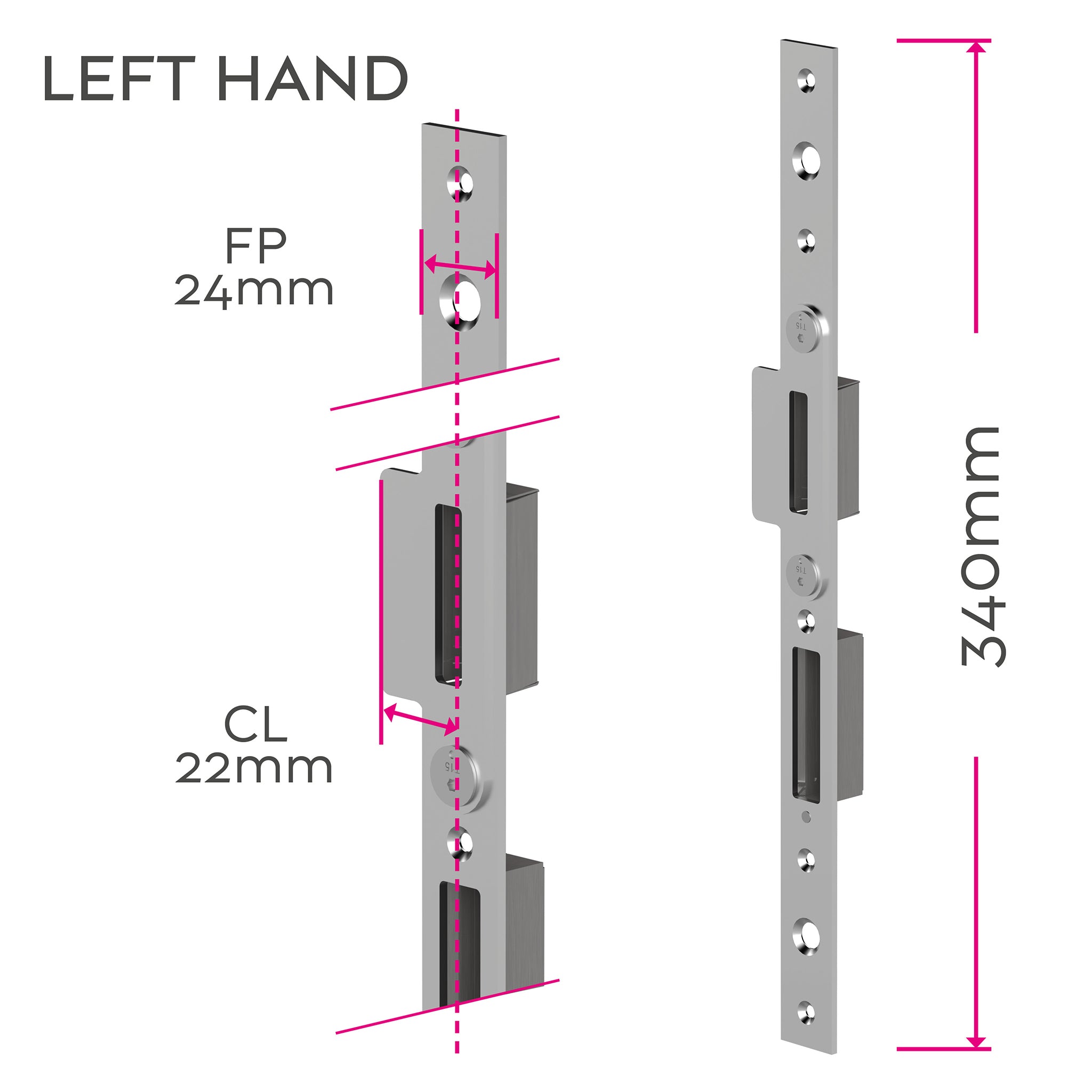

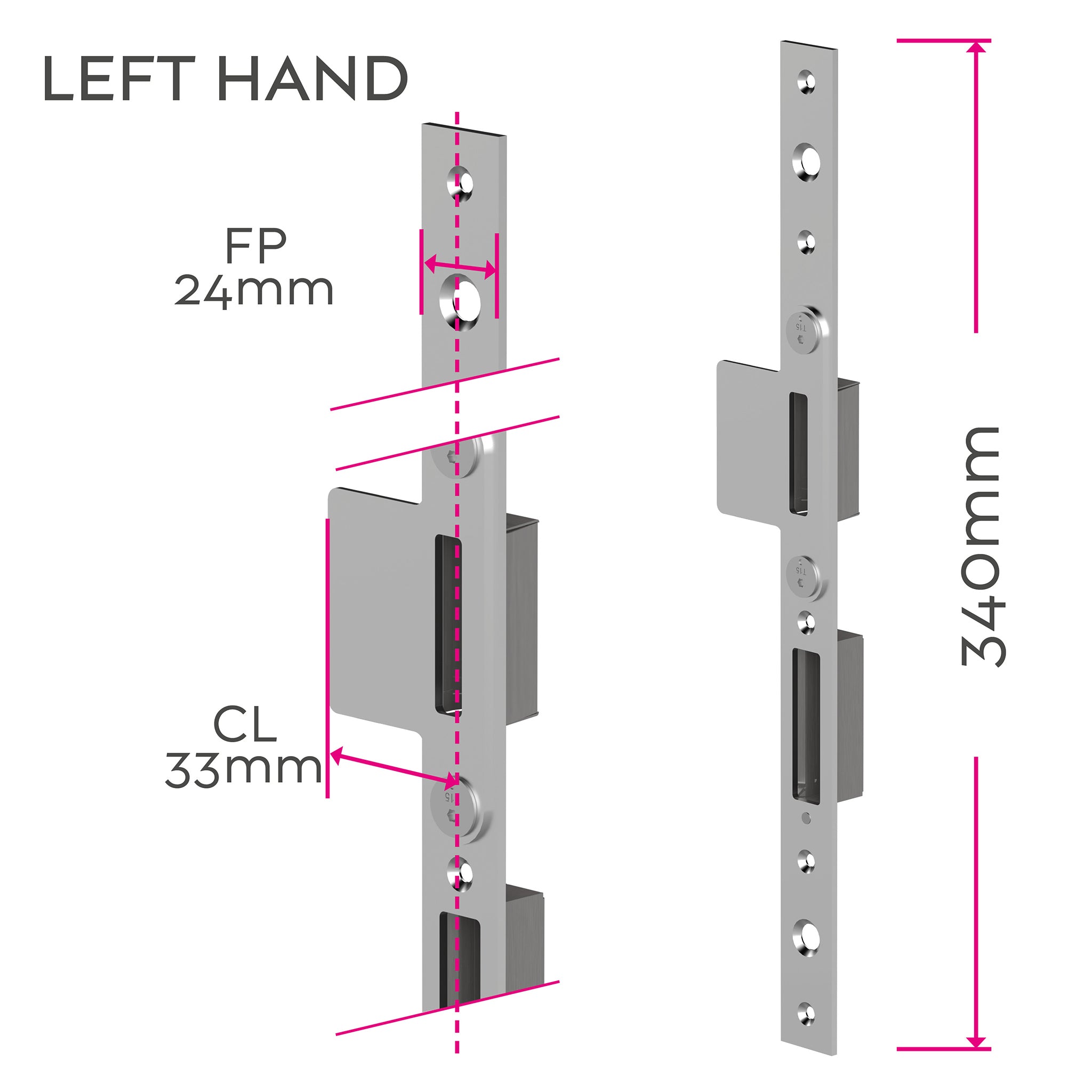

The MK10 Full-length surface adjustable keep set for Size 1 or Size 2 multipoint door locks. Keeps are butted together using the locator tab at the rear of the faceplate to form a continuous keep. The MK10 is the centre part of the keep set available with different centre lines. Select the appropriate MK26 set to complete the continuous keep (sold separately).

This item is sold individually

Handing:Right Hand
Centre Line:22mm
Quantity:
  • Full-length surface adjustable keep set for Size 1 or Size 2 multipoint door locks.
  • Keeps are butted together using the locator tab at the rear of the faceplate to form a continuous keep. The MK10 is the centre part of the keep set available with different centre lines.
  • Select the appropriate MK26 set to complete the continuous keep (sold separately).
  • You will need to order 1 x MK26 and 1 x MK10 (left or right-hand) to make up your keep set per door.
  • Enables quick installation, as you need to router out one continuous groove to locate the keep set.
  • NOTE: MK26-2 is only suitable for use with Size 2 locks, where the distance between the centre and top gearboxes is 600mm, whereas MK26-1 is only suitable for use with Size 1 locks, where the distance between the centre and top gearboxes is 455mm.
  • Winkhaus product code for the right-hand 22mm centre-line keep is 4930258.
  • Winkhaus product code for the right-hand 28mm centre-line keep is 4931090.
  • Winkhaus product code for the left-hand 33mm centre-line keep is 4930602.
  • Winkhaus product code for the left-hand 22mm centre-line keep is 4930257.
  • Winkhaus product code for the left-hand 28mm centre-line keep is 4931089.
  • Winkhaus product code for the right-hand 33mm centre-line keep is 4930605.
