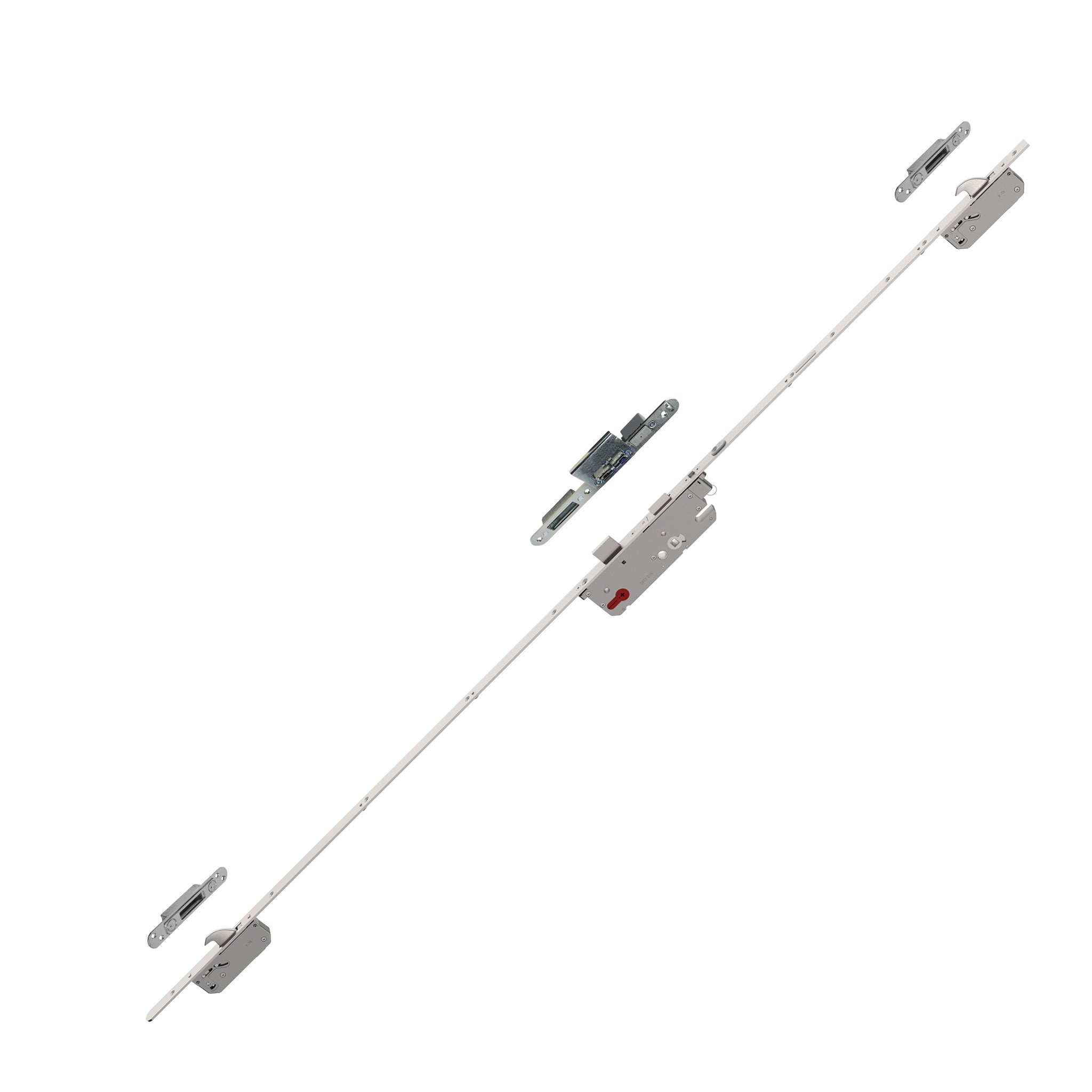

Standard Style Slam Shut AV4 KITS | Silver Passivated | ML4120

WINKHAUS

Standard Style Slam Shut AV4 KITS | Silver Passivated | ML4120

£150.53
In stock ML4120 (AV4) Standard Style
Price shown is exclusive of VAT
SKU: ML4120S-KIT-45-1-LH

The ML4120 is a Winkhaus AV4 standard multipoint door lock Kits, an automatic locking system locking automatically when you pull the door closed via gravity-driven hooks without the need to lift a handle or use a key. Left or right-hand, Size 1 (455mm) in either a 45mm or 55mm backset, 20mm face plate with square ends. KITS come complete with locks and associated keeps.

This item is sold as a kit

Handing:Left Hand
Lock Backset:45mm
Quantity:
  • The ML4120 is a Winkhaus AV4 standard multipoint door lock Kits, an automatic locking system locking automatically when you pull the door closed via gravity-driven hooks without the need to lift a handle or use a key.
  • Left or Right hand, either a 45mm or 55mm backset, 20mm face plate with square ends.
  • Size 1 (455mm) from the top of the gearbox to the underside of the top locking point.
  • Magnet doesn't activate hookbolts until the door is fully closed, reducing the risk of damage to the door frame.
  • Optimised hook design provides the widest operational tolerances, reducing the need to adjust the lock throughout the life of the door.
  • The lock is non-handed, with 50% parts reduction, simplifying your ordering and inventory management. The latch can be altered by releasing a screw in the rear of the gearbox, then rotating the latch. The centre keep is handed.
  • 40% lower operating forces than the AV2, making it easy to operate.
  • Testing to and compliant with the requirements of PAS24:2022 and Secured by Design.
  • Suitable for Composite, Timber, Aluminium and UPVC doors.
  • KITS come complete with locks and associated keeps.
