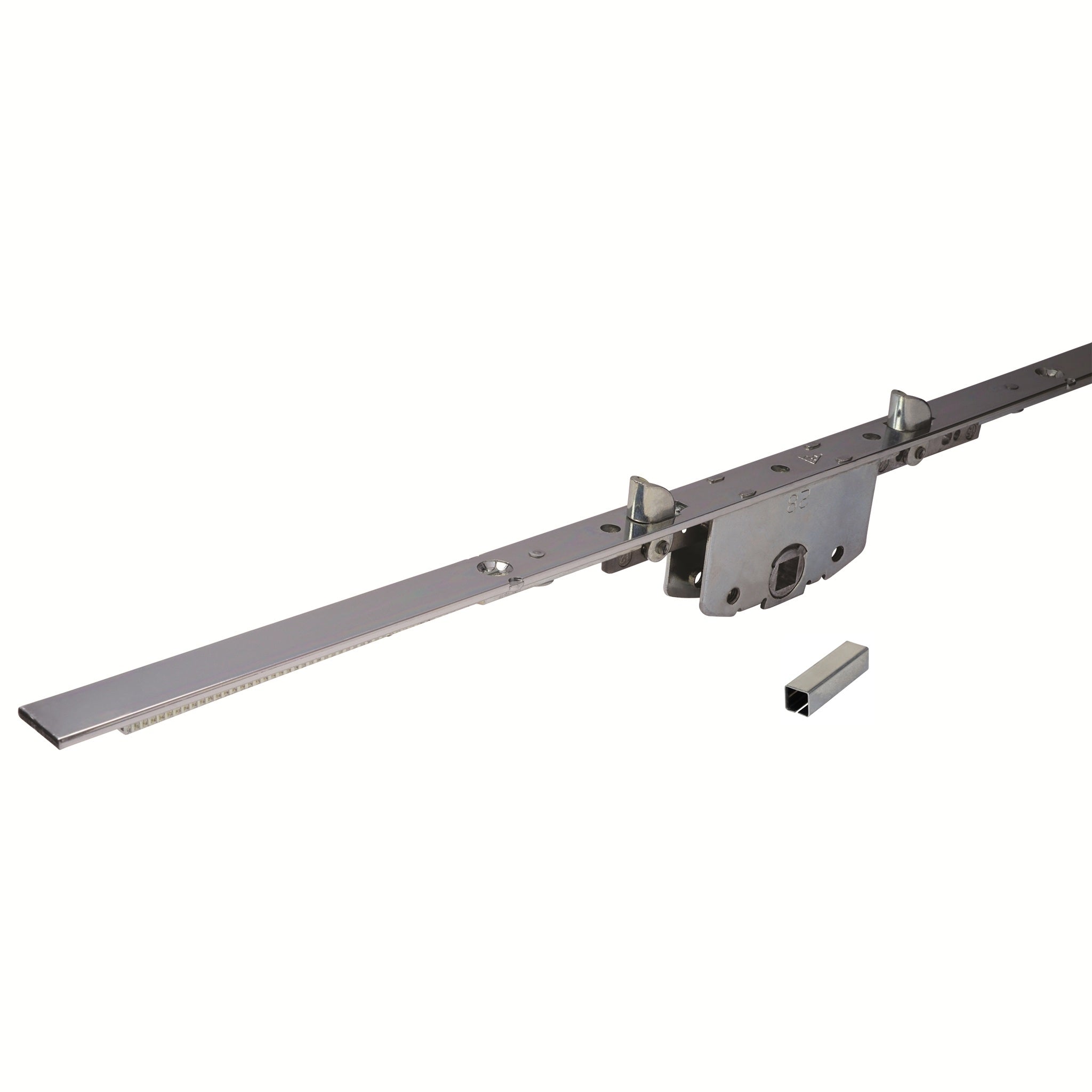

Tritus IPA Ear Type Espagnolette Bolt Kits | Silver Passivated

Non Coastal

Tritus IPA Ear Type Espagnolette Bolt Kits | Silver Passivated

£18.25
In stock
Price shown is exclusive of VAT
SKU: FE0440-KIT-SV

Tritus IPA 12mm, 15mm or 17mm Ear type window espagnolette bolt for the Tritus IPA Flush Casement Window System. Quick to install within the Tritus groove in the sash.

This item is sold as a kit

Ear Type:12mm
Size:440mm
Quantity:
  • 12mm, 15mm or 17mm Ear type window espagnolette bolt for the Tritus IPA Flush Casement Window System.
  • Quick to install within the Tritus groove in the sash.
  • Croppable up to 60mm from either end.
  • All lengths are fitted with either a 12mm or 15mm ear bolt and use a 17mm faceplate, with the lock case central to the length of the faceplate.
  • All sizes have a 28mm backset and 2 points of locking, apart from the 17mm ear version, which has a 17mm ear and a 40mm backset with 3 points of locking.
  • Supplied with a 7-8mm spindle increaser to suit most espag handles.
  • Note: If you are using these espagnolette bolts on a pair of flush casements without a centre mullion, you will need to remove the ear bolts, and attach a FC4050 shootbolt extension set. Please refer to the sash height measurements to choose the correct length bolt when using the shootbolt extension sets.
