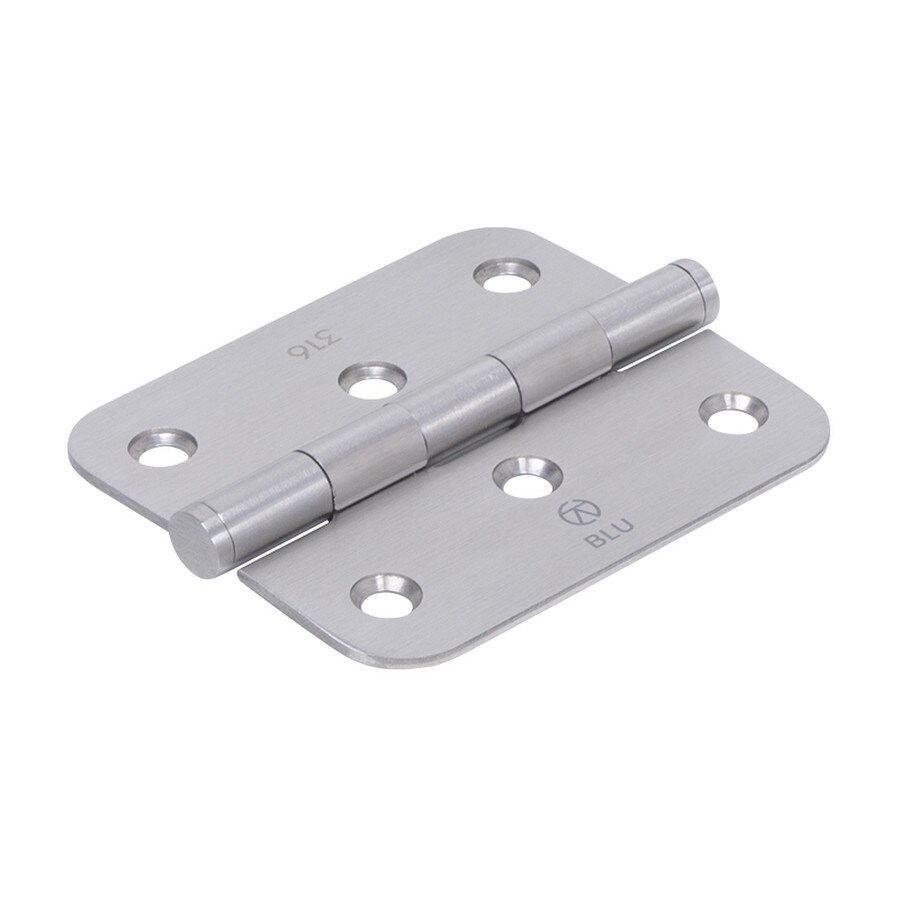

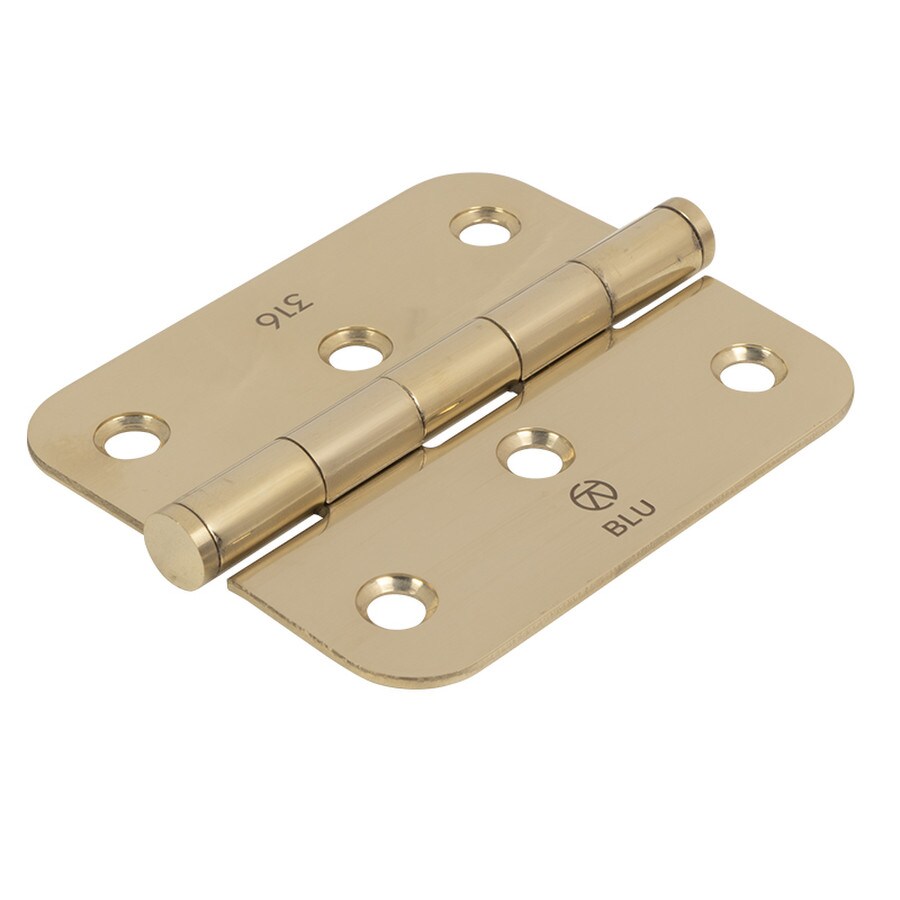

HY3R Blu Stainless Steel Slim Knuckle Window Hinge - Radius Corner

SKU: BLU Slim Knuckle Window Hinge - Radius Corner

Description

  • Ultimate high quality stainless steel butt hinge with rounded corners.
  • Often used on edge of the window that ‘butts’ against the frame.
  • Clean lined, slim triple knuckle hinge with a 3mm gap.
  • Made from 316 Marine Grade Stainless Steel.
  • No leaf play ensures an accurate and consistent fit.
  • Tested to BS EN 1935:2002 Grade 6 - 25,000 cycles.
  • Works well with the Shimwell Hinge Packer System.
  • Ideal for use where corrosion levels are high such as coastal environments and with acidic timber.

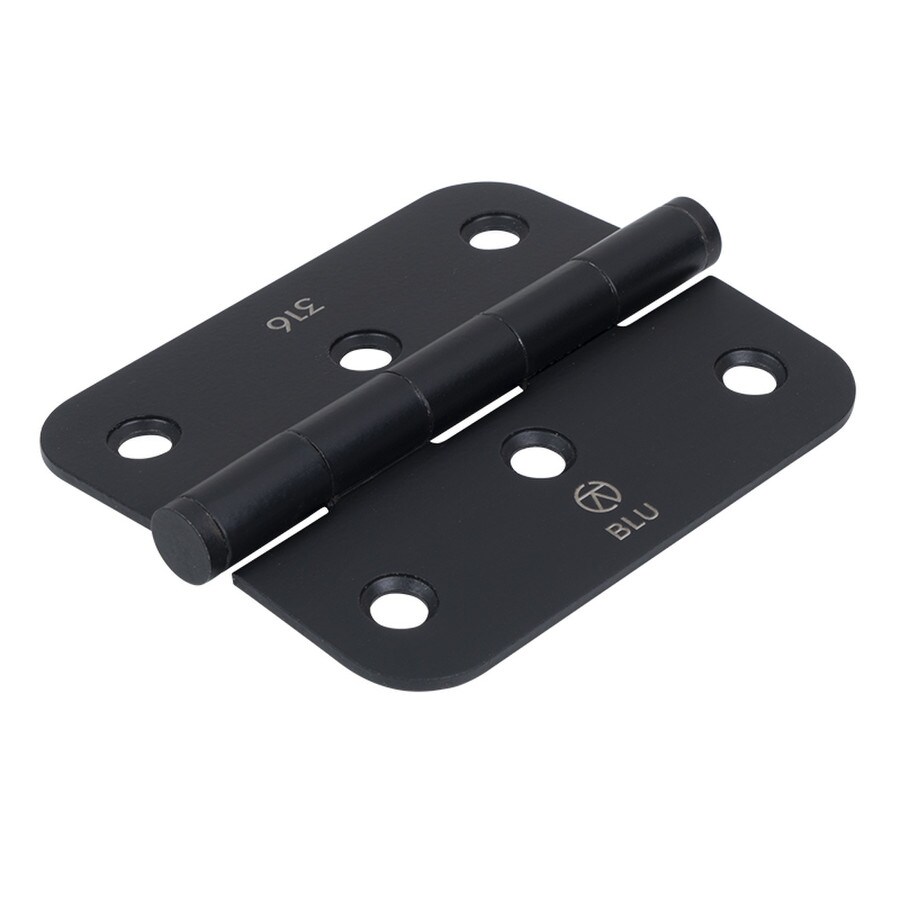

  • Matt Black hinges do not come with fixing screws, use code FX-CF4030-SS-MSB.

Videos

Specifications

  • Guarantee:Lifetime (Except on MSB- finish guarantee is 15 Years)
  • Test:BS EN 1935:2002 Grade 6 - 25,000 cycles
  • Weight Capacity:40kg over 2 hinges

Documentation
