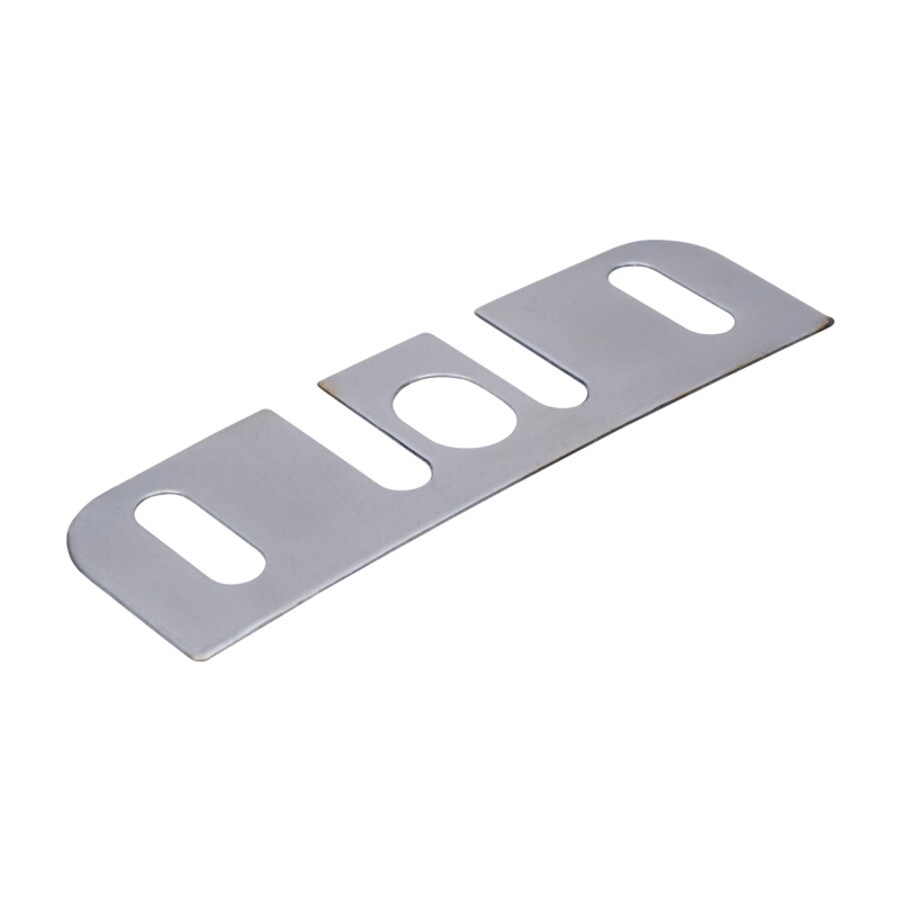

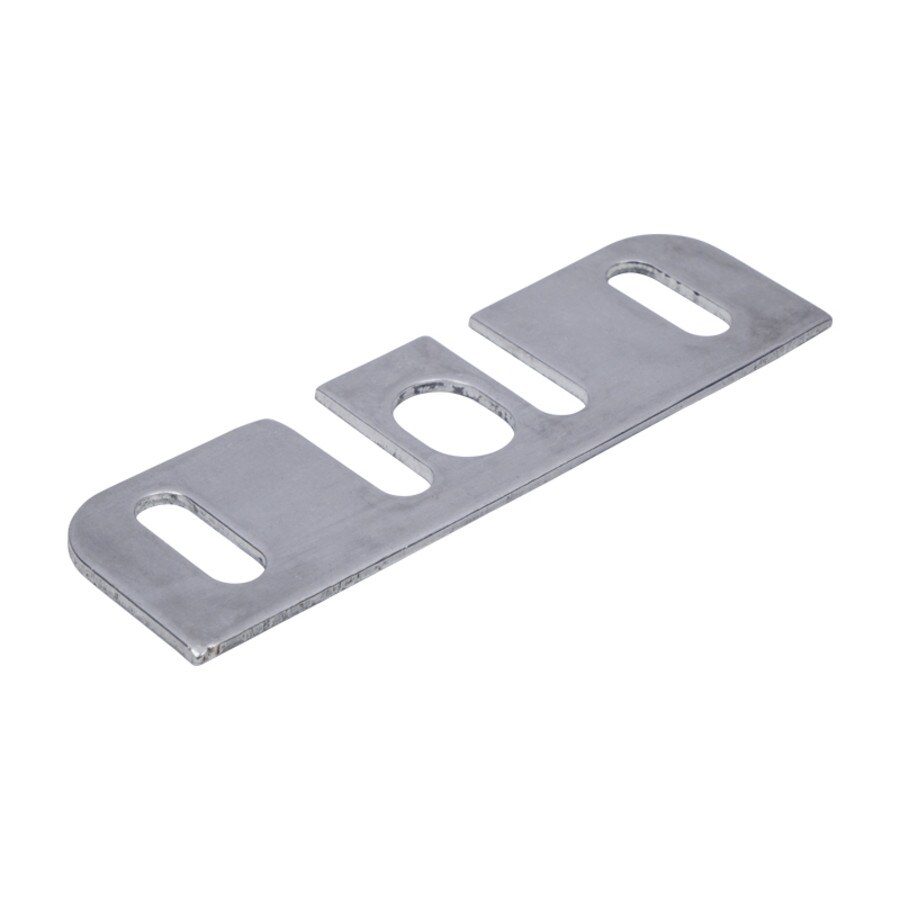

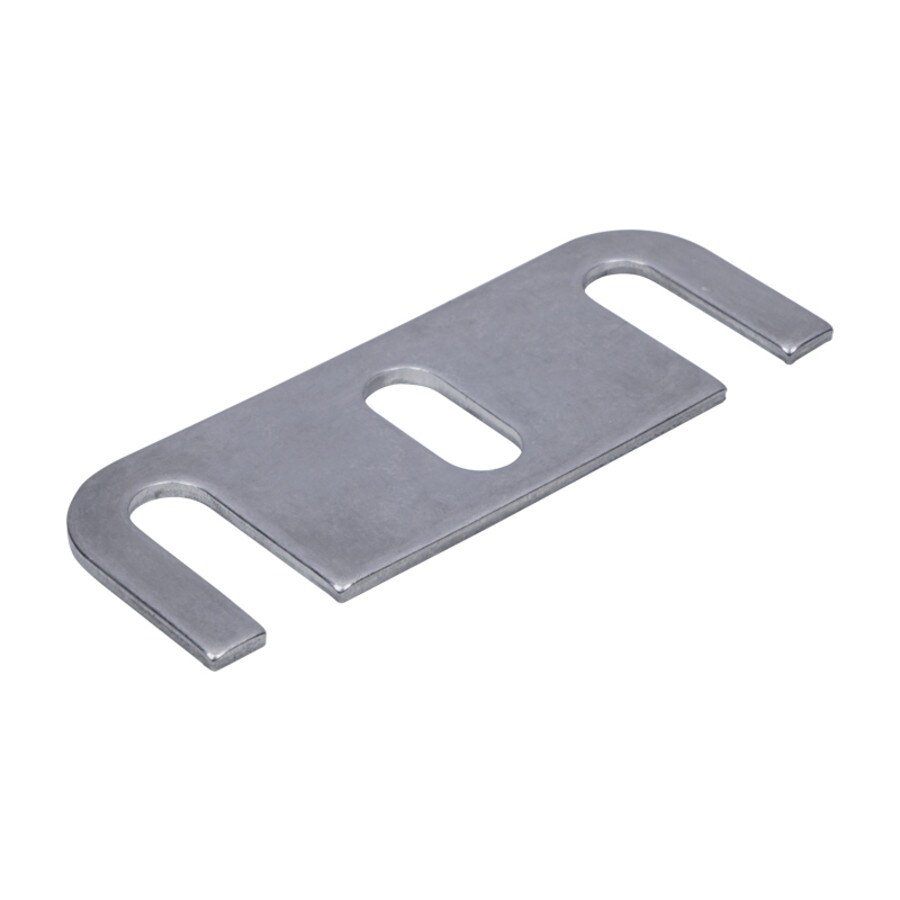

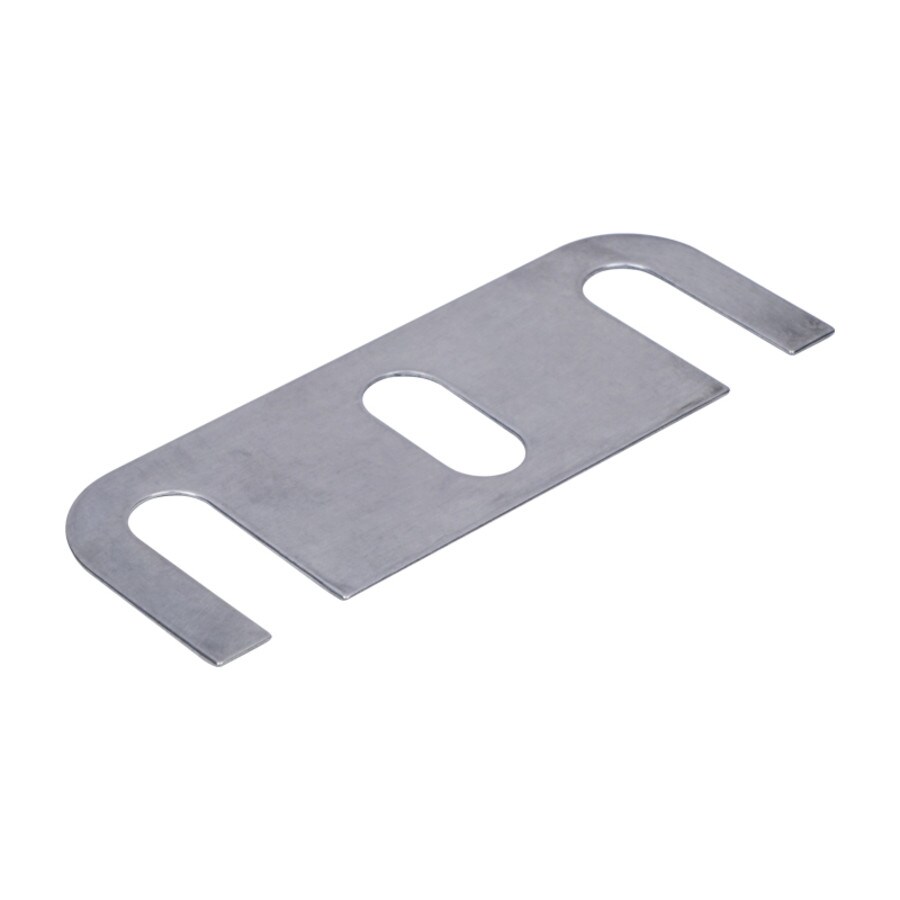

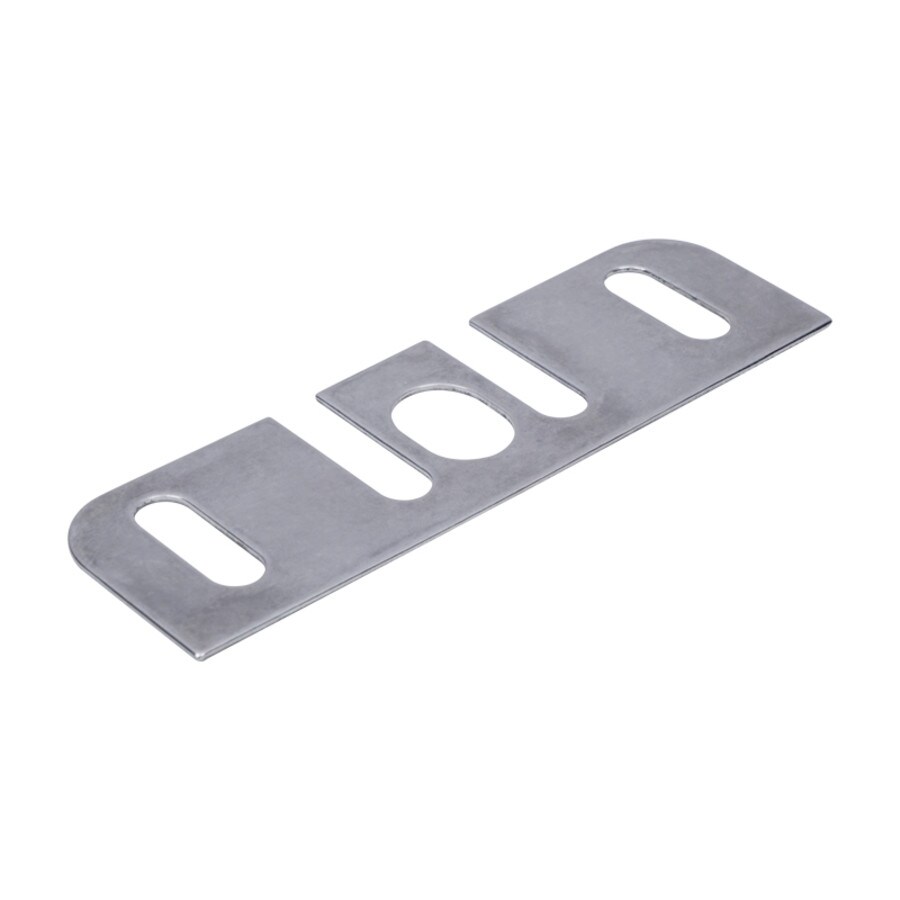

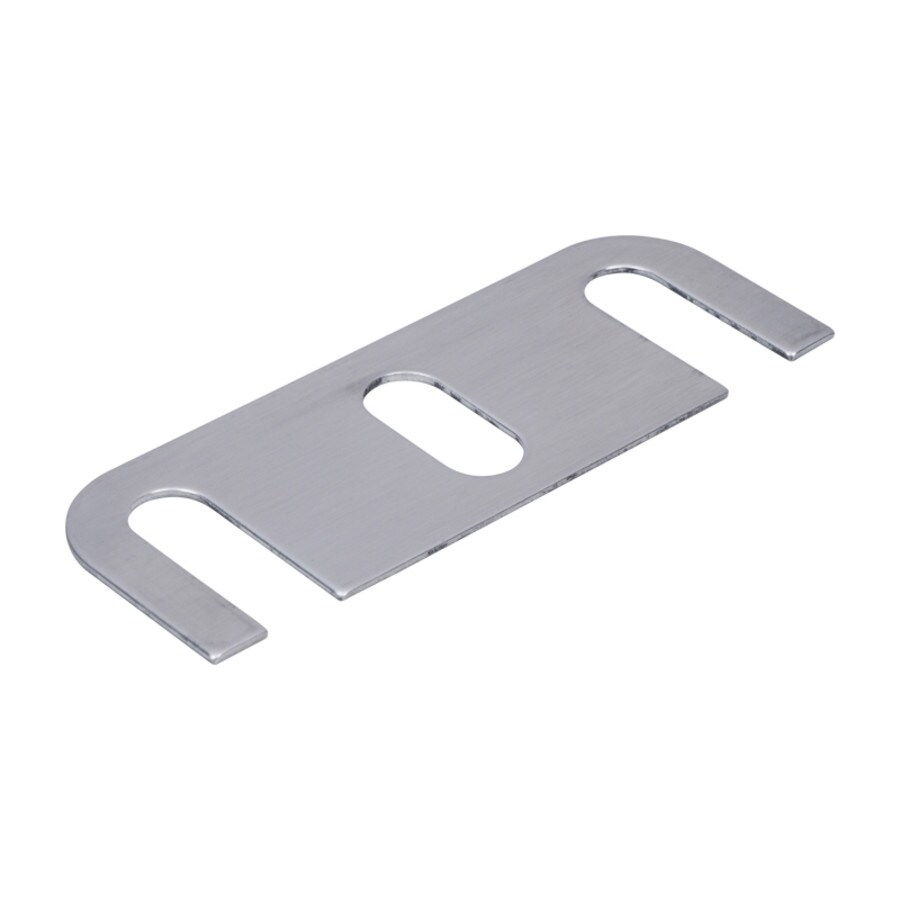

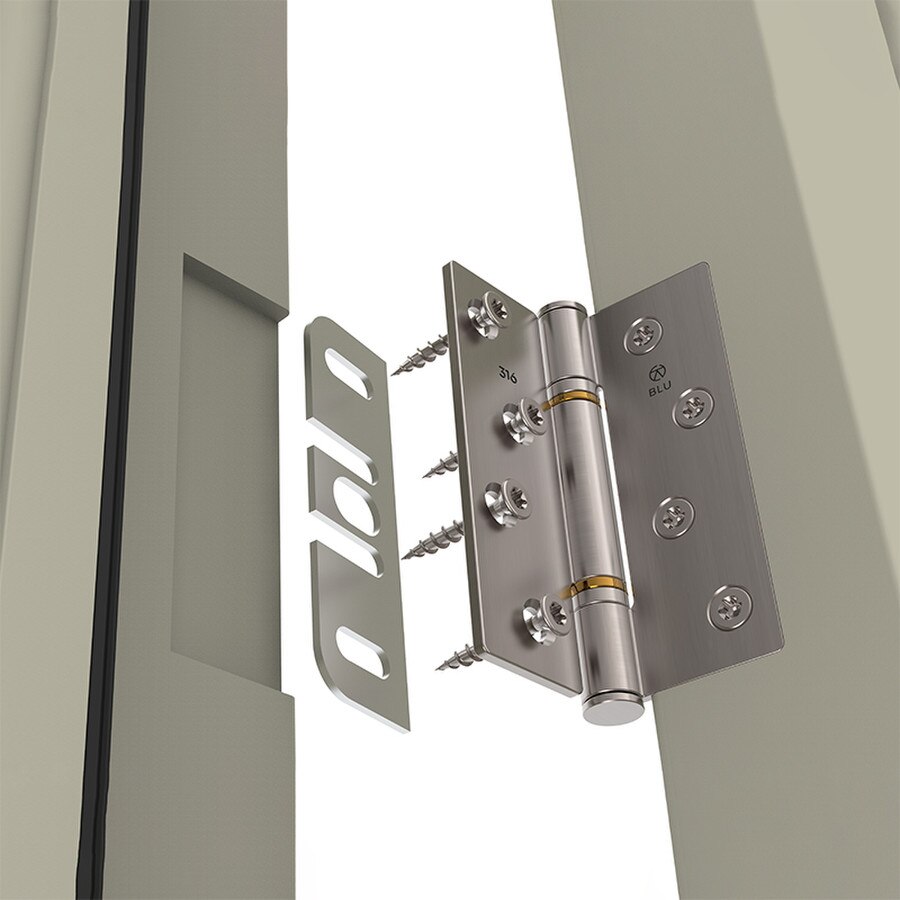

HQ Shimwell 316 Stainless Steel Hinge Packers SKU: BLU Shimwell Hinge Packers In Stock 26154 Available Pinit Download Image Please select from the options below: Compatibility : HQ4/HQ45 Hinges HY3 Hinges Size : 101 x 30 x 0.5mm 101 x 30 x 1.0mm 101 x 30 x 2.0mm 75 x 27 x 0.5mm 75 x 27 x 1.0mm 75 x 27 x 2.0mm Finish : USS - Unfinished Stainless Steel Pack of 50 Quantity discounts available QuantityPrice Quantity -+ £0.43 to £0.85(EX.VAT) Add to Basket Login to your account DescriptionShimwell™ hinge packers are suitable for use with the blu HY3, HQ4 & HQ45 hinge variants, available in 316 stainless steel.Traditionally, a piece of cardboard (or worse) is used to pack behind the hinge when installing an external door or correcting a jamb that is out of alignment. However, materials such as cardboard compresses, causing the door to migrate, sag, and bind in the jamb.Shimwells™ are always installed by the joiner when initially fitting the door, and make it easy to adjust the door when the door swells and ends the inconvenience of having to plane the door down to release the bind. Simply loosen the hinge screws, and remove the 0.5mm, 1mm, or 2mm Shimwells™ to bring the door back into alignment.Each Shimwell™ moves the hinge pin in between 0.5 – 2.0mm and can be used in pairs to create a larger shim to suit more severe gaps, sold in pack sizes of 50.The 75x27mm packers are used with the HY3/HY3R window hinges, the 101x30mm packers are used with the HQ4/HQ4R/HQ45 door hinges.Videos1SpecificationsFixings:Not SuppliedGuarantee:LifetimeDocumentationTechnical DWG Drawing: DownloadTechnical PDF Drawing: DownloadData Card: Download
